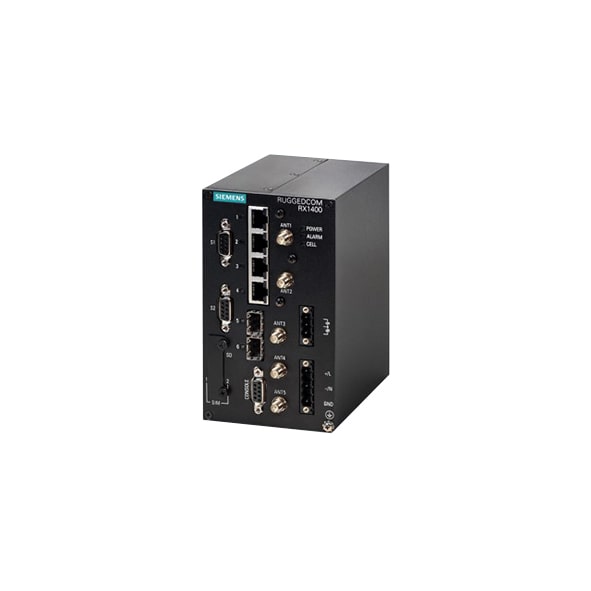

SIEMENS RUGGEDCOM RX1400 Cellular Router

SIEMENS RUGGEDCOM RX1400 Cellular Router
SIEMENS RUGGEDCOM RX1400 Cellular Router

  • Integrated power supply
  • 4 x 10/100BASE-TX, 2 x 1000BASE-X SFP
  • Optional 2 R-SMA interface for WLAN interface (Access Point/Client)
  • Optional LTE 4G cellular modem
  • Optional virtual machine environment
  • Part number family: 6GK6014-0AM2

  • Brand: SIEMENS
  • Model: RUGGEDCOM RX1400
0 reviews • Write a review
Datasheet
  • Factory Automation
  • Power Utility
  • Oil & Gas
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RM1224 Cellular Router
Quickview
SIEMENS RUGGEDCOM RM1224 Cellular Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM VPE1400 Cellular Router
Quickview
SIEMENS RUGGEDCOM VPE1400 Cellular Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM WIN5100 vehicular subscriber unit
Quickview
SIEMENS RUGGEDCOM WIN5100 vehicular subscriber unit
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM WIN5100-V enhanced vehicular subscriber unit
Quickview
SIEMENS RUGGEDCOM WIN5100-V enhanced vehicular subscriber unit
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM WIN5200 outdoor subscriber unit
Quickview
SIEMENS RUGGEDCOM WIN5200 outdoor subscriber unit
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM WIN7000 high power base station
Quickview
SIEMENS RUGGEDCOM WIN7000 high power base station
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM WIN7200 standard power base station
Quickview
SIEMENS RUGGEDCOM WIN7200 standard power base station
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

As a cellular router, the RUGGEDCOM RX1400 eliminates the need for multi-device solutions to achieve the needed interface, switching, routing and application hosting capabilities. In addition to providing IP40 protection, it requires no internal fans for cooling to operate reliably in an extended temperature range of -40° C to +85° C.


You can place an order for the SIEMENS RUGGEDCOM RX1400 Cellular Router online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

3g modem : Interface
Memory card slot for storage No
MicroUSB No
SIM card slot No
WAN Yes
Ethernet Ports Yes : 4 x RJ45 ports
USB No
FXO / FXS No
DSL No
Digital Input and Output No
Serial port Yes : 2 ports
Alert Output -
3g modem : Radio specifications
Standards and Wireless Standards -
2G , 3G , 4G Standards GPRS, eGPRS, HSPA+, GSM, UMTS, CDMA, EV-DO, LTE
WiFi Antenna Yes : 2 R-SMA
4G / 3G / 2G Antenna Yes : 3 SMA
WiFi Gain Antenna -
4G / 3G / 2G Gain Antenna -
Maximum WiFi data transfer speed -
Maximum data transfer speed of 2G 85.6 kbps DL, 85.6 kbps UL
Maximum data transfer speed of 3G 14.4 Mbps DL, 5.76 Mbps UL
Maximum data transfer speed of 4G 100 Mbps DL, 50 Mbps UL
WiFi Radio Frequency for 2.4 GHz band : 2.41 GHz; 2.48 GHz, for 5 GHz band : 4.9 GHz, 5.8 GHz
2G network frequency 850 MHz, 900 MHz, 1800 MHz, 1900 MHz
3G network frequency 900 MHz, 1800 MHz, 2100 MHz
4G network frequency 800 MHz, 900 MHz, 1800 MHz, 2100 MHz, 2600 MHz
Number of radio channels -
Maximum direct range -
Maximum WiFi Output Power -
Radio Channel Bandwidth -
3g modem : Software Specifications
VPN No
Firewall No
WPS No
Cloud computing feature Yes : Cloud connection via MQTT, device connection via S7 or Modbus TCP communication. Support for 10 devices and up to 1000 data points. Built in trigger management.
Serial performance RAW socket mode for any serial protocols
Management CLI, web-based management, MIB support, RMON
3g modem : General
Operating mode Ethernet switch and TCP/IP router
3g modem : Features and capabilities
3G phone calls No
Send and receive SMS No
3g modem : Security
Security and Encryption ACL - MAC-based, IEEE 802.1x (radius), broadcast/multicast/unicast limiter, blocking of communication via physical ports, SSH, port-rate-limiting
Authentication RFC1334-PPP
Serial security -
SSID Yes : 2 SSIDs
3g modem : Power Requirements
Power Consumption (Output Adapter) 9 to 36 VDC, 36 to 72 VDC, 98 to 300 VDC, 88 to 264 VAC
POE Support No
Battery No
Type of power input 6-pole terminal block, permanently installed, screw contact
3g modem : Buttons
Power button -
3G / WAN button -
WPS button No
Reset -
3g modem : LED Indicators
Phone No
SMS No
WLAN -
4G / 3G / 2G -
WAN -
Power -
Internet -
Wireless Signal Strength -
WPS No
3g modem : Physical Characteristics
Dimensions 88 x 120 x 150mm
Weight 2.5 kg; Weight depends on selected options
Operating Temperature -40 to 85°C
Storage Temperature -
Type of Use Industrial environment
Standards and Certifications safety, CSA, UL, CE, laser protection class, IEC 61850-3, IEEE 1613, EMC
