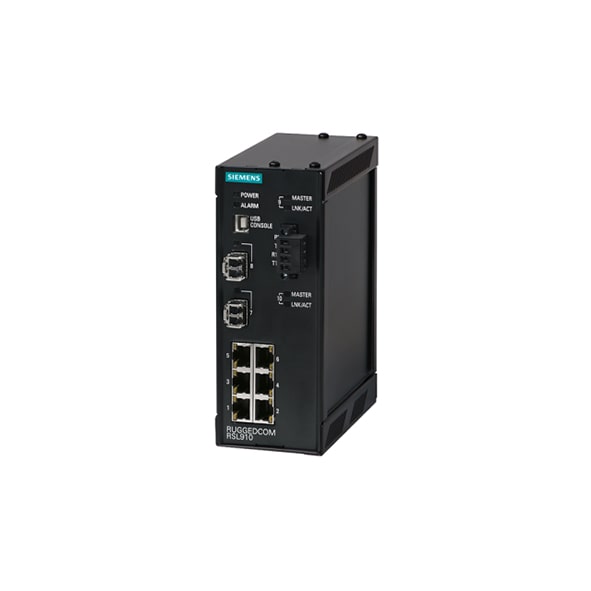

The RUGGEDCOM RSL910 VDSL modem offers the flexibility to
use legacy copper or optical infrastructure in harsh environments with two
EoVDSL2 uplinks and two SFP uplinks.
The RUGGEDCOM RSL910 is a rugged 10-port managed Ethernet a switch which supports Ethernet over VDSL2 (EoVDSL2) and allows up to 2.9 km LAN
segments over the telephone-grade cable at up to 85 Mbps with optional SFP slots
supporting Gigabit and Fast Ethernet.
The RUGGEDCOM RSL910 helps to achieve cost efficiency by
making it possible for rail and road operators to reuse existing copper cabling
and achieve broadband speeds between equipment cabinets. Legacy systems can
thus be tapped to run modern Ethernet-based applications, which enable
reliable, low latency connectivity to control centers.
It is also approved and certified for use in transportation applications (EN50121-4, EN50121-3, EN 45545-2, and NEMA TS2).
You can place an order for the SIEMENS RUGGEDCOM RSL910 VDSL Modem online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| switch and hub : Interface | |
| Number of ports | 10 ports |
| 10/100Mb RJ45 (Megabit) Ports | Yes : 6 ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | No |
| 100Mb Fiber optic multi mode (Megabit) Ports | No |
| 100Mb Fiber optic single mode (Megabit) Ports | No |
| 100Mb SFP Fiber optic (Megabit) Ports | No |
| 1000Mb SFP Fiber optic (Gigabit) Ports | Yes : 2 slots |
| 10/100Mb (Megabit) POE Ports | No |
| 10/100/1000Mb (Gigabit) POE Ports | No |
| Other ports | Yes : 2 VDSL2 ports |
| switch and hub : LED Indicators | |
| LED Per Port | Yes |
| Power | Yes |
| switch and hub : Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 10 to 36 VDC, 36 to 72 VDC, 88 to 300 VDC, 85 to 264 VAC |
| Power Input Plugin ( Redundant ) | - |
| switch and hub : General | |
| Fan / Fanless | Fanless |
| MTBF | - |
| switch and hub : Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | Yes |
| switch and hub : Physical Characteristics | |
| Dimensions | 124.7 x 187.96 x 66.15mm |
| Housing | 20 AWG galvanized steel enclosure |
| Installation | 35 mm DIN rail mounting, wall mounting |
| Operating Temperature | -40 to 85° C |
| Operation Humidity | - |
| Standards and Certifications | EMC, IEC 61850, IEEE 1613, safety, CSA, UL, NEMA TS 2 |
| Storage Humidity | - |
| Storage Temperature | - |
| Weight | 1134 g |
| switch and hub : Standards and protocols | |
| Protocols and work standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3x, IEEE 802.1d-MAC Bridges, IEEE 802.1d-STP, IEEE 802.1p-class of service, IEEE 802.1Q-VLAN tagging, IEEE 802.1Q-2005 (formerly IEEE 802.1s) MSTP, IEEE 802.1w-RRST, IEEE 802.1x-port based Network Access Control, RFC768-UDP, RFC783-TFTP, RFC791-IP, RFC792-ICMP, RFC793-TCP, RFC826-ARP, RFC854-Telnet, RFC894-IP over Ethernet, RFC1112-IGMPv1, RFC1519-CIDR, RFC1541-DHCP (client), RFC2068-HTTP, RFC2236-IGMPv2, RFC2284-EAP, RFC2475-Differentiated Service, RFC2865-RADIUS, RFC3414-SNMPv3-USM, RFC3415-SNMPv3-VACM, RFC1541-DHCP (client) |
| Protocols and management standards | DHCP, STP, RSTP, MSTP, SNTP, Telnet, HTTP, HTTPS, TFTP, IGMP, VLAN, GVRP, eRSTP |
| switch and hub : Package Checklist | |
| Hardware installation guide | Yes |
| Power adapter | - |
| Power cable | - |
