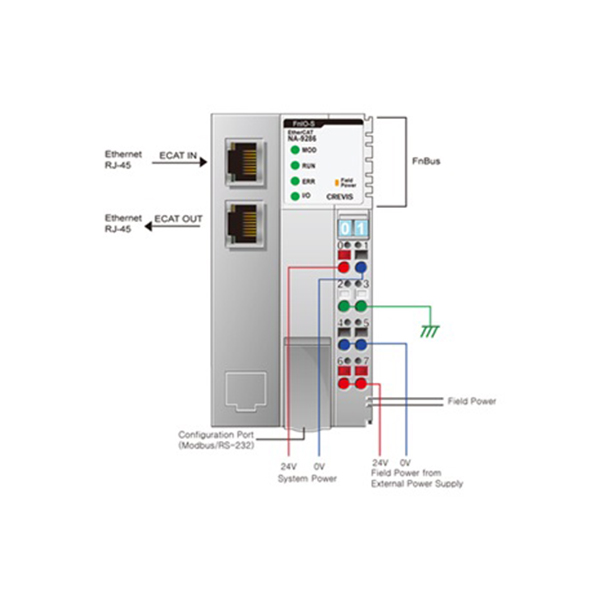

Beijer NA-9286 Network Adapter Module

Beijer NA-9286 Network Adapter Module
Beijer NA-9286 Network Adapter Module

  • EtherCAT slave
  • 2 x Ethernet 10/100 MBPS
  • Up to 63 expansion modules

  • Brand: BEIJER
  • Model: NA-9286
0 reviews • Write a review
  • Factory Automation
  • Power Utility
  • Marine
  • Railway Transportation
  • Road Transportation
  • Water & Wastewater
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

Beijer NA-9373 is a Network Adapter Module with 2 ethernets RJ45 ports.


You can Buy the NAME via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Beijer module : Communication serial
Serial interface No
Serial protocol No
Serial baud rate No
Beijer module : Communication ethernet
Ethernet baud rate 10/100 MBPS
Ethernet interface 2xRJ45
Ethernet protocol EtherCAT
Beijer module : System
Program memory -
Non volatile memory -
Real-time clock -
Real-time clock accuracy -
Max expansion modules 63 slots
Maximum input size 252 bytes
Maximum output size 252 bytes
Web server -
Diagnostic -
Module error -
Beijer module : Power Requirements
Supply voltage 24 VDC (11 - 28.8 V)
Current consumption 100 mA @ 24 VDC
Power connector Removable terminal block, cage clamp
Power supply protection Reverse polarity protection
Field power detection 11 VDC
Field power voltage 24 VDC (11 to 28.8V)
Beijer module : Physical Characteristics
Mechanical size 54 mm x 99 mm x 70 mm
Module weight 167 g
Mounting 35mm DIN rail
System indicators Module Green/Red, Run Green, Error Green/Red, I/O Red, Field Power Green, Ethernet Link Yellow
Humidity 5-90% non-condensing
Operating temperature -20° to + 60°C
Storage temperature -40° to + 85°C
Marine No
