Unit is internally fused (fuse not accessible). For external fusing of unit and for input line protection, use circuit breaker with B-characteristic 10A or slower action, or alternatively T10A HBC fuse.
Overload Behaviour:

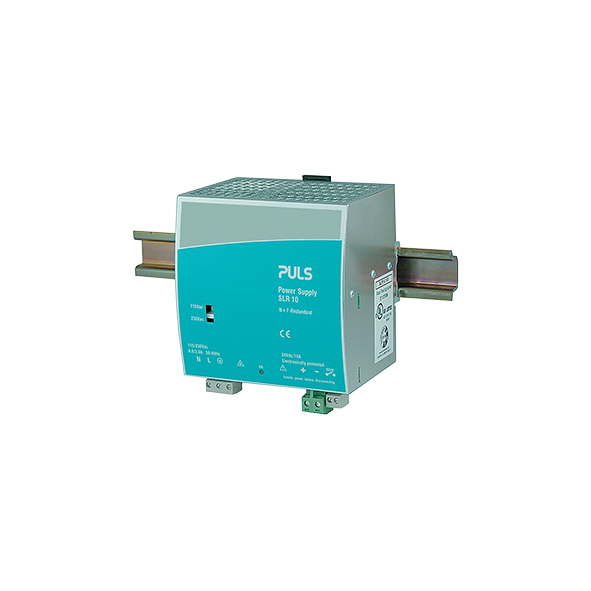

You can place an order for the PULS SLR10.108 Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| Power supply : Input Data | |
| AC-Input Voltage | AC 100-120/210-240V |
| DC-Input Voltage | - |
| EN61000-3-2(PFC-Norm) | not fulfilled |
| Power supply : Output Data | |
| nominal Voltage | 24Vdc |
| Adjustment Range | 24c |
| Output Current Range | 8A |
| Output Current | 8A at 24V |
| Output Power | 196W |
| max. Ripple and Noise Voltage | 30mVpp |
| Power supply : Physical Characteristics | |
| Dimension | 120mm x 124mm x 102mm |
| Weight | 980g |
| Mounting | DIN-Rail |
| Operating Temperature | 0°C ... +70°C |
| MTBF | 390.000h |
| Power supply : General | |
| Efficency, typ. | 90,0% |
| Power Losses, typ. | 21,3W |
| Connection method | plug connector |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| Power supply : Package Checklist | |
| Packaging Unit | 1pc |
