Description
Design advantages:
- All connection blocks are easy to reach as mounted at the front panel.
- Input and output are strictly apart from each other and so cannot be mixed up (Input below, output above).

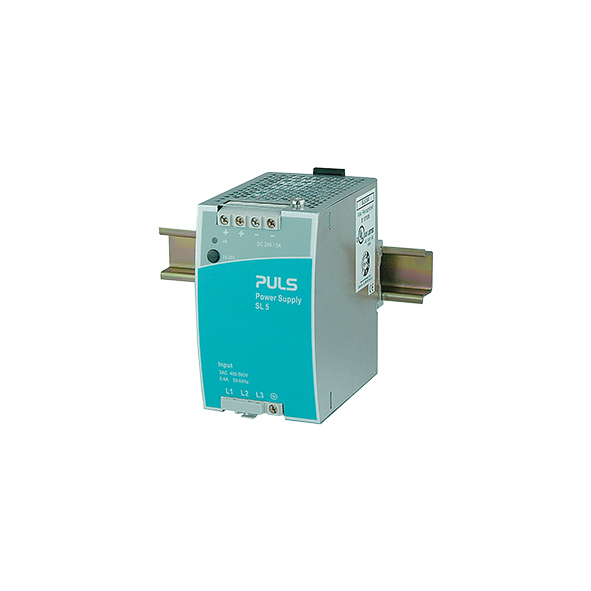

You can place an order for the PULS SL5.300 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
Input Data | |
---|---|
AC-Input Voltage | AC 400-500V |
DC-Input Voltage | DC 600V (-25%/+37%) |
EN61000-3-2(PFC-Norm) | fulfilled |
Output Data | |
nominal Voltage | 24Vdc |
Adjustment Range | 24-28V |
Output Current Range | 5-4.3A |
Output Current | 4.3A at 28V, 5A at 24V |
Output Power | 120W |
max. Ripple and Noise Voltage | 25mVpp |
Physical Characteristics | |
Mounting | DIN-Rail |
Dimension | 73mm x 124mm x 117mm |
Weight | 730g |
General | |
Connection method | Screw terminals |
E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
Package Checklist | |
Packaging Unit | 1pc |
