Description
Inrush current limiting done with a fixed 23R resistor (not a thermistor) which is bridged after the unit is running, so losses are minimized. That means no reset time even at a warm-start.
To be fused with a 3 x 10A, B-type 'circuit-breaker' switch based on the usual thermomagnetic overload sensing principle (used anyway to fuse the input lines; unit has no internal fuses).
Design advantages:
- All connection blocks mounted on front panel for ease of access.
- PVC insulated cable can be used for all connections, as the connection blocks are mounted in the cooler area on the underside of the unit.
- Power density: 230 W per litre housing volume.

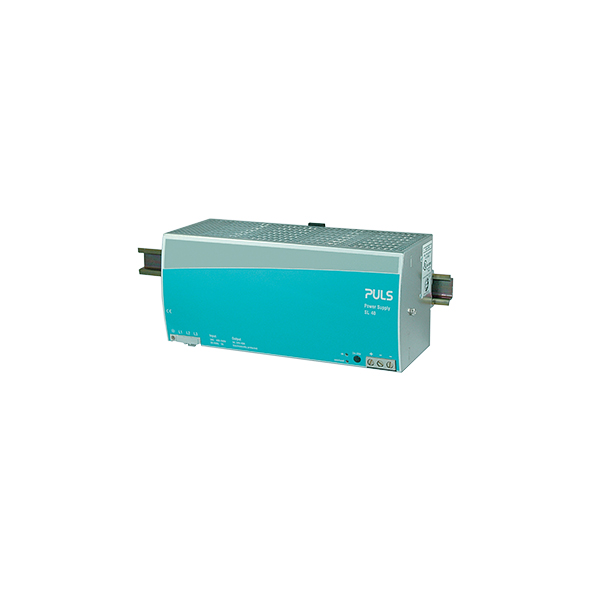

You can place an order for the PULS SL40.300 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
Input Data | |
---|---|
AC-Input Voltage | AC 400-500V |
DC-Input Voltage | - |
EN61000-3-2(PFC-Norm) | fulfilled |
Output Data | |
nominal Voltage | 24Vdc |
Adjustment Range | 24-28V |
Output Current Range | 40-34.3A |
Output Current | 34.3A at 28V, 40A at 24V |
Output Power | 960W |
max. Ripple and Noise Voltage | 50mVpp |
Physical Characteristics | |
Mounting | DIN-Rail |
Dimension | 275mm x 124mm x 117mm |
Weight | 3300g |
General | |
Connection method | Screw terminals |
E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
Package Checklist | |
Packaging Unit | 1pc |
