Description
This compact power supply unit is characterised by the variety of possibilities of application and low system costs. The fact that the external fuses are no longer necessary is an advantage as it saves cost and space. The switchable Fuse Mode and the extremely comprehensive approvals package including EN60204 make the SL20.310 the unit of choice.
At a competitive price, it also offers 25A power boost, output noise suppression, optional Single Mode or Parallel Mode, small dimensions, more than 500,000h MTBF as well as easy installation. The unit can be connected to European and American power supply networks without switching.

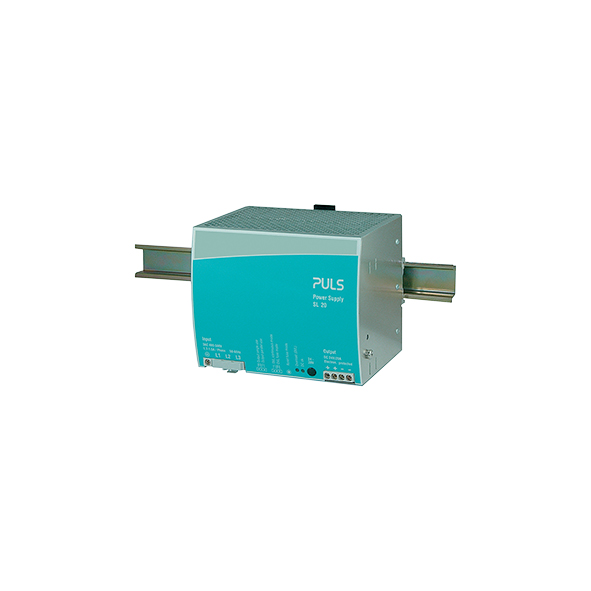

You can place an order for the PULS SL20.310 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
| Input Data | |
|---|---|
| AC-Input Voltage | AC 400-500V |
| DC-Input Voltage | - |
| EN61000-3-2(PFC-Norm) | fulfilled |
| Output Data | |
| nominal Voltage | 24Vdc |
| Adjustment Range | 24-28V |
| Output Current Range | 20-18A |
| Output Current | 18A at 28V, 20A at 24V |
| Output Power | 480W |
| Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 150mm x 124mm x 121mm |
| Weight | 1800g |
| General | |
| Connection method | Screw terminals |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| Package Checklist | |
| Packaging Unit | 1pc |
