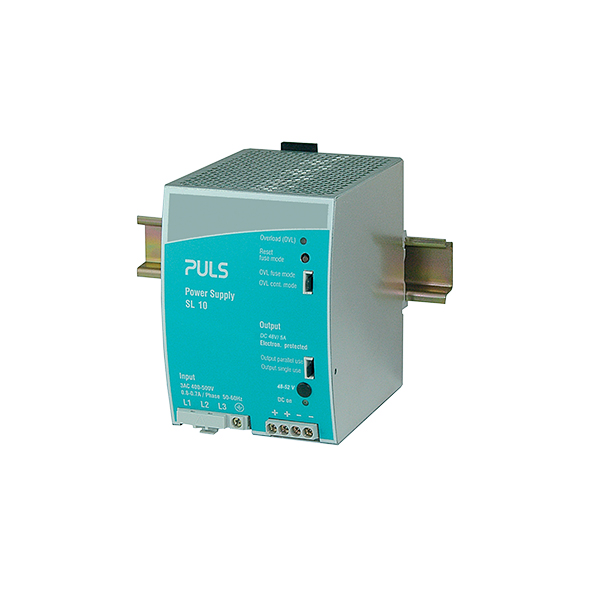

PULS SL10.305 DIN-rail Power supply
- 400-500V Wide-range input
- Efficiency up to 93,8%
- Adjustable to parallel mode for load sharing
- 20% Power reserves for loads with a higher short-term power
requirement
- Full output power between 0 and +60°C
- Adjustable to FUSE-MODE which switches unit off at overload
Description
This compact power supply unit is characterised by the variety of application possibilities and low system costs. The fact that the external fuses are no longer necessary is an advantage as it saves cost and space. The selectable FUSE Mode and the fully specified 2-phase operation make the SL10.305 the unit of choice.
At a competitive price, it also offers 6A power boost, 9-14A short circuit current, output noise suppression, selectable Single Mode or Parallel Mode, small dimensions and easy installation. Due to its wide range input the unit can be connected to 3-phase electricity networks worldwide without switching.
You can place an order for the PULS SL10.305 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
| Input Data | |
|---|---|
| AC-Input Voltage | AC 400-500V |
| DC-Input Voltage | - |
| EN61000-3-2(PFC-Norm) | fulfilled |
| Output Data | |
| nominal Voltage | 48Vdc |
| Adjustment Range | 48-52V |
| Output Current Range | 5-4.6A |
| Output Current | 4.6A at 52V, 5A at 48V |
| Output Power | 240W |
| Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 89mm x 124mm x 117mm |
| Weight | 980g |
| General | |
| Connection method | Screw terminals |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| Package Checklist | |
| Packaging Unit | 1pc |
