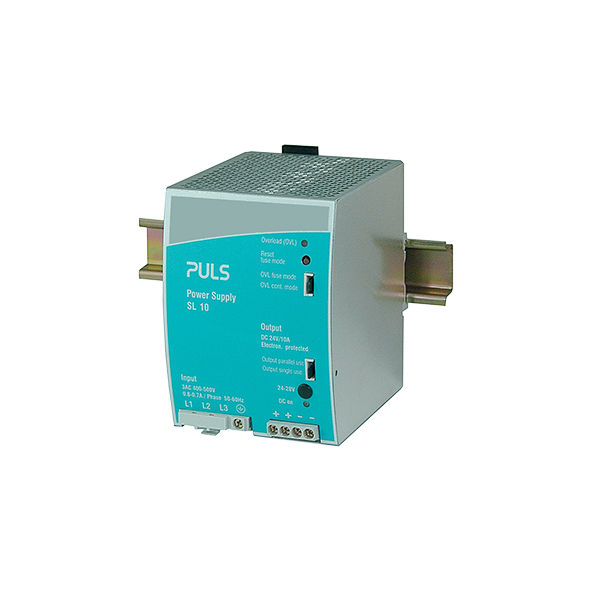

PULS SL10.300 DIN-rail Power supply
- 400-500V Wide-range input
- Efficiency up to 91,9%
- Adjustable to parallel mode for load sharing
- 20% Power reserves for loads with a higher short-term power
requirement
- Full output power between 0 and +60°C
- Adjustable to FUSE-MODE which switches unit off at overload
Description
This compact power supply unit is characterised by the variety of possibilities of application and low system costs. The fact that the external fuses are no longer necessary is an advantage as it saves cost and space. The switchable Fuse Mode, the fully specified 2-phase operation and the extremely comprehensive approvals package including EN60204 make the SL10.300 the unit of choice.
At a competitive price, it also offers 12A power boost, 20A short circuit current, output noise suppression, optional Single Mode or Parallel Mode, small dimensions, more than 500,000h MTBF as well as easy installation. The unit can be connected to European and American power supply networks without switching.
You can place an order for the PULS SL10.300 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
| Input Data | |
|---|---|
| AC-Input Voltage | AC 400-500V |
| DC-Input Voltage | - |
| EN61000-3-2(PFC-Norm) | fulfilled |
| Output Data | |
| nominal Voltage | 24Vdc |
| Adjustment Range | 24-28V |
| Output Current Range | 10-8.6A |
| Output Current | 8.6A at 28V, 10A at 24V |
| Output Power | 240W |
| max. Ripple and Noise Voltage | 30mVpp |
| Physical Characteristics | |
| Mounting | DIN-Rai |
| Dimension | 89mm x 124mm x 117mm |
| Weight | 980g |
| General | |
| Connection method | Screw terminals |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| Package Checklist | |
| Packaging Unit | 1pc |
