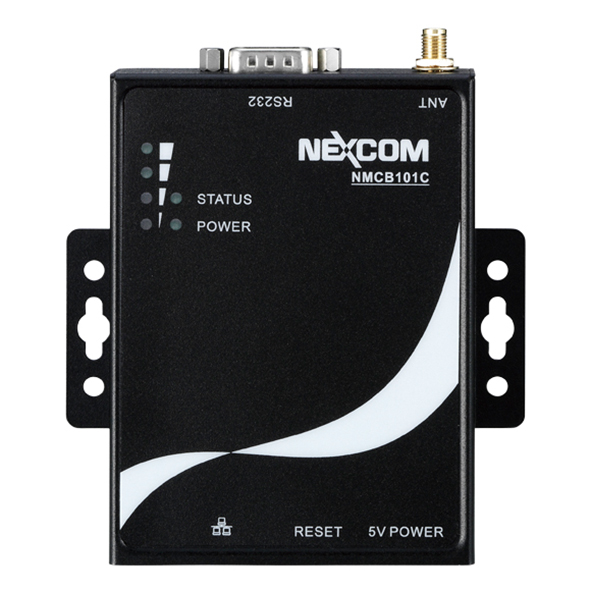

Nexcom NMCB101C IoT Gateway

Nexcom NMCB101C IoT Gateway
Nexcom NMCB101C IoT Gateway
Nexcom NMCB101C IoT Gateway
Nexcom NMCB101C IoT Gateway
Nexcom NMCB101C IoT Gateway
Nexcom NMCB101C IoT Gateway
Nexcom NMCB101C IoT Gateway

  • Industrial Wi-Fi serial/Ethernet device server
  • Support transparent mode
  • Web-based configuration
  • 9600~115200 bps baud rate for RS-232 transmissions
  • Secure data access with WPA, WPA2
  • 1 x 10/100 Fast Ethernet port
  • 2.5 Kv single isolation
  • Support 5V DC input with Micro USB connector
  • LED indicators

  • Brand: NEXCOM
  • Model: NMCB101C
0 reviews • Write a review
Datasheet
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Nexcom NIO 101 IoT Gateway
Quickview
Nexcom NIO 101 IoT Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

NMCB101C is designed for RS232 devices in industrial machines, such as medical equipment, PLC, electricity meter, and sensors. For medical equipment, we used 2.5Kv of the single isolate to make sure the single was correct and independent. The function, to convert RS232 signal into Wi-Fi or Ethernet through the NMCB101C, which achieves the purpose of application in IoT and Industry 4.0.


You can place an order for the Nexcom NMCB101C IoT Gateway, which is applicable in the Factory Automation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

serial-to-ethernet : Interface
10/100Mb RJ45 (Megabit) Ports Yes : 1
10Mbps RJ-45 Ports No
RS-232 Ports Yes : 1
RS-422/485 Ports No
RS-232/422/485 Ports No
serial-to-ethernet : Communication details
Wireless Standards 802.11 b/g/n x 1
serial-to-ethernet : General
Management Web GUI for configuration
MTBF -
serial-to-ethernet : Power Requirements
Power Consumption (Output Adapter) DC 5V with Micro USB connector
serial-to-ethernet : Features and capabilities
The automatic restart (reset) 1 X Reset/restore to default push button
Alarm feature -
serial-to-ethernet : Standards and protocols
Network protocol SNTP client (real IP, static)
serial-to-ethernet : Physical Characteristics
EMC EN 301 489-1/17, FCC Part 15 Subpart B, EN 55022/55024
EMI FCC, CE Class B, SRRC
Operating Temperature 0°C~70°C
Storage Temperature -40°C~85°C
Operation Humidity 5%~95%, non-condensing
