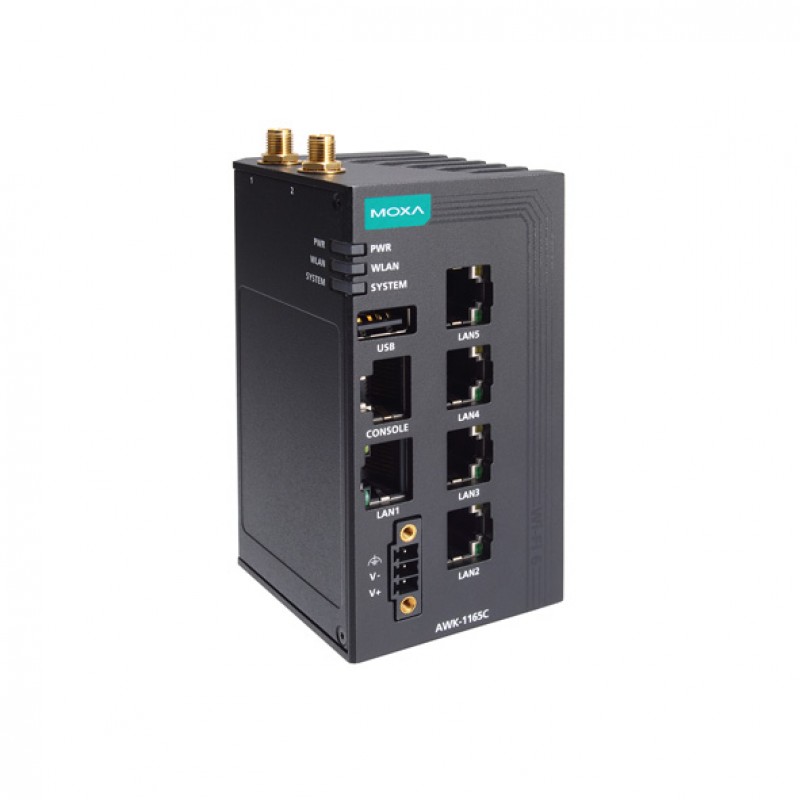

MOXA AWK-1165C-UN-T Wireless Client
- Supports UN Frequency Bands
- 5 x 10/100/1000BaseT(X) Ports (RJ45 connector)
- High-speed IEEE 802.11ax Wi-Fi
- IP30-rated Metal body design
- DIN-rail and Wall mounting
- 9 to 30 VDC input power range
- -40 to 75°C Operating temperature range
.png)
Description
The AWK-1165C Series industrial wireless client is designed
to meet the growing need for efficient data transmissions in high-density
deployment scenarios through IEEE 802.11ax (Wi-Fi 6) technology. The AWK-1165C
is compliant with industrial standards and approvals covering operating
temperature, power input voltage, surge, ESD, and vibration. The compact form
factor with DIN-rail or optional wall mounting easily fits into industrial
machines or control cabinets, offering reliable wireless connectivity. The
AWK-1165C can operate on the 2.4 or 5 GHz bands and is backward compatible with
existing 802.11a/b/g/n/ac deployments to future-proof your wireless
investments.
You can also find the AWK-1165C-UN, AWK-1165C-US, and AWK-1165C-US-T models in the WLAN AP/Bridge/Client.
Enjoy the ease of online inquiries for the MOXA AWK-1165C-UN-T Wireless Client. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| Interfaces | |
|---|---|
| 10/100/1000BaseT(X) Ports | : 5 x RJ45 Ports |
| Modulation Type | - |
| Frequency Band | 2.412 to 2.472 GHz (13 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels), 5.745 to 5.825 GHz (5 channels) |
| PoE Ports | |
| 100BaseFX Ports | |
| Wireless Security | WEP encryption (64-bit and 128-bit), WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2/WPA3-Personal |
| WLAN Antenna Connector | 2 x RP-SMA female |
| Security | HTTPS/SSL, RADIUS, SSH, Certificate Management |
| WLAN Operation Mode | Client, Client-Router, Slave, Sniffer |
| WLAN Standards | 2.4 GHz: 802.11ax with 1024 QAM support, 20/40 MHz, 5 GHz: 802.11ax with 1024 QAM support, 20/40/80 MHz |
| 1000BaseSFP Slots | |
| Transmission Rates | 2.4 GHz: Up to 573.5 Mbps, 5 GHz: Up to 1,201 Mbps |
| 10/100BaseT(X) Ports | |
| Digital Inputs | |
| Console Port | : 1 x RS-232 (8-pin RJ45 connector) |
| Serial Ports | |
| M12 Connector | |
| Power Requirement | |
| Input Current | 9 to 30 VDC, 1.57 to 0.47 A |
| Connector | 1 removable 3-contact terminal block(s) |
| Input Voltage | 9 to 30 VDC |
| Power Consumption | 14 W (max.) |
| Reverse Polarity Protection | |
| Physical Characteristics | |
| Humidity | 5 to 95% (non-condensing) |
| Dimensions Packaged | 60 x 100 x 66 mm (2.36 x 3.94 x 2.60 in) |
| Weight (PACKAGED) | 516.5 g (1.14 lb) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Standards and Certifications | EMC: EN 61000-6-2/-6-4, EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V/m, IEC 61000-4-8 PFMF: 30 A/m; Road Vehicles: E mark E1; Safety: IEC 62368-1, UL 62368-1; Vibration: IEC 60068-2-6; Radio: EN 300 328, EN 301 489-1/17, EN 301 893, ANATEL, FCC, MIC, NCC, RCM, SRRC, WPC, KC, NBTC, IC; IP30; Telcordia SR332 |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| General | |
| Management | DHCP Server, DHCP Client, DNS, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, MXconfig |
| LED Indicators | PWR, WLAN, SYSTEM |
| MTBF | 4,002,106 hrs |
| Time Management | SNTP Client |
