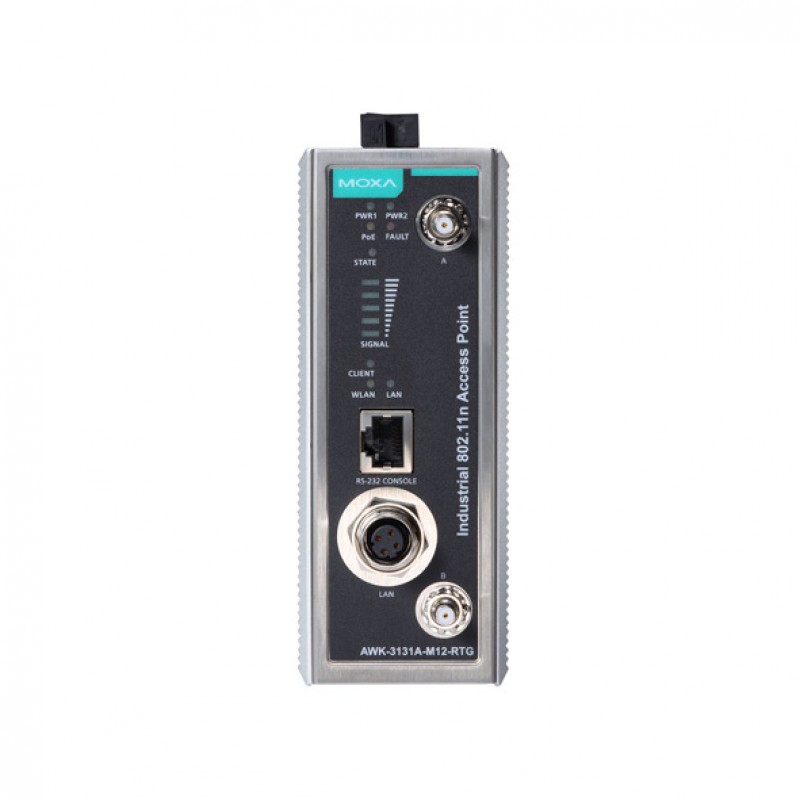

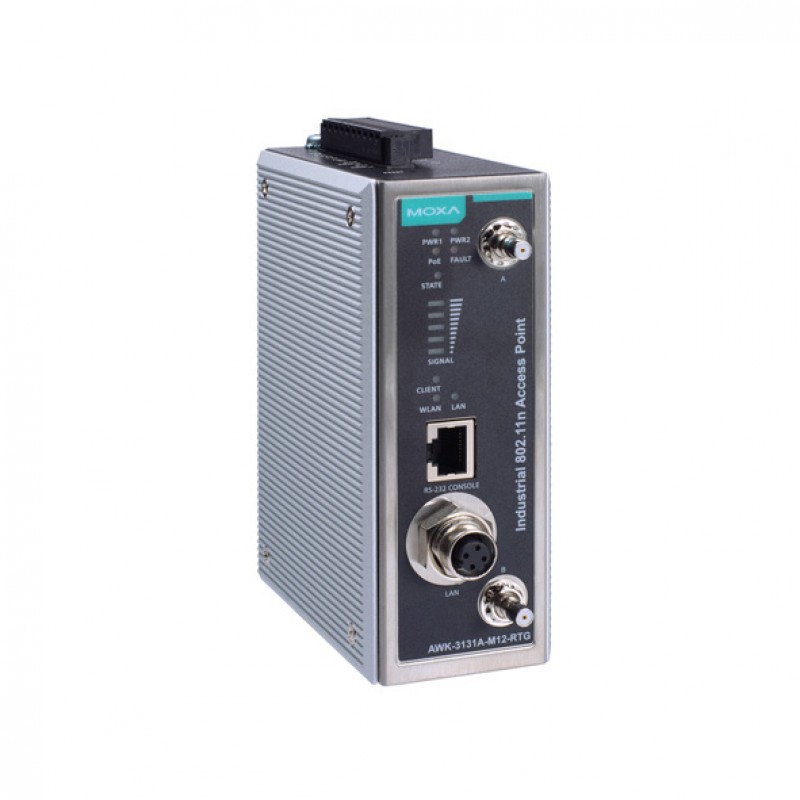

MOXA AWK-3131A-M12-RTG-JP-T Wireless Access Point

  • Supports JP Frequency Bands
  • 1 x 10/100BaseT(X) PoE Port (M12 connector)
  • 1 x 10/100BaseT(X) Port (M12 connector)
  • IEEE 802.11a/b/g/n compliant
  • 12 to 48 VDC Redundant dual inputs (48 VDC PoE)
  • DIN-rail and Wall mounting
  • IP30-rated Metal body design
  • -40 to 75°C operating temperature

Description

The AWK-3131A-RTG 2-in-1 industrial AP/client devices are designed specifically for train-to-ground communication and can perform reliably even when the trains reach a speed of 120 km/h. The AWK-3131A-RTG complies with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making the AWK-3131A-RTG suitable for a variety of industrial applications. Installation is easy, with either DIN-rail mounting or distribution boxes, and the DIN-rail mounting capability, wide operating temperature range, and IP30 housing with LED indicators make the AWK-3131A-RTG a convenient yet reliable solution for any rolling stock application.



You can also find the AWK-3131A-M12-RTG-EU-T and AWK-3131A-M12-RTG-JP-CT-T models in the Rail Wireless LAN.



Easy World Automation offers the easiest way to buy the MOXA AWK-3131A-M12-RTG-JP-T Wireless Access Point in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interfaces
10/100/1000BaseT(X) Ports
Modulation Type DSSS, OFDM, 802.11b: CCK @ 11/5.5 Mbps, 802.11b: DQPSK @ 2 Mbps, 802.11b: DBPSK @ 1 Mbps, 802.11a/g: 64QAM @ 54/48 Mbps, 802.11a/g: 16QAM @ 36/24 Mbps, 802.11a/g: QPSK @ 18/12 Mbps, 802.11a/g: BPSK @ 9/6 Mbps, 802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps
Frequency Band 2.412 to 2.484 GHz (14 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels)
PoE Ports : 1 x Port (10/100BaseT(X), M12 D-coded 4-pin female connector)
100BaseFX Ports
Wireless Security SSID broadcast enable/disable, WEP encryption (64-bit and 128-bit), WPA/WPA2-Personal, WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WLAN Antenna Connector QMA
Security RADIUS
WLAN Operation Mode Access point, Client, Client-Router, Sniffer
WLAN Standards 802.11a/b/g/n, 802.11i Wireless Security
1000BaseSFP Slots
Transmission Rates 802.11b: 1 to 11 Mbps, 802.11a/g: 6 to 54 Mbps, 802.11n: 6.5 to 300 Mbps
10/100BaseT(X) Ports : 1 x Port, M12 D-coded 4-pin female connector, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, auto MDI/MDI-X connection
Digital Inputs : 2, +13 to +30 V for state 1, +3 to -30 V for state 0, Max. input current: 8 mA
Console Port : 1 x RS-232 (RJ45-type)
Serial Ports
M12 Connector
Power Requirement
Input Current 0.85 A @ 12 VDC, 0.22 A @ 48 VDC
Connector 1 removable 10-contact terminal block(s)
Input Voltage 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Consumption Maximum 10.5 W
Reverse Polarity Protection Supported
Physical Characteristics
Humidity 5 to 95% (non-condensing)
Dimensions Packaged 52.9 x 151.9 x 127.4 mm (2.08 x 5.98 x 5.02 in)
Weight (PACKAGED) 850 g (1.87 lb)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Standards and Certifications EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8; Railway: EN 50155, EN 50121-4; Railway Fire Protection: EN 45545-2; Radio: EN 301 489-1/17, EN 300 328, EN 301 893, MIC, FCC ID SLE-WAPN008, SRRC, NCC, IDA; Safety: UL 60950-1, IEC 60950-1, EN 60950-1 (LVD); IP30; Telcordia SR332
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
General
Management General: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP, AP-only: ARP, BOOTP, DHCP, STP/RSTP (IEEE 802.1D/w)
LED Indicators PWR1, PWR2, PoE, FAULT, STATE, SIGNAL, CLIENT, WLAN, LAN
MTBF 552,454 hrs
Time Management -
