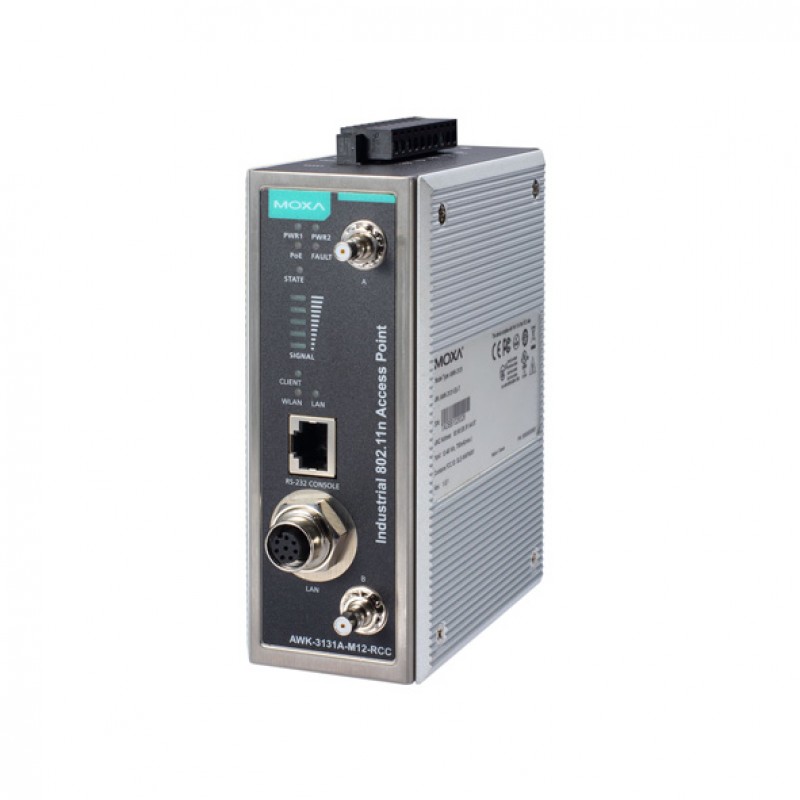

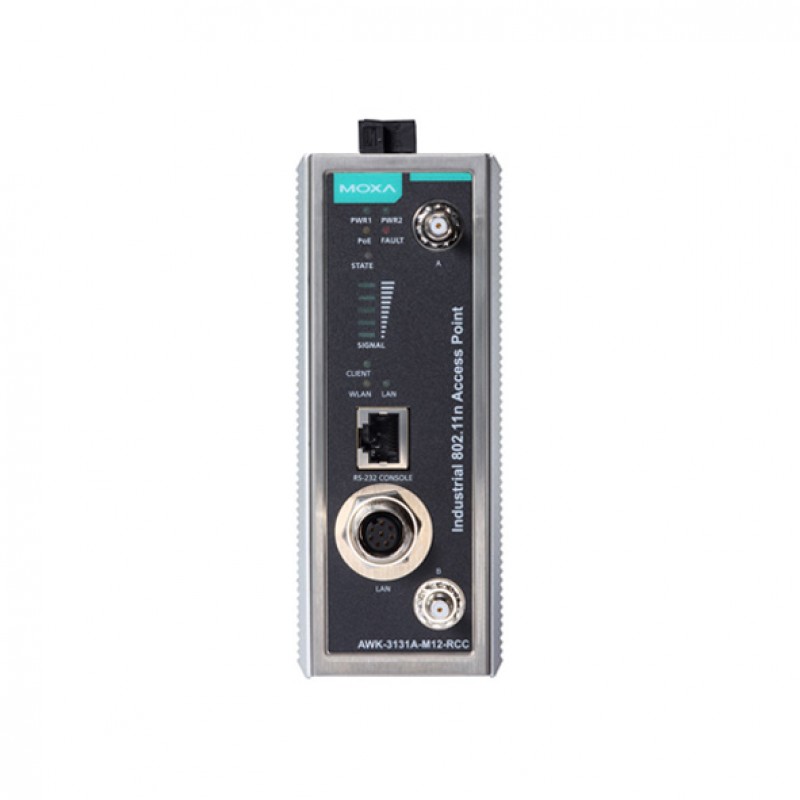

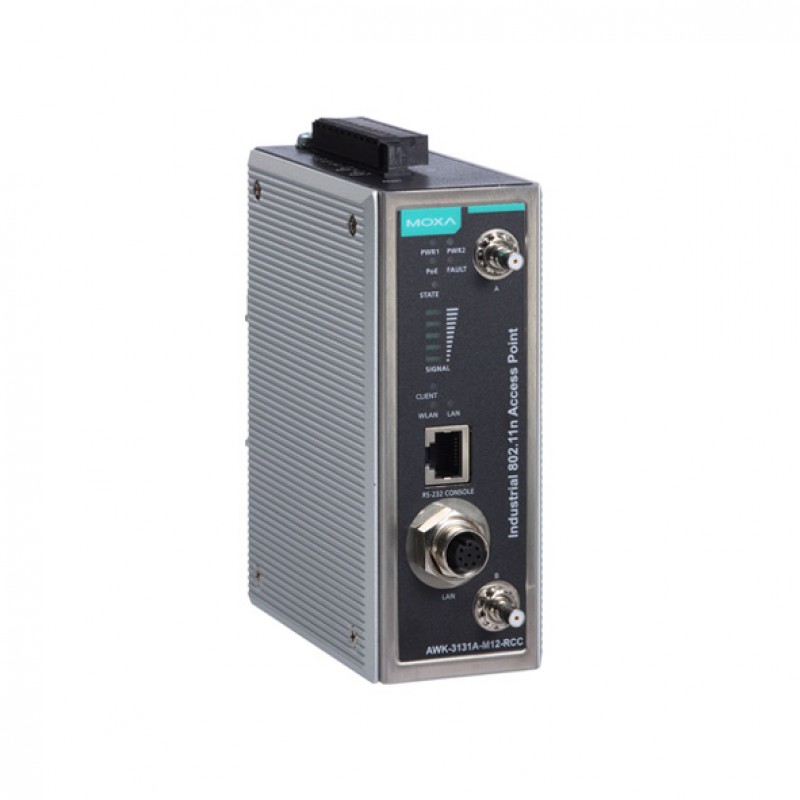

MOXA AWK-3131A-M12-RCC-JP-T Wireless AP/Client

  • Supports JP Frequency Bands
  • 1 x 10/100/1000BaseT(X) PoE Port (M12 connector)
  • 1 x 10/100/1000BaseT(X) Port (M12 connector)
  • IEEE 802.11a/b/g/n compliant
  • 12 to 48 VDC Redundant dual inputs (48 VDC PoE)
  • DIN-rail and Wall mounting
  • IP30-rated Metal body design
  • -40 to 75°C operating temperature

Description

The AWK-3131A-RCC Series industrial 802.11n wireless AP/client is an ideal wireless solution for applications such as onboard passenger infotainment systems and inter-carriage wireless backbone networks because it provides a faster data rate compared to 802.11g devices. The auto carriage connection (ACC) feature facilitates easy deployment of wireless devices and increases the reliability of wireless carriage backbone networks. The AWK-3131A-RCC Series is also optimized for passenger Wi-Fi services and complies with a portion of the EN 50155 specifications covering operating temperature, power input voltage, surge, ESD, and vibration, making the products suitable for a variety of industrial applications. The AWK-3131A-RCC Series can also be powered via the PoE port for easier deployment.



You can also find the AWK-3131A-M12-RCC-JP-CT, AWK-3131A-M12-RCC-JP-CT-T, and AWK-3131A-M12-RCC-JP models in the Rail Wireless LAN.



Explore our extensive range of industrial automation products such as MOXA AWK-3131A-M12-RCC-JP-T Wireless AP/Client in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).  Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interfaces
10/100/1000BaseT(X) Ports : 1 x Port, M12 A-coded 8-pin female connector, 10/100/1000BaseT(X) auto negotiation speed, F/H duplex mode, auto MDI/MDI-X connection
Modulation Type DSSS, OFDM, 802.11b: CCK @ 11/5.5 Mbps, 802.11b: DQPSK @ 2 Mbps, 802.11b: DBPSK @ 1 Mbps, 802.11a/g: 64QAM @ 54/58 Mbps, 802.11a/g: 16QAM @ 36/24 Mbps, 802.11a/g: QPSK @ 18/12 Mbps, 802.11a/g: BPSK @ 9/6 Mbps, 802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps
Frequency Band 2.412 to 2.484 GHz (14 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels)
PoE Ports : 1 x Port (10/100/1000BaseT(X), M12 A-coded 8-pin female connector)
100BaseFX Ports
Wireless Security SSID broadcast enable/disable, WEP encryption (64-bit and 128-bit), WPA/WPA2-Personal, WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WLAN Antenna Connector QMA
Security RADIUS
WLAN Operation Mode Access point, Client, Client-Router, Sniffer
WLAN Standards 802.11a/b/g/n, 802.11i Wireless Security
1000BaseSFP Slots
Transmission Rates 802.11b: 1 to 11 Mbps, 802.11a/g: 6 to 54 Mbps, 802.11n: 6.5 to 300 Mbps
10/100BaseT(X) Ports
Digital Inputs : 2, +13 to +30 V for state 1,+3 to -30 V for state 0, Max. input current: 8 mA
Console Port : 1 x RS-232 (RJ45-type)
Serial Ports
M12 Connector
Power Requirement
Input Current 0.67 A @ 12 VDC, 0.17 A @ 48 VDC
Connector 1 removable 10-contact terminal block(s)
Input Voltage 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Consumption Maximum 8.03 W
Reverse Polarity Protection Supported
Physical Characteristics
Humidity 5 to 95% (non-condensing)
Dimensions Packaged 52.9 x 151.9 x 127.4 mm (2.08 x 5.98 x 5.02 in)
Weight (PACKAGED) 850 g (1.87 lb)
Housing Metal
Installation DIN-rail mounting, wall mounting (with optional kit)
Standards and Certifications EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50155, EN 50121-4; Railway Fire Protection: EN 45545-2; Radio: EN 300 328, EN 301 893, MIC, FCC ID SLE-WAPN008, IDA; Safety: UL 60950-1, IEC 60950-1, EN 60950-1 (LVD); IP30; Telcordia SR332
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
General
Management General: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, DHCP, AP-only: ARP, BOOTP, DHCP
LED Indicators PWR1, PWR2, PoE, FAULT, STATE, SIGNAL, Client, WLAN, LAN
MTBF 742,649 hrs
Time Management -
