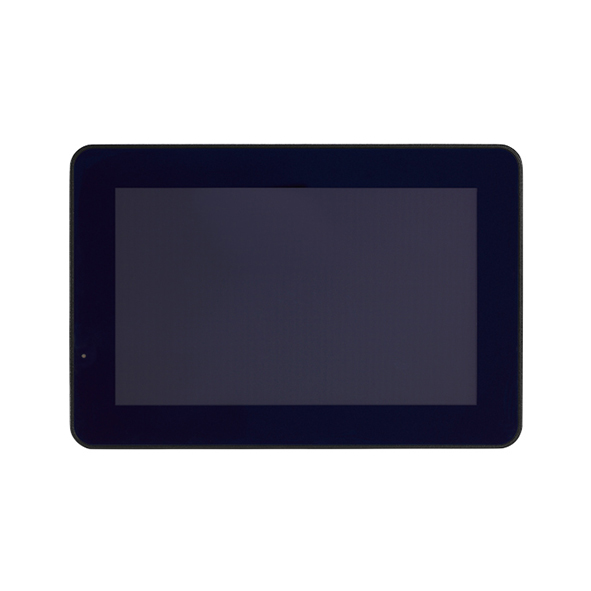

Nexcom (M)PPC-080T-BT-01 Panel PC

Nexcom (M)PPC-080T-BT-01 Panel PC
Nexcom (M)PPC-080T-BT-01 Panel PC
Nexcom (M)PPC-080T-BT-01 Panel PC
Nexcom (M)PPC-080T-BT-01 Panel PC
Nexcom (M)PPC-080T-BT-01 Panel PC

  • 16:9 8” WVGA marine panel computer
  • Intel® Atom™ E3845, Quad Core, 1.91GHz
  • 8” PCAP touch screen with AR coating
  • 4 Gigabit Ethernet/mini DisplayPort for the external monitor
  • 1 USB 2.0, 1 USB 3.0
  • 1 RJ45 output for RS232/422/485
  • DDR3L 4GB/ M.2 SATA 128GB
  • IP65 compliant front panel
  • Built-in 24VDC power input
  • Mounting support: flush/VESA 75mm x 75mm
  • IEC-60945 maritime standards compliance

  • Brand: NEXCOM
  • Model: (M)PPC-080T-BT-01
0 reviews • Write a review
Datasheet
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Nexcom (M)PPC-240T-HW-01 Panel PC
Quickview
Nexcom (M)PPC-240T-HW-01 Panel PC
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Nexcom (M)PPC-120T-BT-01/02 Panel PC
Quickview
Nexcom (M)PPC-120T-BT-01/02 Panel PC
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
You can place an order for the Nexcom (M)PPC-080T-BT-01 Panel PC online via one of our Middle East branches (Dubai/Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Panel PC : General
Panel LED size: 8”, 16:9, Resolution: WVGA 800 x 480, Luminance: 600cd/m2, Contrast ratio: 600, LCD color: 16.2M, Viewing angle: 60(U), 60(D), 70(L), 70(R), Backlight: LED
System Configuration CPU: onboard Intel® Atom™ processor E3845, 1.91 GHz, 2M L2 Cache, BIOS AMI BIOS, System memory: 1x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), support up to 4GB DDR3L-1067/1333, non-ECCand un-buffered, Storage device : (1x SATA connector, support SATA 3Gb/s and SATA 6Gb/s;1x SATA M.2 connector, 128G M.2 SATA (default)), Graphics: Intel® HD Graphics, Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C), H/W status monitor: monitoring system temperature, and voltage, Backlight control : (Control button: increase brightness, decrease brightness, backlight on/off; Auto dimming function can be adjust by ambient light sensor; Panel backlight can be controlled by software with 45 steps, dimming range from 0% to 100%)
Audio -
Ethernet LAN chip: 4x Intel® I210-IT Gigabit LAN, EtherNet interface: 10/100/1000 Mbps, Support wake up on LAN
Touch screen Projected capacitive (flush panel type), Light transmission: 89%, Interface: USB, With AR coating
Panel PC : Interface

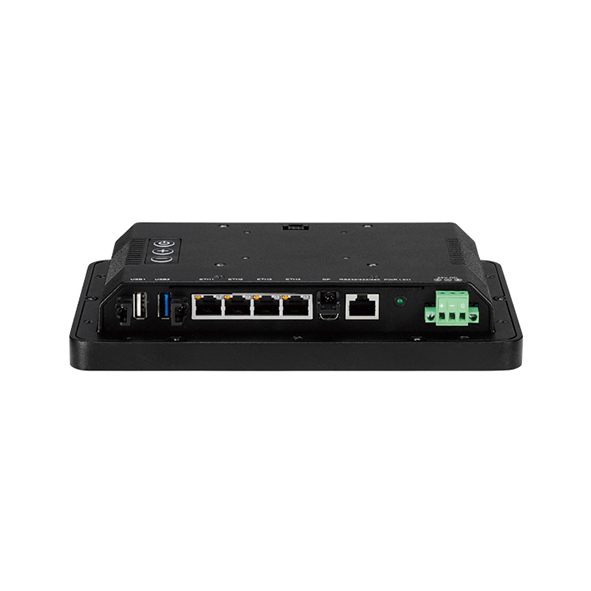

Rear I/O 2nd DisplayPort: 1x mini DisplayPort, USB: 1x USB 2.0, 1x USB 3.0, COM #1: 1x RJ45 output for RS232/422/485, Power status LED, DC power input connector: 3-pin Phoenix terminal blocks
Panel PC : Power requirements
Power Input 24VDC
Panel PC : Physical Characteristics
Color Pantone black RAL9005, powder painting for aluminum front bezel, Pantone black RAL9005 for backlight button membrane
IP protection IP65 front bezel, IP20 back system
Mounting flush/VESA 75mm x 75mm
Vibration 1.15Grms @ random condition, 1~200Hz, 1.5hr/axis (operating/non-operating)
Shock Protection IEC 68 2-27, 20G @ wall mount, half sine, 11ms
Operating temperature -25°C to 70°C
Storage Temperature -25°C to 75°C
Humidity 10%~90% relative humidity, non-condensing
Dimensions 218.5 x 147.5 x 39.5 mm
Weight 3 KG
Standards and Certifications CE approval, FCC Class A,IEC-60945 maritime standards compliance
