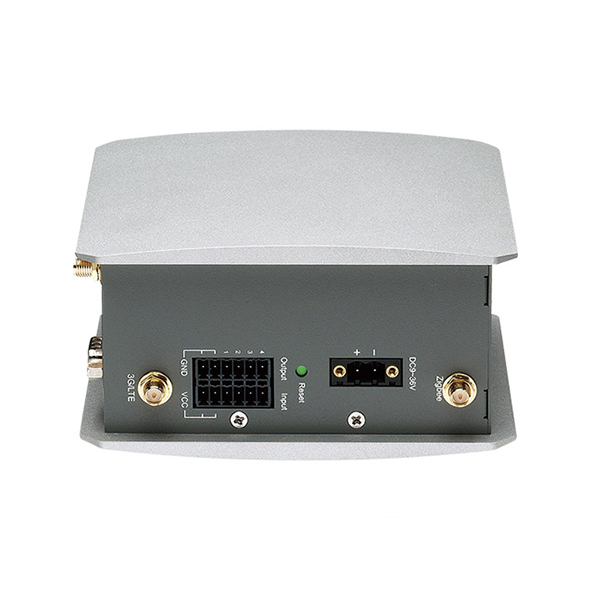

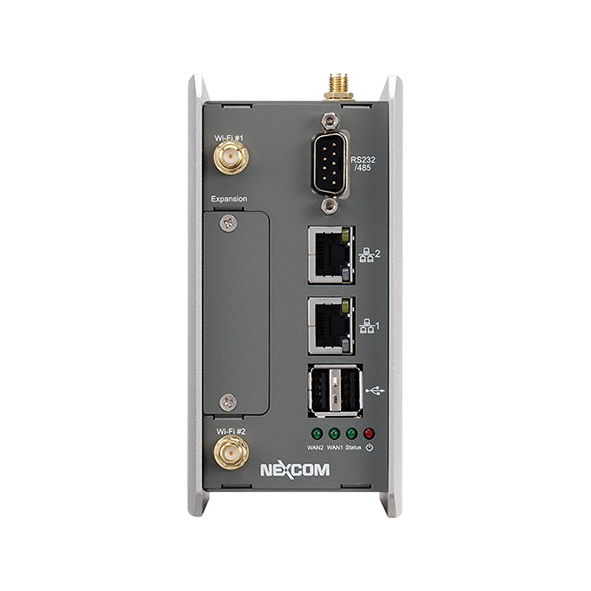

Nexcom NIO 101 IoT Gateway

Nexcom NIO 101 IoT Gateway
Nexcom NIO 101 IoT Gateway
Nexcom NIO 101 IoT Gateway
Nexcom NIO 101 IoT Gateway
Nexcom NIO 101 IoT Gateway

  • Onboard Intel® Quark processor X1021 single-core 400MHz
  • Wind River® or Yocto (only for NIO101Y) operating system and McAfee® (only for NIO101) security software solutions
  • Optional Wi-Fi or 3G/LTE module
  • 2 x 10/100 Fast Ethernet ports
  • 1 x mPCIe slots for the Radio module
  • 1 x mPCIe slot for FBI module
  • 2 x USB 2.0 type A
  • 1 x RS232/485 selectable
  • DIO 4x4
  • Support 9~36V wide range DC input with Phoenix 2 pin terminal block
  • Support -20~70°C extended operating temperature

  • Brand: NEXCOM
  • Model: NIO 101
0 reviews • Write a review
Datasheet
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Nexcom NMCB101C IoT Gateway
Quickview
Nexcom NMCB101C IoT Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

NIO 101, designed as an IoT(Internet of Things) gateway for cloud applications specifically focused on the industrial field, supports most of the popular Fieldbus protocols via various Fieldbus modules provided by NEXCOM. This is the most cost-effective Fieldbus solution, especially tailor-made for widely spread Industrial 4.0 applications. In addition to Fieldbus protocol capability, NIO 101 can also collect sensor data via RS232/485/DIO and transmit data to the cloud by 3G, Wi-Fi, or Ethernet. NIO 101 has a wide range of DC inputs of 9~36V for industrial environments.


You can place an order for the Nexcom NIO 101 IoT Gateway, which is applicable in the Factory Automation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

IoT Solutions : General
SW Features Moon Island Liunx 5.0.1, Macfee security, Web GUI management, Xcare client, Modbus TCP
IoT Solutions : Interface
Serial Port 1 x RS232/485 (software selectable)
Ethernet 2 x 10/100 Base-TX
Wireless Connectivity One Expansion Slot for Wi-Fi/3G module (Optional)
IoT Solutions : Power Requirement
Power Requirements DC 9~36V with 2 pins Phoenix Contact terminal block
IoT Solutions : Physical Characteristics
Dimensions 130 x130 x 40 mm
Weight 700g (w/o bracket)
Operating Temperature -20°C~70°C
Storage Temperature -30°C~80°C
Standards and Certifications CE Class A, FCC Class A
Humidity 0% to 95% maximum (Non-condensing)
Mounting Din-Rail(optional)/Wall mountable
IoT Solutions : Standards and protocols
Protocol Fieldbus
IoT Solutions : Button
Reset Button 1x reset button
