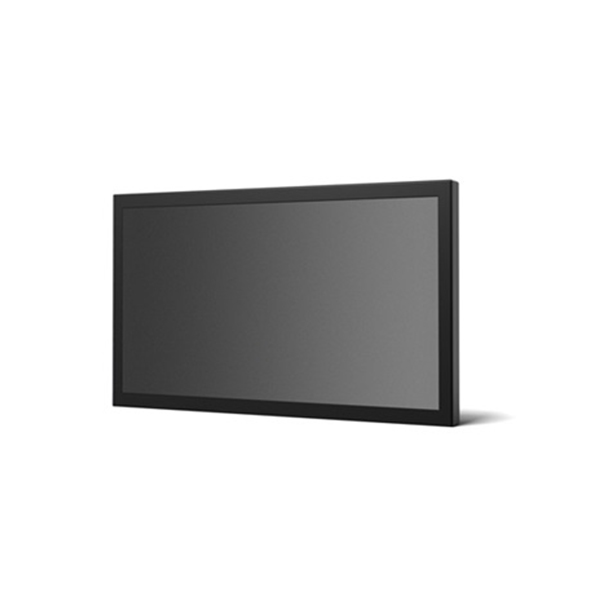

Beijer Wave II 21.5" (16:9) Monitor

Beijer Wave II 21.5" (16:9) Monitor
Beijer Wave II 21.5" (16:9) Monitor
  • Full glass front
  • 1920 × 1080 pixel (Full HD)
  • -15°C to +70°C operating temperature
  • DVI-I (Analogue and Digital), Display port, DDC/CI (DVI & DP)
  • ±89° viewing angle
  • IEC 60945 and IACS E10
  • DNV GL
  • Brand: BEIJER
  • Model: Wave II 21.5" (16:9)
0 reviews • Write a review
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim ORiNOCO AP-9100 Wireless LAN Access Point
Quickview
Proxim ORiNOCO AP-9100 Wireless LAN Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim ORiNOCO AP-9100R Wireless LAN Access Point
Quickview
Proxim ORiNOCO AP-9100R Wireless LAN Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim ORiNOCO QB-9100 Wireless LAN Access Point
Quickview
Proxim ORiNOCO QB-9100 Wireless LAN Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL COMPACT-4BT Serial Radio Modem
Quickview
SATEL COMPACT-4BT Serial Radio Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL EASY-PROOF Serial Radio Modem
Quickview
SATEL EASY-PROOF Serial Radio Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

The Wave II Monitor series includes a range of well-designed, rugged LED monitors with all the required marine approvals. The design is based on extensive feedback from shipowners, shipyards, system integrators, and navigators working on the bridge.


Discover industrial automation solutions appropriate to your needs, and easily inquire about the Beijer Wave II 21.5" (16:9) Monitor through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

X2 extreme : Communication serial
Number of serial ports 3 Ports
Serial port 1 RS 232
Serial port 2 RS422/RS485 terminal block
Serial port 3 RS422/RS485 terminal block
X2 extreme : Ethernet communication
Number of ethernet ports 1 port
Ethernet port 1 1x10/100 Base-T (shielded RJ45)
Ethernet port 2 No
X2 extreme : Expansion interface
SD card micro SD
USB 2xUSB 2.0 / 1 x USB type B (touch only)
Input fuse -
X2 extreme : Power Requirements
Input voltage 90-264 VAC (IEC inlet)
Power consumption (max) 41W
X2 extreme : Display
Size diagonal 21.5" diagonal
Resolution 1920 x 1080 pixels
Backlight LED backlight
Backlight life time 50000 hours
Backlight brightness 300 cd/m2
Backlight dimming Marine optimized dimming, 0 - 100%
Display type TFT-LCD with LED backlight
X2 extreme : Physical Characteristics
Mechanical size 513,6 (W) x 310,6 (H) x 78 (D) mm
Mounting Flush mount
Number of touches No
Touch type No
Cut-out size Depends on selected mounting option, see datasheets
Weightt 6.6 kg
Housing RAL 9005 fine structure
Operating temperaturee -15°C to +70°C
Storage temperature -15°C to +70°C
Shock -
Vibration 0,7g, according to IEC 60068-2-6, Test Fc
Sealing front IP42
Sealing back -
Humidity -
Standards and Certifications CE, Marine : DNV GL; IEC 60945; IEC 61174 (ECDIS); IEC 60936 (radar)
Marine DNV GL, IEC 60945, IEC 61174 (ECDIS), IEC 60936 (radar)
