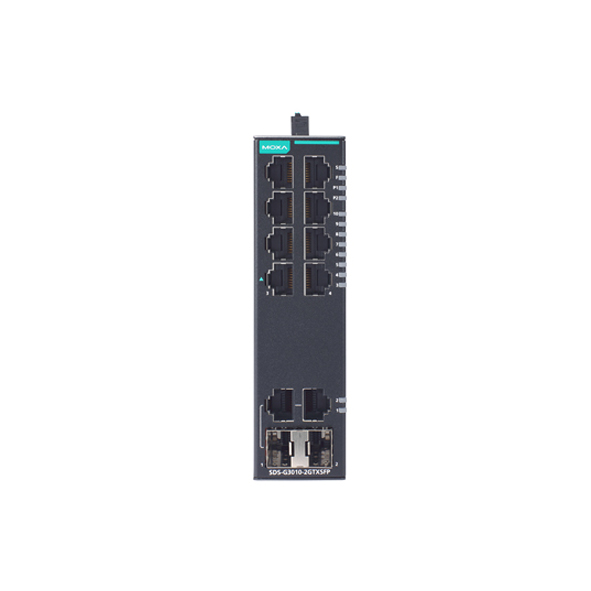

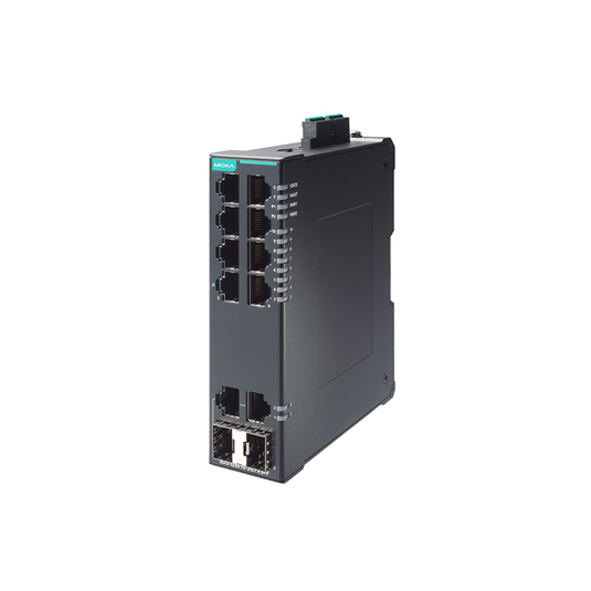

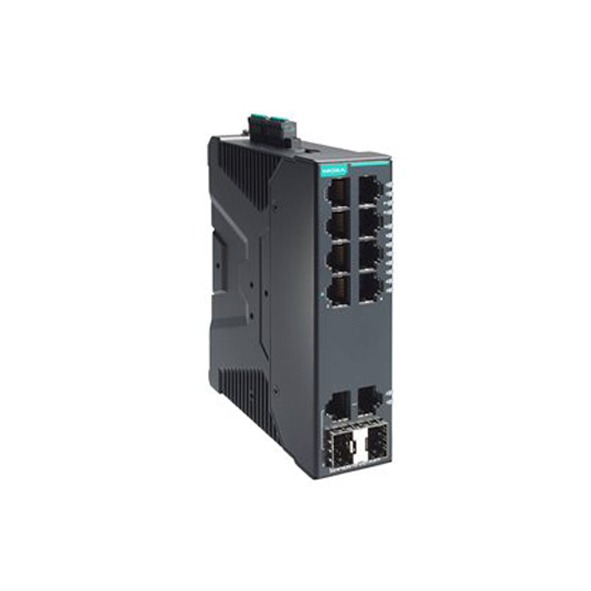

MOXA SDS-G3010-2GTXSFP Smart Ethernet Switch

MOXA SDS-G3010-2GTXSFP Smart Ethernet Switch
MOXA SDS-G3010-2GTXSFP Smart Ethernet Switch
MOXA SDS-G3010-2GTXSFP Smart Ethernet Switch
MOXA SDS-G3010-2GTXSFP Smart Ethernet Switch
MOXA SDS-G3010-2GTXSFP Smart Ethernet Switch
MOXA SDS-G3010-2GTXSFP Smart Ethernet Switch
MOXA SDS-G3010-2GTXSFP Smart Ethernet Switch

  • 8 x 10/100/1000BaseT(X) Ports (RJ45 connector)
  • 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
  • 12 to 48 VDC Redundant dual power inputs
  • IP40-rated Metal body design
  • DIN-rail and Wall mounting
  • -10 to 60°C operating temperature range

  • Brand: MOXA
  • Model: SDS-G3010-2GTXSFP
0 reviews • Write a review
Datasheet
  • Operating Temperature (-10 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Freefall (IEC 60068-2-32)
  • IP protection (IP40)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA SDS-G3010-2GTXSFP-T Smart Ethernet Switch
Quickview
MOXA SDS-G3010-2GTXSFP-T Smart Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA SDS-G3010-8PoE-2GTXSFP Smart Ethernet Switch
Quickview
MOXA SDS-G3010-8PoE-2GTXSFP Smart Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA SDS-G3010-8PoE-2GTXSFP-T Smart Ethernet Switch
Quickview
MOXA SDS-G3010-8PoE-2GTXSFP-T Smart Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Layer 2 Smart Switches , Layer 2 Switches , PoE Switches , PoE , Smart Ethernet Switches. Industrial Data Communications , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Switches , MOXA SDS-G3010 Series

The SDS-G3010 smart Ethernet switch is the ideal product for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation. In addition, it is monitorable and is easy to maintain throughout the entire product life cycle.

The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-G3010 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.



You can also find the SDS-G3010-2GTXSFP-T, SDS-G3010-8PoE-2GTXSFP, and SDS-G3010-8PoE-2GTXSFP-T models in the DIN-Rail Ethernet Switches.



Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA SDS-G3010-2GTXSFP Smart Ethernet Switch through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports 10 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 8 Ports (Auto negotiation speed, Full/Half duplex mode, Auto MDI/MDI-X connection)
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP), 1 x USB Port (Type A connector), 1 x Alarm Contact Channel, 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA)
switch and hub : Features and capabilities
Backup Yes : ABC-02
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.98 A max. 12-48 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 12-48 VDC
Operating Voltage 9.6 to 60 VDC
Power Consumption 11.76 W
switch and hub : General
Fan / Fanless Fanless
MTBF 3,086,399 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Smart Managed Switch
Port Aggregation No
switch and hub : Physical Characteristics
Dimensions 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -10 to 60°C (14 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m; 800 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (1.2/50 μs), 1 kV (10/700 μs), IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: EN IEC 62368-1, UL 61010-2-201; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; IP40; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 767g (1.69 lbs)
switch and hub : Standards and protocols
Protocols and work standards EtherNet/IP, Modbus TCP, PROFINET IO Device, RSTP, STP, MRP
Protocols and management standards Back Pressure Flow Control, DHCP Client, Fiber check, Flow control, IPv4/IPv6, LLDP, Port Mirror, RMON, SNMP Inform, SNMPv1/v2c/v3, Syslog, 802.1Q VLAN
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
