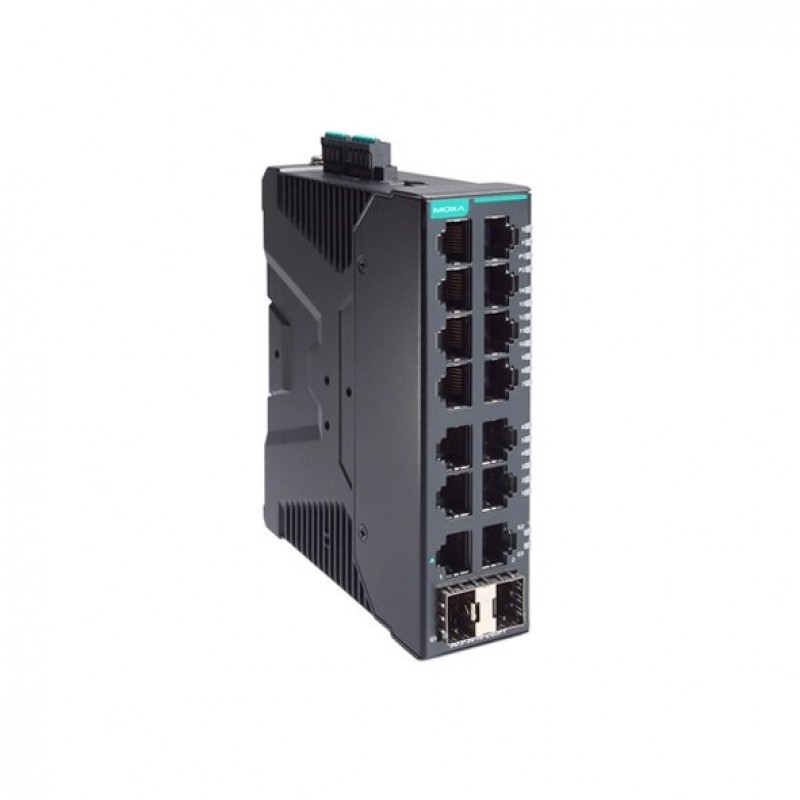

MOXA SDS-3016-2GSFP-T Smart Ethernet Switch

14 x 10/100BaseT(X) Ports (RJ45 connector)
2 x 100/1000BaseSFP Ports
Security features based on IEC-62443
12/24/48/-48 VDC Redundant dual inputs
IP40-rated metal body design
DIN-rail mounting
-40 to 75°C operating temperature

Brand: MOXA
Product Code: SDS-3016-2GSFP-T

Datasheet

Description

The SDS-3016 smart Ethernet switch is the ideal product for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation. In addition, it is monitorable and is easy to maintain throughout the entire product life cycle. The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-3016 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.

You can also find the SDS-3016-2GTX-T, SDS-3016-2GTX, and SDS-3016-2GSFP models in the DIN-Rail Ethernet Switches.

You can explore our wide range of products and enquire about the MOXA SDS-3016-2GSFP-T Smart Ethernet Switch for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

Specification

Interface
Number of ports	16 Ports
10/100Mb RJ45 (Megabit) Ports	: 14 Ports
10/100/1000Mb RJ45 (Gigabit) Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
100Mb SFP Fiber optic (Megabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports	: 2 Ports
10/100Mb (Megabit) POE Ports
10/100/1000Mb (Gigabit) POE Ports
Other ports	: 1 x Digital Input Channel, 1 x Alarm Contact Channel, 1 x USB Type A Storage Port
Features and capabilities
Backup	: ABC-02
LED Indicators
LED Per Port
Power Requirements
Input Current	12-48 VDC, 0.99 A (max.)
Power Input Plugin ( Redundant )
Input Voltage	12/24/48/-48 VDC
Operating Voltage	9.6 to 60 VDC
Power Consumption	-
General
Fan / Fanless	Fanless
MTBF	1,109,179 hrs
Switch specifications
Most forwarding speed	-
Network working layers	Layer 2
Switch type	Smart Managed Switch
Port Aggregation
Physical Characteristics
Dimensions	36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)
Housing	Metal
Installation	DIN-rail mounting
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF: 30 A/m; Safety: EN 62368-1, UL 61010-2-201; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; IP40; Telcordia (Bellcore), GB
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	590 g (1.3 lb)
Standards and protocols
Protocols and work standards	EtherNet/IP, Modbus TCP, PROFINET IO Device, RSTP,STP, MRP
Protocols and management standards	Back Pressure Flow Control, DHCP Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, SNMP Inform, SNMPv1/v2c/v3, Syslog, 802.1Q VLAN
Package Checklist
Hardware installation guide
Power adapter
Power cable
