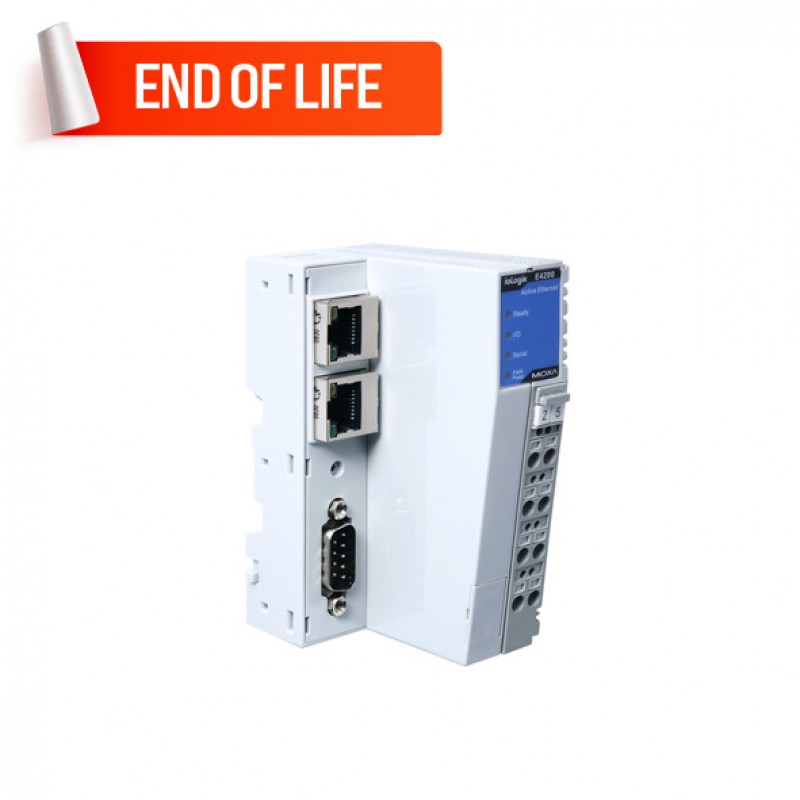

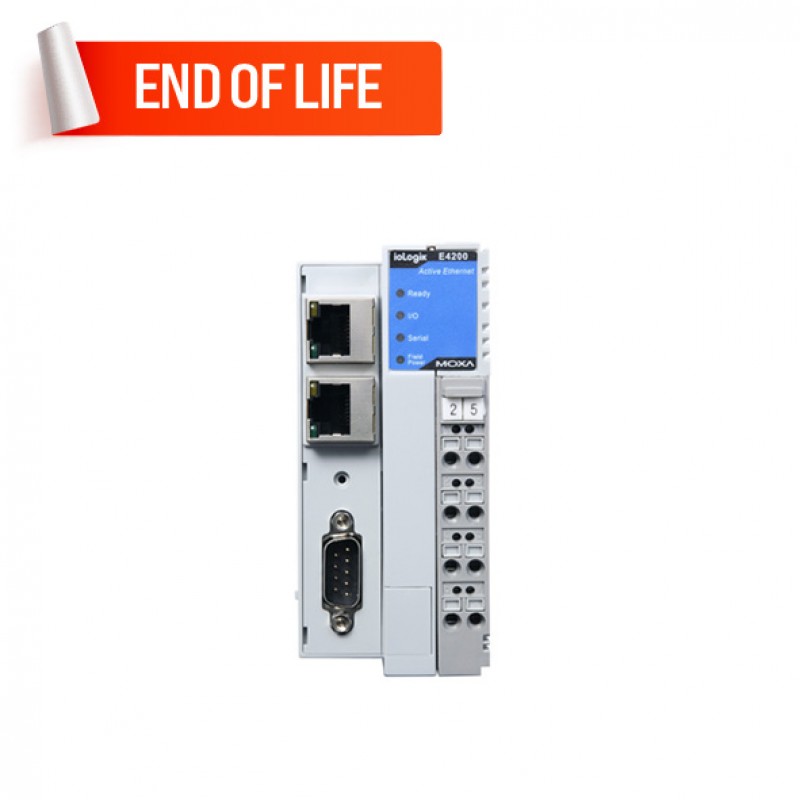

MOXA ioLogik E4200 Ethernet Remote I/O

Supports 16 x I/O Modules
2 x 10/100BaseT(X) Ports (RJ45 connector)
Supports Modbus/DHCP/SNMP/MXIO/MX-AOPC
DIN-rail mounting
11 to 28.8 VDC input power range (System/Field)
Plastic body design
-10 to 60°C operating temperature range

Brand: MOXA
Product Code: ioLogik E4200

Datasheet

Tags: Industrial Edge Connectivity , Controllers & I/Os , Universal Controllers & I/Os , Universal Controllers , Universal I/Os , Controllers , Ethernet Remote I/O , Remote I/O , Industrial Automation Solutions , Remote Automation , Factory Automation Products , I/Os , MOXA ioLogik 4000 Series

Description

The ioLogik 4000 Series is suitable for remote monitoring and alarm systems, such as those used for water treatment systems, water supply systems, wastewater treatment systems, and power monitoring systems. These kinds of applications need more I/O points and a variety of I/O types, including temperature sensors, gas detectors, and water quality detectors, all of which can benefit from the versatile mixture of I/O features supported by the ioLogik 4000 Series.

Slice Form Factor and Flexible I/O Variety

The unique modular construction of the ioLogik 4000 Series allows for the mixing and matching of modules to achieve the best combination of I/O modules to meet the needs of a wide range of remote automation applications. An industrial modular housing enables I/O modules to be added to the base unit without a backplane. The ioLogik 4000 Series is perfect for space-limited applications, and high-density I/O points are provided for greater flexibility and expandability. Modules can connect to virtually any type of sensor, including but not limited to those for temperature, pressure, flow, voltage, current, and contact closure.

Easy Maintenance

The ioLogik 4000 Series comes with removable spring-type terminal blocks (RTBs) that allow you to conserve field wiring for future use.

End of Life Product - Replacement Available

Please note that the ioLogik 4000 has been phased out and replaced by the ioThinx 4510 Series.

You can Buy the MOXA ioLogik E4200 Ethernet Remote I/O and via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Specification

INPUT/OUTPUT INTERFACE
Buttons	Reset button
Expansion Slots	-
Isolation	-
ETHERNET INTERFACE
10/100BaseT(X) Ports (RJ45 connector)	2 Ports, 2 MAC addresses
Magnetic Isolation Protection	-
SERIAL INTERFACE
Connector	-
Serial Standards	-
Number of Ports	-
Serial Communication Parameters	-
Serial Signals	-
INDUSTRIAL PROTOCOLS
Protocols	Ethernet: Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, SNMPv1/v2c, SNMPv1 Trap
POWER REQUIREMENTS
Input Voltage	11 to 28.8 VDC (System and Field)
Power Connector	Spring-type Euroblock terminal
Power Consumption	175 mA @ 24 VDC
GENERAL
Management	DHCP Client, HTTP, IPv4, TCP/IP, UDP, Modular-ioAdmin
MTBF	357,000 hrs
PHYSICAL CHARACTERISTICS
Housing	Plastic
Dimensions	45 x 99 x 70 mm (1.77 x 3.90 x 2.76 in)
Weight	180 g (0.396 lb)
Installation	DIN-rail mounting
Operating Temperature	-10 to 60°C (14 to 140°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	2000 m
Standards and Certifications	EMC: EN 55032/24, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332
