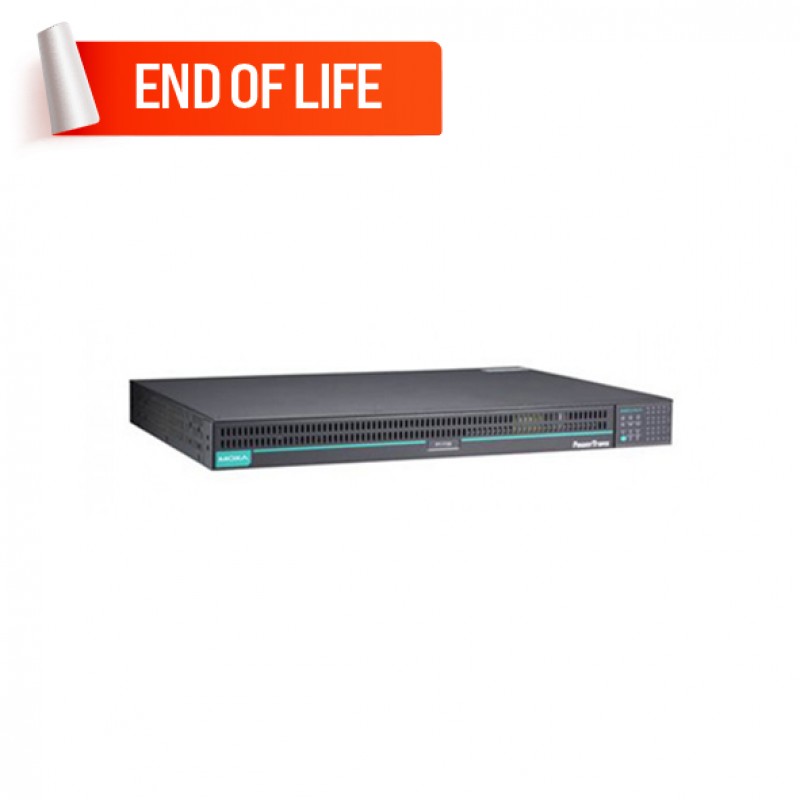

MOXA PT-7728-R-HV Managed Ethernet Switches

  • Modular Managed Ethernet Switch
  • 4 x Slots for combination with PM-7200 FE/GE modules
  • Cabling Direction: Rear cabling
  • IP30-rated Aluminum body design
  • 110 to 220 VAC/VDC input power range
  • Rackmount installation design
  • -40 to 85°C operating temperature

Description

The PT-7728 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN 50121-4), and also features critical packet prioritization (GOOSE and SMVs) and a built-in MMS server. The PT-7728’s Gigabit and Fast Ethernet backbone, redundant ring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. The modular design of the PT-7728 also makes network planning easy and allows greater flexibility by letting you install up to 4 Gigabit ports and 24 Fast Ethernet ports. Along with the optional front or rear wiring, these features together make the PT-7728 suitable for a variety of industrial applications.



End of Life Product - Replacement Available

Please note that the PT-7728 Series has been phased out and replaced by the RKS-G4028 Series.



Enjoy the ease of online inquiries for the MOXA PT-7728-R-HV Managed Ethernet Switches. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interface
Number of ports 28 Ports
10/100Mb RJ45 (Megabit) Ports Up to 24 Ports
10/100/1000Mb RJ45 (Gigabit) Ports Up to 4 Ports
100Mb Fiber optic multi mode (Megabit) Ports Up to 24 Ports
100Mb Fiber optic single mode (Megabit) Ports Up to 24 Ports
100Mb SFP Fiber optic (Megabit) Ports Up to 24 Slots
1000Mb SFP Fiber optic (Gigabit) Ports Up to 4 Slots
10/100Mb (Megabit) POE Ports
10/100/1000Mb (Gigabit) POE Ports
Other ports : 1 x RS-232 Console Port (RJ45 connector), 1 x Alarm Contact Channel
Features and capabilities
Backup : ABC-01
LED Indicators
LED Per Port
Power Requirements
Input Current 0.49/0.26 A @ 110/220 VAC, 0.59/0.30 A @ 110/220 VDC
Power Input Plugin ( Redundant )
Input Voltage 110/220 VAC/VDC (85 to 264 VAC, 88 to 300 VDC)
Operating Voltage -
Power Consumption -
General
Fan / Fanless Fanless
MTBF 393,828 hrs
Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation
Physical Characteristics
Dimensions 440 x 44 x 325 mm (17.32 x 1.73 x 12.80 in)
Housing Aluminum
Installation 19-inch rack mounting
Operating Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 60950-1; EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Power Substation: IEC 61850-3, IEEE 1613; Railway: EN 50121-4, EN 50155 (complies with a portion of EN 50155 specifications); Traffic Control: NEMA TS2; IP30; Telcordia SR332
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 5.9kg
Standards and protocols
Protocols and work standards EtherNet/IP, Modbus TCP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Protocols and management standards Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Fiber check, 802.1Q, GMRP, GVRP, IGMP v1/v2c, QinQ VLAN, VLAN unaware
Package Checklist
Hardware installation guide
Power adapter
Power cable
