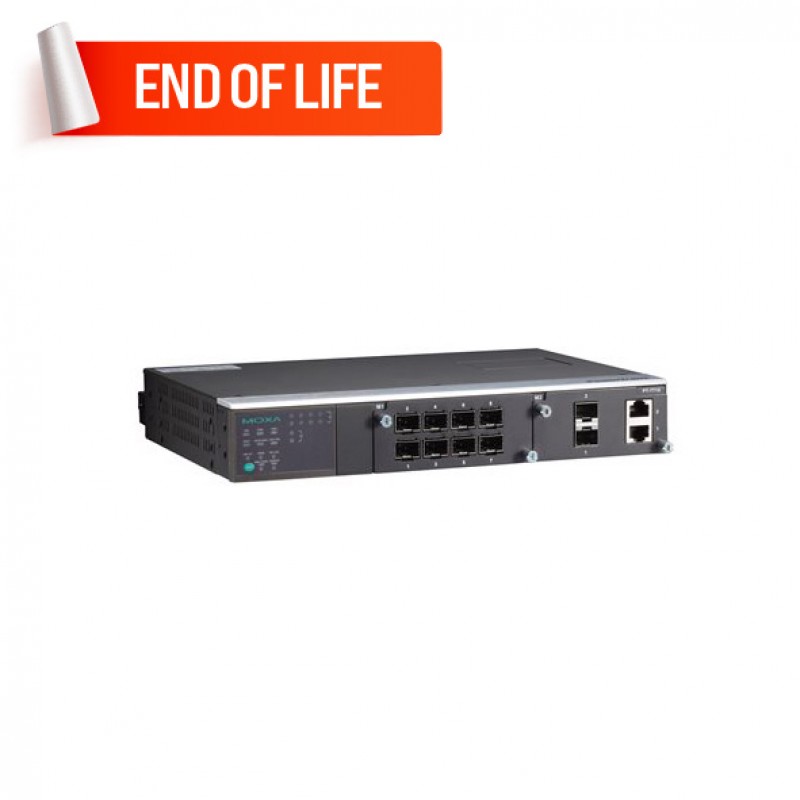

MOXA PT-7710-F-LV Managed Ethernet Switches
- Modular Managed Ethernet Switch
- 2 x Slots for combination with PM-7200 FE/GE modules
- Cabling Direction: Front cabling
- IP30-rated Aluminum body design
- 12/24/48 VDC Redundant dual power inputs
- Rackmount installation design
- -40 to 85°C operating temperature
.png)
Description
The PT-7710 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN 50121-4). The PT-7710’s Gigabit and Fast Ethernet backbone, redundant ring, and 12/24/48 VDC redundant power inputs increase the reliability of the communications and reduce cabling and wiring costs. The modular design of the PT-7710 makes network planning easy and allows greater flexibility by letting you install up to 2 Gigabit ports and 8 Fast Ethernet ports, or 10 Fast Ethernet ports.
End of Life Product - Replacement Available
Please note that the PT-7710 Series has been phased out and replaced by the RKS-G4028 Series.
You can explore our wide range of
products and enquire about the MOXA PT-7710-F-LV Managed Ethernet Switches for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
Specification
| Interface | |
|---|---|
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | Up to 8 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | Up to 2 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | Up to 8 Ports |
| 100Mb Fiber optic single mode (Megabit) Ports | Up to 8 Ports |
| 100Mb SFP Fiber optic (Megabit) Ports | Up to 8 Slots |
| 1000Mb SFP Fiber optic (Gigabit) Ports | Up to 2 Slots |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x RS-232 Console Port (RJ45 connector), 1 x Alarm Contact Channel |
| Features and capabilities | |
| Backup | : ABC-01 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.75 A @ 0.24 VDC, 0.39 A @ 48 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12/24/48 VDC (9 to 60 VDC) |
| Operating Voltage | - |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 316,716 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 266.5 x 44 x 195 mm (10.5 x 1.7 x 7.7 in) |
| Housing | Aluminum |
| Installation | 19-inch rack mounting |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1; EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Power Substation: IEC 61850-3, IEEE 1613; Railway: EN 50121-4, EN 50155 (complies with a portion of EN 50155 specifications); Traffic Control: NEMA TS2; IP30; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 2.2kg |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Protocols and management standards | Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
