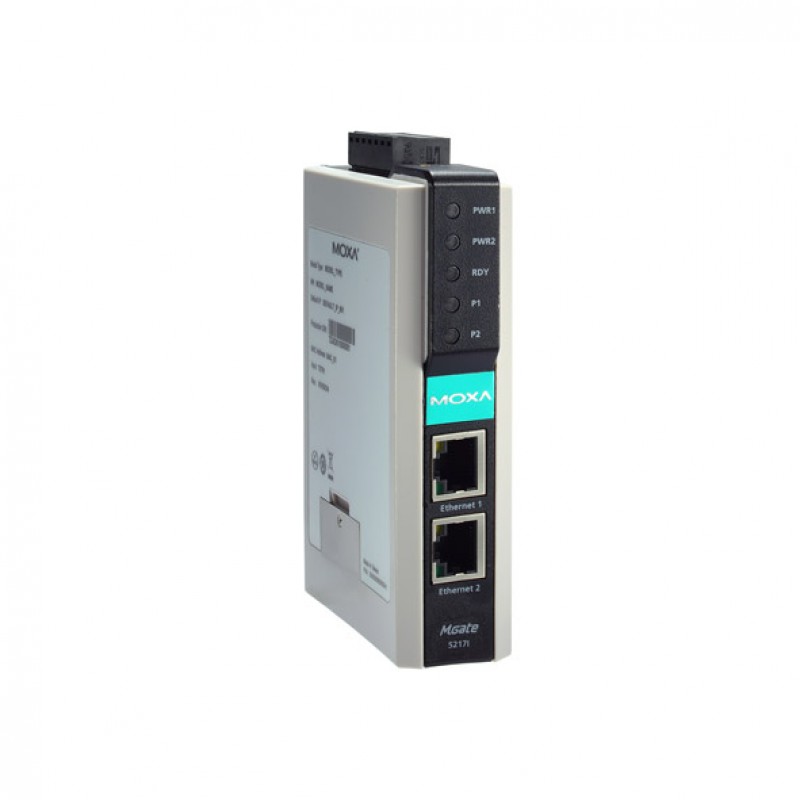

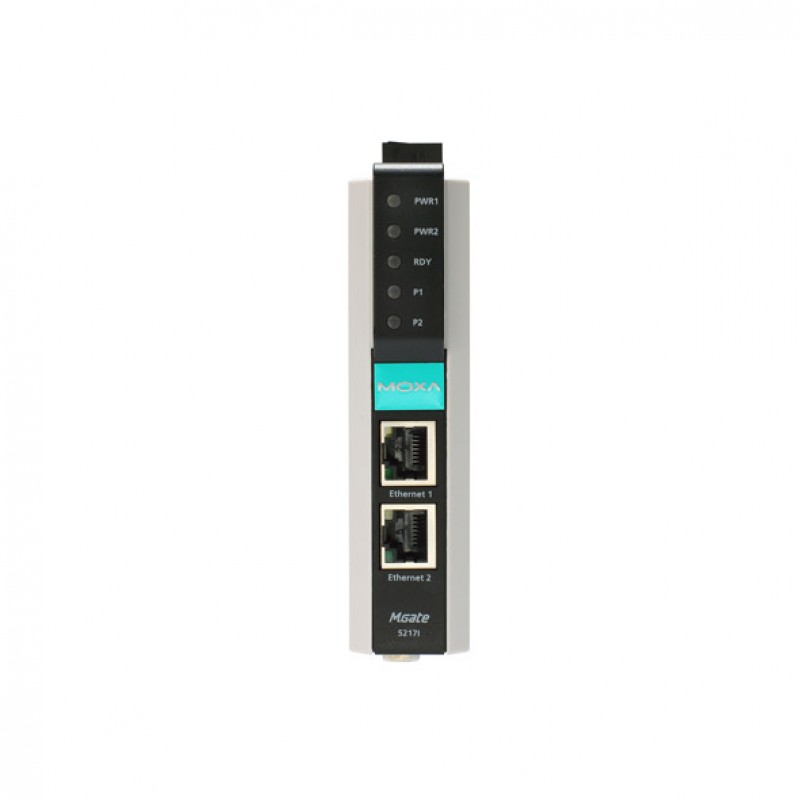

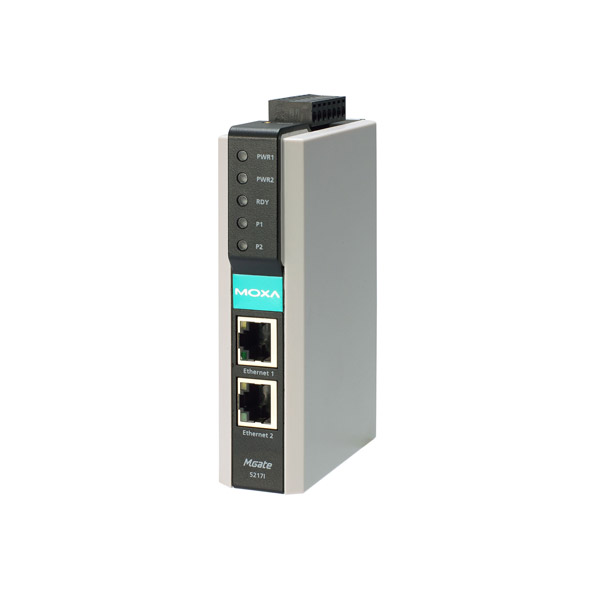

MOXA MGate 5217I-600-T Modbus RTU/ASCII/TCP to BACnet/IP Gateway
- Converts Modbus RTU/ASCII/TCP to BACnet/IP
- 2 x 10/100BaseT(X) Ports (RJ45 connector)
- 2 x RS-232/422/485 Serial ports (DB9 male connector)
- 2 KV Isolation protection for serial ports
- 24 VAC, 12 to 48 VDC dual power inputs
- IP30-rated Plastic body design
- 600 Data Points
- -40 to 75°C operating temperature
.png)
Description
The MGate 5217I Series comprises 2-port BACnet gateways that
can convert Modbus RTU/ASCII/TCP to BACnet/IP protocol. Depending on the size
and the scale of the network, the gateways provide 600-point and 1200-point
models. All models are rugged, DIN-rail mountable, operate in wide
temperatures and offer built-in 2kV isolation for serial signals.
Easy Configuration Via Web Console and Excel Spreadsheet
The MGate 5217I Series comes with an intuitive UI design to
make configuration easy. With that, you can easily access protocol conversion
modes and finish the configuration in a few steps instead of installing an
additional engineering utility on your computer. Besides, the MGate can
generate Modbus commands by importing an Excel spreadsheet, which makes it easy
to edit Modbus commands.
Modbus and BACnet/IP Protocol Traffic Monitor and
Diagnostics
The MGate 5217I gateways support Modbus and BACnet/IP
Protocol Traffic Monitor and Diagnostics for easy troubleshooting, especially
during the installation stage. Communication issues could be caused by
incorrect software parameters, such as the wrong slave ID and register address,
or an incorrect command configuration. With Diagnostics, you can check the
communication status and view values at a glance. With Modbus/ BACnet Protocol
Traffic Monitor, you can check the captured data and easily identify the root
cause.
Security Features Based on IEC 62443
Using network devices that are IEC 62443-4-2 compliant and equipped with basic security capabilities is an effective precautionary measure to ward off cyberattacks. The MGate 5217I Series is capable of several basic security capabilities, including password cracking defense, sniffer and data breach prevention, whitelisting, and account management.
You can also find the MGate 5217I-1200-T model in the Industrial Ethernet Gateways.
Enjoy the ease of online
inquiries for the MOXA MGate 5217I-600-T Modbus RTU/ASCII/TCP to BACnet/IP Gateway. You can submit your inquiry on our website and get the
most friendly communication with our experts to choose high-quality industrial
automation products at a reasonable price from our Middle East branches (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 2 Ports (Auto MDI/MDI-X connection) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Other ports | |
| Protocols | Ethernet: Modbus TCP Client (Master), BACnet/IP Server (Slave); Serial: Modbus RTU/ASCII Master |
| Serial port specifications | |
| Number of Ports | 2 Ports |
| Console Port | |
| Connectors | DB9 male |
| Serial Standards | RS-232/422/485 |
| Isolation | : 2 kV (built-in) |
| Serial Communication Parameters | |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS Toggle (RS-232 only), RTS/CTS, DTR/DSR |
| Baudrate | 50 bps to 921.6 kbps |
| Serial Signals | |
| RS-232 Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| RS-485-4w Signals | Tx+, Tx-, Rx+, Rx-, GND |
| General | |
| Management | ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, NTP Client |
| MTBF | 1,277,500 hrs |
| Memory | |
| microSD Slot | |
| Power Requirements | |
| Input Current | 300 mA @ 24 VAC, 510 mA @ 12 VDC |
| Input Voltage | 24 VAC, 12 to 48 VDC |
| Power Connector | Screw-fastened Euroblock terminal |
| Security | |
| Security | Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.2) |
| Authentication | Local database |
| Encryption | HTTPS, AES-128, AES-256, SHA-256 |
| Physical Characteristics | |
| Dimensions | 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: UL 60950-1, UL 62368-1, IEC 60950-1, IEC 62368-1; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; International Approval: KC; IP30; Telcordia SR332 |
| Housing | Plastic |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Weight | 380 g (0.84 lb) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting |
