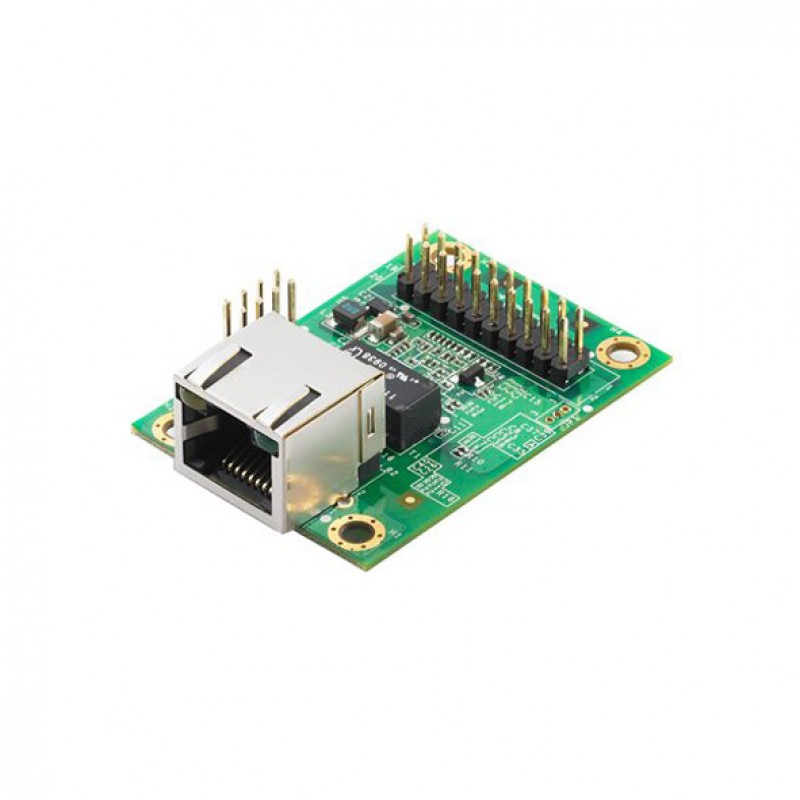

MOXA MiiNePort E3 Embedded Serial Module

  • CPU: 32-bit Arm Core
  • 4 x Configurable DIO Channels (by software)
  • 1 x 10/100BaseT(X) Port (pin header connector)
  • IEEE 802.3af compliant PoE passthrough
  • 1 x TTL Serial Port
  • 3.3 to 5 VDC input power range
  • 0 to 55˚C operating temperature

Description

Moxa’s MiiNePort E3 Series embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNePort E3 is empowered by the MiiNe, Moxa’s second-generation SoC, which supports 10/ 100 Mbps Ethernet, up to 921.6 kbps serial baud rate, a versatile selection of ready-to-use operation modes, and requires only a small amount of power. By using Moxa’s innovative NetEZ technology, the MiiNePort E3 can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. In addition, the MiiNePort E3 is a compact embedded device server with an RJ45 connector, making it easy to fit into virtually any existing serial device.

Moxa’s Second-Generation SoC

The MiiNe was created to provide manufacturers with a competitive embedded serial-to-Ethernet solution. The MiiNePort E1, which uses the MiiNe for its SoC is one of the world’s tiniest embedded device servers and has the lowest power consumption of any similar product. The MiiNe has the following features:

• Designed for 1 or 2-port serial-to-Ethernet applications

• Uses a 32-bit Arm 7 core

• Uses Moxa’s own advanced UART technology

• 2 MB Flash and 4 MB SDRAM memory built-in


You can also find the MiiNePort E3-H, MiiNePort E3-H-T, and MiiNePort E3-ST models in the Serial-To-Ethernet Converters.


Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA MiiNePort E3 Embedded Serial Module through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Embedded System
CPU 32-bit Arm Core
Flash 2 MB
SDRAM 4 MB
Input/Output Interface
Configurable DIO Channels : 4 x Channels
Digital Input Channels
Digital Output Channels
Ethernet Interface
Ethernet Ports 1 x 10/100BaseT(X) Ports, Auto MDI/MDI-X (8-pin RJ45)
Magnetic Isolation Protection 1.5 kV (built-in)
Power Parameters
Input Current 157 mA @ 3.3 VDC
Input Voltage 3.3 to 5 VDC
Seriel Interface
Number of Ports 1 Port
Serial Standards TTL
Baudrate 50 bps to 230.4 kbps
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity Even, Odd, Space, Mark, None
Flow Control RTS/CTS, DTR/DSR, XON/XOFF, None
Serial Signals TTL: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND
General
Management ARP, BOOTP, Device Search Utility (DSU), DHCP Client, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, UDP, ICMP
Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
MTBF 5,696,350 hrs
Physical Characteristics
Dimensions 35 x 52.5 x 18 mm (1.38 x 2.07 x 0.71 in)
Operating Temperature 0 to 55˚C (32 to 131˚F)
Storage Temperature -40 to 60°C (-40 to 140°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Environmental Testing: IEC 60068-2-1, IEC 60068-2-3; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332
Weight 12 g (0.03 lb)
