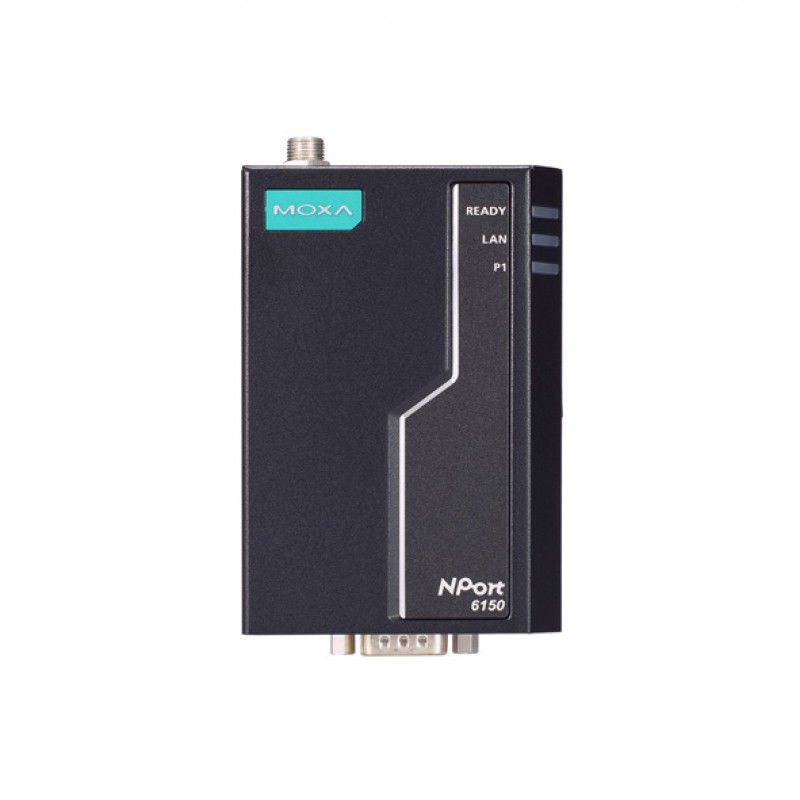

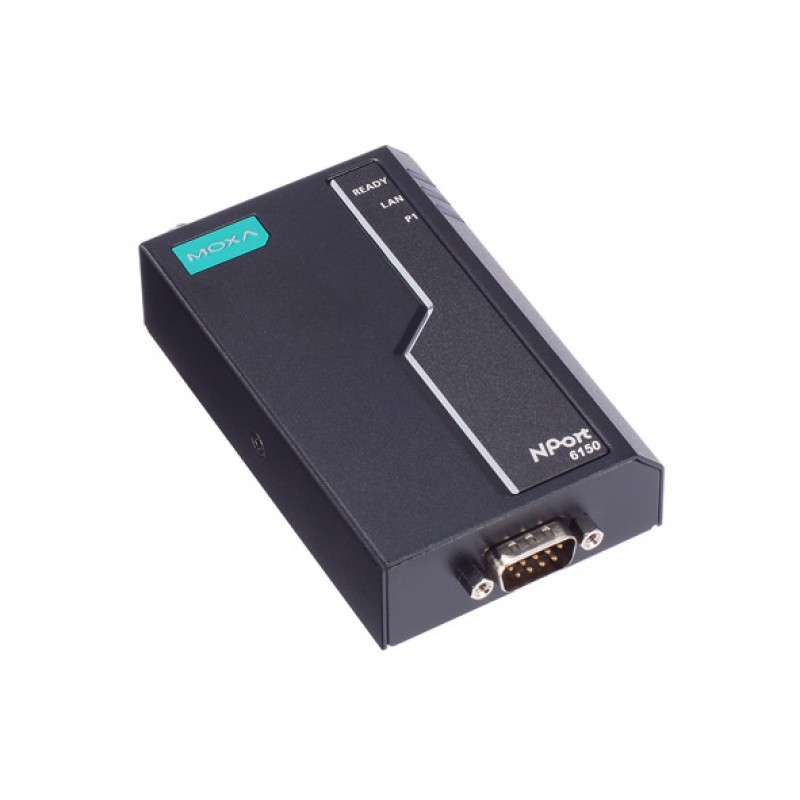

MOXA NPort 6150-G2-T Serial to Ethernet Device Server
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 1 x RS-232/422/485 Serial port (DB9 male connector)
- 12 to 48 VDC input power range
- Desktop, DIN-rail, Wall, and Side-panel mounting
- Metal body design
- -40 to 75° C operating temperature range
Description
Moxa has leveraged the IEC
62443-4-1 secure development lifecycle process to develop a new generation of
secure terminal servers. The NPort 6100- G2/6200-G2 Series secure terminal
servers follow the IEC 62443-4-2 design and guidelines to connect your legacy serial devices to industrial networks securely. In addition, the user experience
is enhanced based on Moxa’s 35 years of experience in the serial-connectivity
field by providing versatile installation means for different space
requirements and an easy troubleshooting tool for maintenance.
Secure Data Transmission
For many applications,
guaranteeing secure data transmission is a significant concern when connecting
serial devices to a network. To answer this concern, the NPort® 6100-G2/6200-G2
secure terminal servers support the TLS and SSH protocols, which work by encrypting
data before sending it over the network. With the NPort® 6100-G2/6200-G2, you
can be rest assured that serial data is transmitted securely over both private
and public networks.
You can also find the NPort 6150-G2, NPort 6250-G2, and NPort 6250-G2-T models in the Serial-to-Ethernet Converters.
Enjoy the ease of online inquiries for the MOXA NPort 6150-G2-T Serial to Ethernet Device Server. You can submit your inquiry on our website and get the friendliest communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 100BaseFX Ports | |
| Digital Input Channels | |
| Digital Output Channels | |
| Alarm Contact Channels | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Protocols | TLS and SSH |
| Serial Interface | |
| Number of Ports | 1 Port |
| Serial Standards | RS-232, RS-422, RS-485 |
| Connector | DB9 male |
| Console Port | |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, DTR/DSR, RTS Toggle, XON/XOFF |
| Isolation | |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | ARP, DHCP Client, DNS, HTTPS, ICMP, IPv4/IPv6, SMTP, SMTPS, SNMPv1/v2c/v3, SNTP, TCP/IP, UDP, WINS |
| Compatible operating systems | Windows 11, 10, 8.1, 8, and 7, Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2 |
| Fixed TTY Drivers | macOS versions: 14, 13, 12, and 11 |
| Linux Real TTY Drivers | Kernel versions 6.x, 5.x, and 4.x |
| MTBF | 3,843,653 hrs |
| Automatic Reboot Trigger | Built-in WDT |
| Power Requirements | |
| Connection | - |
| Input Voltage | 12 to 48 VDC |
| Input Current | 12 to 48 VDC, 160 mA (max.) |
| Security | |
| Security | Protocols: HTTPS (TLS 1.2), SNMPv3, SSHv2 |
| Encryption | AES-128, AES-256, ECC-256, ECC-384, ECC-521, HMAC, RSA-1024, RSA-2048, RSA-3072, RSA-4096, SHA-256, SHA-384 |
| Authentication | Local database, RADIUS, TACACS+ |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | 64 x 111.8 x 25 mm (2.52 x 4.4 x 0.98 in) |
| Installation | Desktop, DIN-rail mounting (with optional kit), Wall mounting (with optional kit), Side-panel mounting (with optional kit) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Package Drop Test: ISTA 1A; Safety: IEC 62368-1, UL 62368-1, EN 62368-1; International Approval: KC; Green Product: RoHS, CRoHS, WEEE; Telcordia Standard SR-332, Telcordia SR-332 Issue 4 |
| Housing | Metal |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Weight | Without package: 228 g (0.50 lb); With package: 302 g (0.67 lb) |
