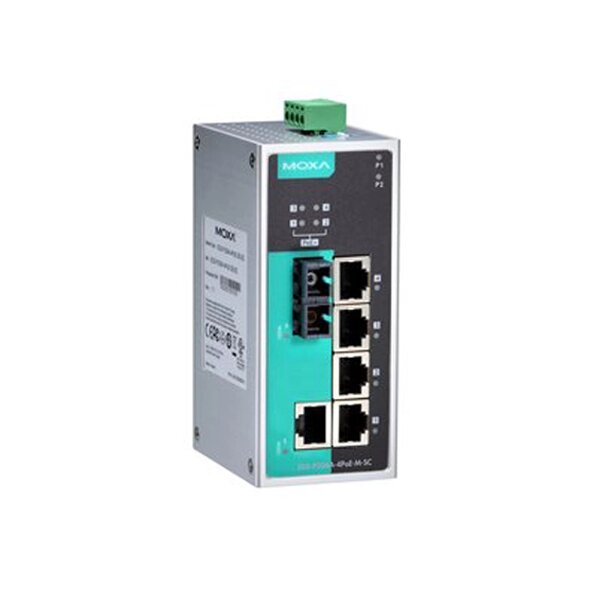

MOXA EDS-P206A-4PoE-M-SC-T Unmanaged Ethernet Switches

MOXA EDS-P206A-4PoE-M-SC-T Unmanaged Ethernet Switches
MOXA EDS-P206A-4PoE-M-SC-T Unmanaged Ethernet Switches
MOXA EDS-P206A-4PoE-M-SC-T Unmanaged Ethernet Switches
MOXA EDS-P206A-4PoE-M-SC-T Unmanaged Ethernet Switches
MOXA EDS-P206A-4PoE-M-SC-T Unmanaged Ethernet Switches
  • 4 x 10/100Mbps PoE ports (RJ45 connector)
  • 1 x 10/100Mbps ports (RJ45 connector)
  • 1 x 100BaseFX (multi-mode SC connector)
  • DIN-rail and Wall mounting
  • IP30-rated metal housing
  • 5 KM Data transmission typical distance on fiber
  • 12/24/48 VDC Redundant dual power inputs
  • -40 to 75°C operating temperature
  • Brand: MOXA
  • Model: EDS-P206A-4PoE-M-SC-T
0 reviews • Write a review
Datasheet User Guide
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IP protection (IP30)
  • POE
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA CM-600-2MSC/2TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-2MSC/2TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-2SSC/2TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-2SSC/2TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-3MSC/1TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-3MSC/1TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-3SSC/1TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-3SSC/1TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4MSC Fast Ethernet Interface Module
Quickview
MOXA CM-600-4MSC Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4MST Fast Ethernet Interface Module
Quickview
MOXA CM-600-4MST Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4SSC Fast Ethernet Interface Module
Quickview
MOXA CM-600-4SSC Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CM-600-4TX Fast Ethernet Interface Module
Quickview
MOXA CM-600-4TX Fast Ethernet Interface Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Unmanaged Switches , PoE Switches , PoE , Unmanaged Ethernet Switches , Industrial Data Communications , DIN-Rail Ethernet Switches , Industrial Ethernet Switches , Switches , MOXA EDS-P206A Series

The EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port. The switches can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.


You can also find the EDS-P206A-4PoE-MM-SC, EDS-P206A-4PoE-M-ST, and EDS-P206A-4PoE-M-SC models in the DIN-Rail Ethernet Switches.


Easy World Automation offers the easiest way to buy the MOXA EDS-P206A-4PoE-M-SC-T Unmanaged Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports 6 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 1 Port
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports Yes : 1 Port (SC connector)
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports Yes : 4 Ports (RJ45 connector)
10/100/1000Mb (Gigabit) POE Ports No
Other ports No
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 5.55 A @ 24 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 12/24/48 VDC
Operating Voltage 12 to 57 VDC
Power Consumption Max. 13.2 W full loading without PDs’ consumption
switch and hub : General
Fan / Fanless Fanless
MTBF 1,289,258 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type UnManaged
Port Aggregation No
switch and hub : Physical Characteristics
Dimensions 50.3 x 114 x 70 mm (1.98 x 4.53 x 2.76 in)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMI: CISPR 32, FCC Part 15B Class A; EMC: EN 55032/24; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: UL 508; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-31; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 375 g (0.83 lb)
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards -
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
