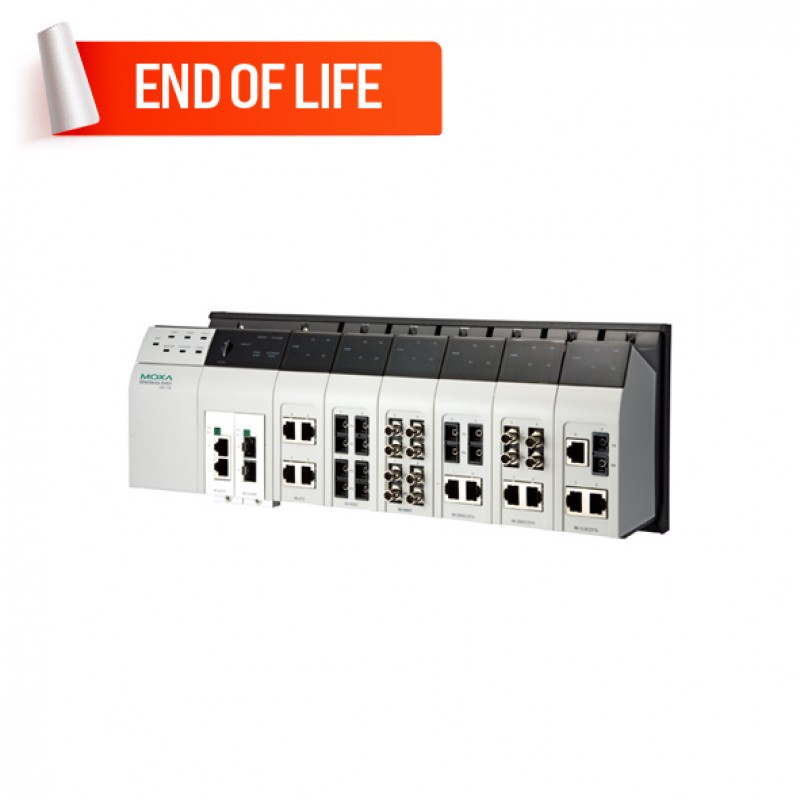

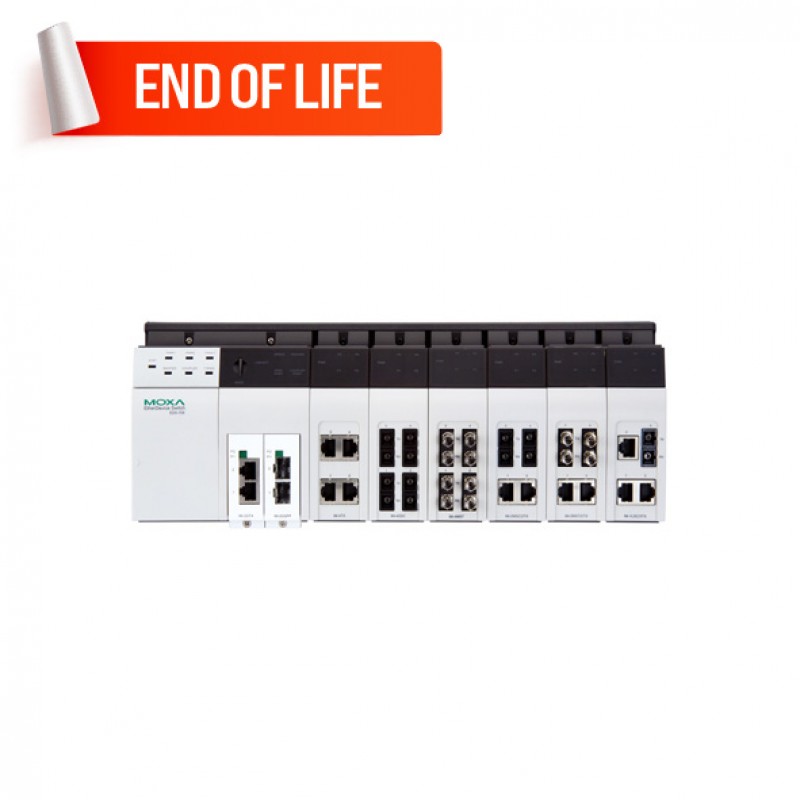

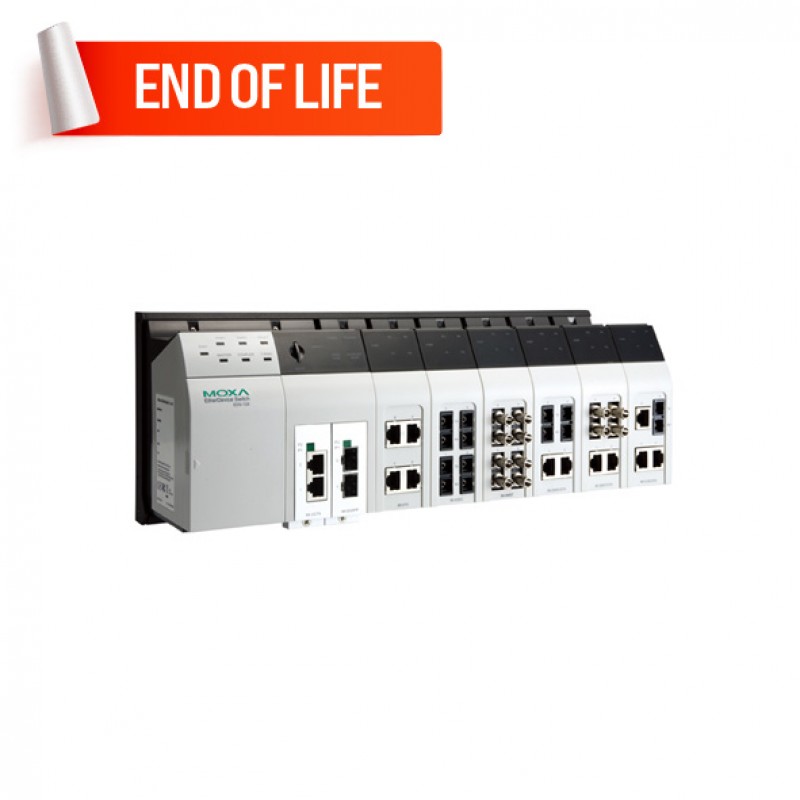

MOXA EDS-72810G Managed Ethernet Switches
- Modular Managed Ethernet Switch
- 2 x 2-Port slots for combination with IM Series GE modules
- 6 x 4-Port slots for combination with IM Series FE modules
- DIN-rail and Wall mounting
- 24 VDC Redundant dual power inputs
- 0 to 60°C operating temperature
.png)
Description
The EDS-728 Series features a versatile modular design that allows different combinations of fiber and copper modules, creating a wide array of connection options ideal for any automation network. The modular design lets you install up to 4 Gigabit ports and 24 Fast Ethernet ports. The EDS-728 Series is specially designed for redundant Gigabit network backbones and uses a modular configuration to provide a high degree of flexibility for network expansion. Top network performance, security, and reliability are assured through the EDS-728 Series advanced management and security features. The EDS728 Series also features industrial-grade construction, a console port for automatic configuration backup, and an angled LED troubleshooting panel that can be conveniently viewed from both horizontal and vertical orientations.
End of Life Product - Replacement Available
Please note that the EDS-728 Series has been phased out and replaced by the MDS-G4028 Series.
Explore our extensive range of industrial automation products such as MOXA EDS-72810G Managed Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 28 Ports |
| 10/100Mb RJ45 (Megabit) Ports | Up to 24 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | Up to 4 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | Up to 24 Ports |
| 100Mb Fiber optic single mode (Megabit) Ports | Up to 24 Ports |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | Up to 4 Ports |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 2 x Alarm Contact Channels, 2 x Digital Input Channels (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA), 1 x RS-232 Console Port (10-pin RJ45 connecor) |
| Features and capabilities | |
| Backup | : ABC-01 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.82 A @ 24 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 24 VDC |
| Operating Voltage | 12 to 45 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 191,203 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 362.4 x 142.5 x 128 mm (14.27 x 5.61 x 5.04 in) |
| Housing | - |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Freefall: IEC 60068-2-32; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Maritime: ABS, DNV-GL, LR, NK; Safety: EN 60950-1, UL 508, UL 60950-1, CSA C22.2 No. 60950-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 1950 g (4.30 lb) |
| Standards and protocols | |
| Protocols and work standards | IEEE 1588 PTPv2, EtherNet/IP, Modbus TCP, PROFINET, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Protocols and management standards | Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, GMRP, GVRP, IGMP v1/v2, QinQ VLAN, 802.1Q VLAN, VLAN unaware |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
