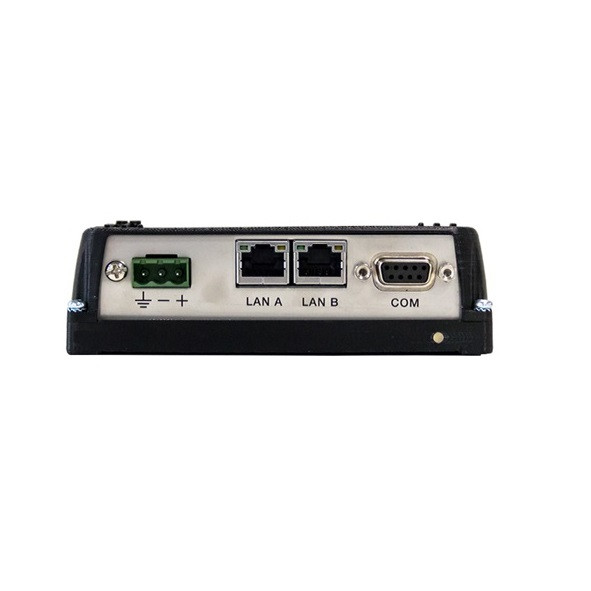

Beijer BoX2 pro motion CODESYS Controller

Beijer BoX2 pro motion CODESYS Controller
Beijer BoX2 pro motion CODESYS Controller

  • EtherCAT
  • Distributed clock
  • CODESYS CNC license (for circular interpolation, axis groups, etc.)
  • No iX functionality. No 2nd field, limited to EtherCAT only
  • IP20

  • Brand: BEIJER
  • Model: BoX2 pro motion
0 reviews • Write a review
  • Operating Temperature (-10 to 60°C)
  • Relative Humidity (5% – 85% non-condensed)
  • IP protection (IP20)
  • Railway Transportation
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BFI-E3-14-0041-3F1Y Frequency inverter
Quickview
Beijer BFI-E3-14-0041-3F1Y Frequency inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BFI-E3-24-0041-3F42 Frequency inverter
Quickview
Beijer BFI-E3-24-0041-3F42 Frequency inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

BoX2 promotion is a dedicated CODESYS-based motion controller with an EtherCAT field. It is a generic solution that can handle most servo motion applications up to 16 axes with a cycle time down to 1 ms. Applications covering speed control, position control, torque control, synchronization, and interpolation. The CODESYS SoftMotion license provides access to the distributed clock (DC) allowing full synchronization of two or more axes. In addition, advanced users can take advantage of the included CNC and robot license that offers functionality such as circular interpolation and axis groups.


Discover industrial automation solutions appropriate to your needs, and easily inquire about the Beijer BoX2 pro motion CODESYS Controller through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Controller : Ethernet communication
Number of Ethernet ports 2
Ethernet port 1 EtherCAT Rj45
Ethernet port 2 1x10/100 Base-T (shielded RJ45)
Controller : Expansion interface
SD card SD and SDHC
USB 1xUSB 2.0 500mA
Controller : Mechanical
CPU i.MX6DualLite Dual Cortex-A9 1.0GHz 512kBL2cache
RAM 1 GB
FLASH 2GB SSD(eMMC), 1.5GB free for application
Controller : Softcontrol
Codesys runtime version 3.5.10.10
Codesys EtherCAT Yes
Codesys Modbus Ethernet No
Codesys Modbus RTU No
CANopen No
Non volatile variables Yes
Controller : Physical Characteristics
Operating Temperature -10°C to +60°C
Storage Temperature -20°C to +70°C
Shock 15g, half-sine, 11ms according to IEC60068-2-27
Vibration 1g, according to IEC 60068-2-6, Test Fc
Sealing front IP20
Sealing back IP20
Humidity 5% – 85% non-condensed
Altitude < 3000m
Controller : Standards and Certification
General CE, FCC, KCC
Marine LR, ABS, BV, DNV GL
Safety UL 61010-2-201
