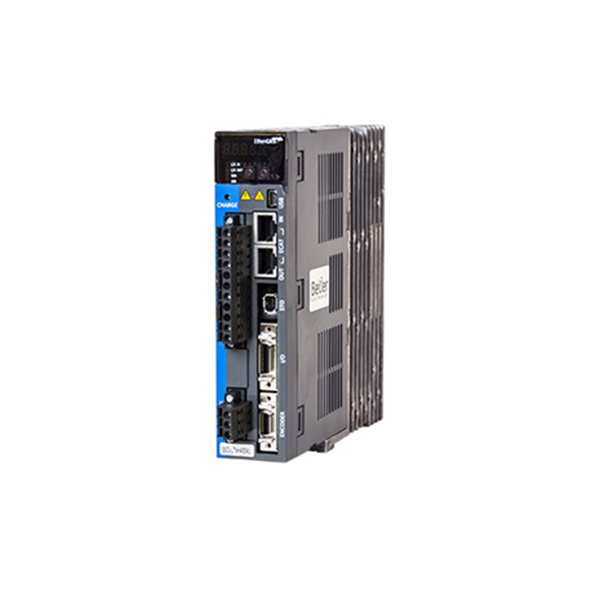

Beijer BSD-L7NHA002U-2 EtherCAT servo drive

Beijer BSD-L7NHA002U-2 EtherCAT servo drive
Beijer BSD-L7NHA002U-2 EtherCAT servo drive

  • EtherCAT slave node
  • Input voltage 1- or 3-phase 200-240 VAC
  • Output power 200 W
  • Output current 1.7 A
  • Motor autodetect and adopt
  • Universal encoder
  • STO safety

  • Brand: BEIJER
  • Model: BSD-L7NHA002U-2
0 reviews • Write a review
  • Operating Temperature (0 to 50°C)
  • Relative Humidity (90% RH or less)
  • IP protection (IP20)
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BFI-E3-14-0041-3F1Y Frequency inverter
Quickview
Beijer BFI-E3-14-0041-3F1Y Frequency inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BFI-E3-24-0041-3F42 Frequency inverter
Quickview
Beijer BFI-E3-24-0041-3F42 Frequency inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

High-performance servo drives for synchronized multi-axis (L7NH) or standalone (L7P) movements. All models provide auto-detection and adaptation of the connected motor, various homing modes, advanced tuning with advanced filters, and high-speed motion profile calculation.


You can explore our wide range of products and enquire about the Beijer BSD-L7NHA002U-2 EtherCAT servo drive for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

Servo drives : Communication
EtherCAT Yes
Modbus RTU No
Communication connector RJ45 (1 input, 1 output)
DC-clock cycle time 250 μs
Servo drives : Input ratings
Control supply voltage 200 to 230VAC
Mains supply voltage 1- or 3-phase 200-230VAC
Overload capacity 300 % for 3 s
Supply frequency 50 to 60 Hz
Voltage fluctuations -15 to +10%
Servo drives : Output ratings
Rated power 200 W
Servo drives : Encoder
Encoder type Quadrature(Incremental) BiSS-B, BiSS-C(Absolute, Incremental) Tamagawa Serial(Absolute, Incremental) EnDat 2.2 Sinusoidal, Analog Hall
Servo drives : Regenerative
Built-in brake resistor Yes
Built-in brake transistor Yes
Servo drives : Control specifications
Control modes Profile Position Mode Profile Velocity Mode Profile Torque Mode Cyclic Synchronous Position Mode Cyclic Synchronous Velocity Mode Cyclic Synchronous Torque Mode Homing Mode
Frequency response Maximum 1Khz or above (when using 19-bit serial encoder)
Speed control range Maximum 1:5000
Torque control repeatibility Within ±1%
Tuning modes On line auto gain tuning Resonance filters Vibration supression
Servo drives : Control terminals
Analog inputs Input voltage range : -10[V] ~ +10[V] Function : Analog torque limit Total 1 input channel (not allocable)
Analog outputs Total 2 input channels (allocable)
Digital inputs Input Voltage range : DC 12[V] ~ DC 24[V] Total 8 input channels (allocable) The listed 15 functions can be used selectively for assignment. (*POT, *NOT, *HOME, *STOP, *PCON, *GAIN2, *P_CL, *N_CL, PROBE1, PROBE2, EMG, A_RST, SVON, LVSF1, LVSF2) Note) * Basic allocation signal
Digital transistor outputs Signal rating: DC 24[V] ±10%, 120[㎃] Total 4 input channels (allocable) The listed 11 functions can be used selectively for assignment. (*BRAKE±, *ALARM±, *READY±, *ZSPD±, INPOS±, TLMT±, ,VLMT±, INSPD±, WARN±, TGON±, INPOS2±) Note) * Basic allocation signal
Servo drives : Physical Characteristics
IP Class IP20
Size 169x38x172.5 mm
Weight 1.0 kg
Environment Indoors in an area free from corrosive or combustible gases, liquids, or dust.
Humidity 90% RH or less (no condensation)
Operating Temperature 0 to 50 C°
Storage Temperature -20 to +65 C°
Safety 2 input channels (STO1, STO2), 1 output channel (EDM)
