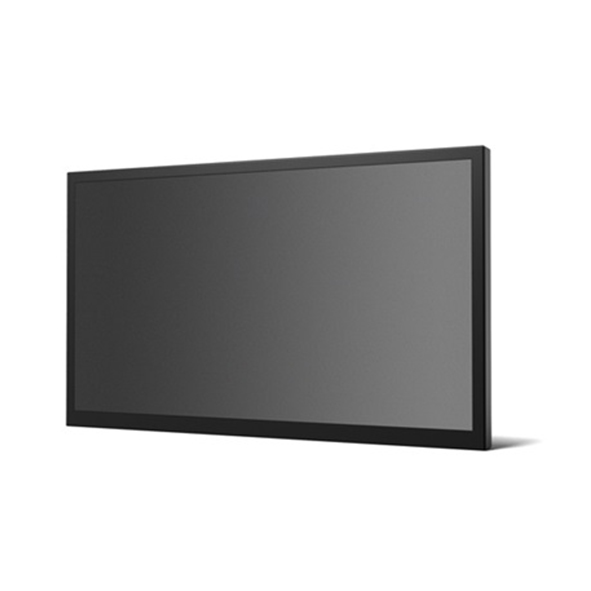

Beijer Wave II 32" (16:9) Monitor

Beijer Wave II 32" (16:9) Monitor
Beijer Wave II 32" (16:9) Monitor

  • Full glass front
  • 1920 × 1080 pixel (Full HD)
  • -15°C to +70°C operating temperature
  • DVI-I (Analogue and Digital), Display port, DDC/CI (DVI & DP)
  • ±89° viewing angle
  • IEC 60945 and IACS E10
  • DNV GL

  • Brand: BEIJER
  • Model: Wave II 32" (16:9)
0 reviews • Write a review
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer Wave II 18.5" (16:9) Monitor
Quickview
Beijer Wave II 18.5" (16:9) Monitor
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer Wave II 19" (5:4) Monitor
Quickview
Beijer Wave II 19" (5:4) Monitor
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer Wave II 21.5" (16:9) Monitor
Quickview
Beijer Wave II 21.5" (16:9) Monitor
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer Wave II 24" (16:9) Monitor
Quickview
Beijer Wave II 24" (16:9) Monitor
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer Wave II 27" (16:9) Monitor
Quickview
Beijer Wave II 27" (16:9) Monitor
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

The Wave II Monitor series includes a range of well-designed, rugged LED monitors with all the required marine approvals. The design is based on extensive feedback from shipowners, shipyards, system integrators, and navigators working on the bridge.


Discover industrial automation solutions appropriate to your needs, and easily inquire about the Beijer Wave II 32" (16:9) Monitor through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

X2 extreme : Communication serial
Number of serial ports 3 Ports
Serial port 1 RS 232
Serial port 2 RS422/RS485 terminal block
Serial port 3 RS422/RS485 terminal block
X2 extreme : Ethernet communication
Number of ethernet ports 1 Port
Ethernet port 1 1x10/100 Base-T (shielded RJ45)
Ethernet port 2 No
X2 extreme : Expansion interface
SD card micro SD
USB 2xUSB 2.0 / 1 x USB Type B (touch only)
Input fuse -
X2 extreme : Power Requirements
Input voltage 90-264 VAC (IEC inlet)
Power consumption (max) 49W
Storage temperature -15°C to +70°C
X2 extreme : Display
Size diagonal 32" diagonal
Resolution 1920 x 1080 pixels
Backlight LED backlight
Backlight life time 50000 hours
Backlight brightness 300 cd/m2
Backlight dimming Marine optimized dimming, 0 - 100%
Display type TFT-LCD with LED backlight
X2 extreme : Physical Characteristics
Mechanical size 743.4 (W) x 447.9 (H) x 78 (D) mm
Mounting Flush mount
Number of touches No
Touch type No
Cut-out size Depends on selected mounting option, see datasheets
Weightt 13 kg
Housing RAL 9005 fine structure
Operating temperaturee -15°C to +70°C
Shock -
Vibration 0,7g, according to IEC 60068-2-6, Test Fc
Sealing front IP42
Sealing back -
Humidity -
Standards and Certifications CE, Marine : DNV GL; IEC 60945; IEC 61174 (ECDIS); IEC 60936 (radar)
Marine DNV GL; IEC 60945; IEC 61174 (ECDIS); IEC 60936 (radar)
