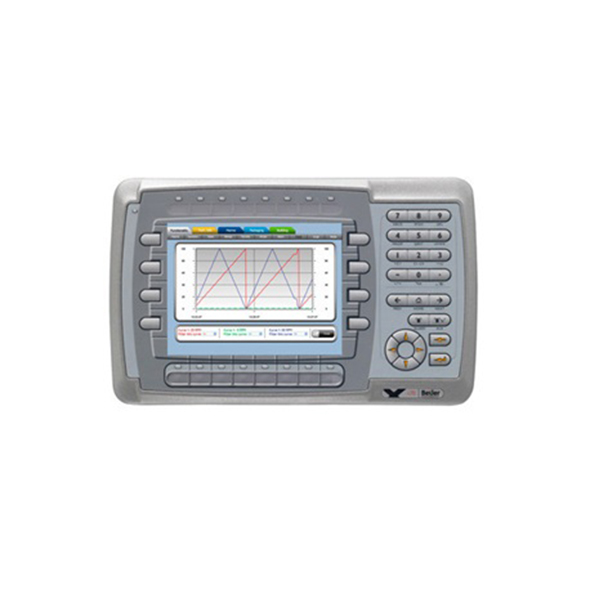

Beijer E1070 is a 6,5'' - 640 x 480 pixel TFT keypad HMI.
Enjoy the ease of online inquiries for
the Beijer E1070 keypad HMI. You can submit your inquiry on our website and get the most friendly
communication with our experts to choose high-quality industrial automation
products at a reasonable price from our Middle East branches (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman).
| Operator panels : Communication serial | |
| Number of serial ports | 1 Port 9pin DSUB/1 Port 25 pin DSUB |
| Serial port 1 | RS 232 (RTS/CTS) |
| Serial port 2 | RS422 (RTS)/RS485 |
| Operator Panels : Ethernet communication | |
| Number of ethernet ports | 1 |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
| Operator Panels : Power Requirements | |
| Input voltage | 20 - 30 V DC |
| Power consumption (max) | 9,6 W |
| Input fuse | Internal DC fuse, 3.15 AT |
| Operator Panels : Display | |
| Size diagonal | 6.5 inch |
| Resolution | 640 x 480 pixels |
| Backlight | CCFL with dimming |
| Backlight life time | 50,000 hrs |
| Backlight brightness | 350 cd/m2 |
| Display type | TFT CCFL |
| Operator Panels : Physical Characteristics | |
| Mechanical size | 285 x 177 x 62 mm |
| Cut-out size | 246 x 139 mm |
| Weight | 1.4 kg |
| Housing | Powder-coated aluminum, grey |
