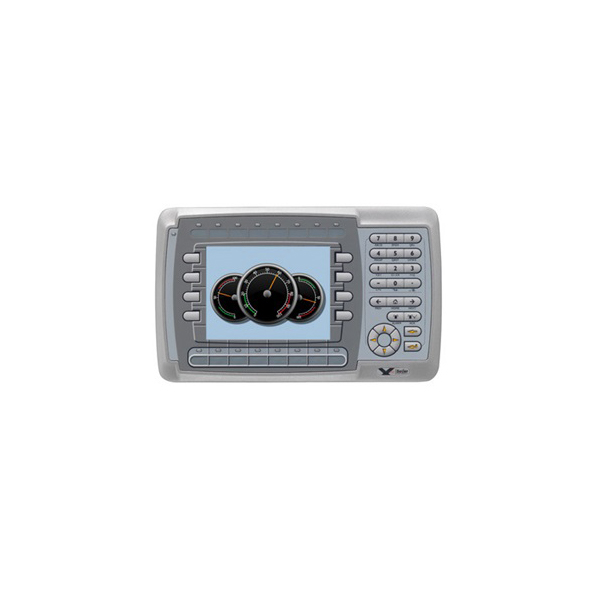

Beije E1062 is a 5.7'' monochrome TFT keypad HMI.
Inquire about the Beijer E1062 keypad HMI, designed for
industrial automation solutions. Feel free to get in touch with our sales team
to give you the best solutions at the best global price in the Middle East (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
| Operator panels : Communication serial | |
| Number of serial ports | 1 Port 9pin DSUB/1 Port 25 pin DSUB |
| Serial port 1 | RS 232 (RTS/CTS) |
| Serial port 2 | RS422 (RTS)/RS485 |
| Operator Panels : Ethernet communication | |
| Number of ethernet ports | 1 |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
| Operator Panels : Power Requirements | |
| Input voltage | 20 - 30 V DC |
| Power consumption (max) | 6 W |
| Input fuse | Internal DC fuse, 2.0 AT |
| Operator Panels : Display | |
| Size diagonal | 5.7 inch |
| Resolution | 320 x 240 pixels |
| Backlight | CCFL with dimming |
| Backlight life time | 58,000 hrs |
| Backlight brightness | 350 cd/m2 |
| Display type | TFT CCFL |
| Operator Panels : Physical Characteristics | |
| Mechanical size | 275 x 168 x 63.3 mm |
| Cut-out size | 240 x 130 mm |
| Weight | 1.2 kg |
| Housing | Powder-coated aluminum, grey |
