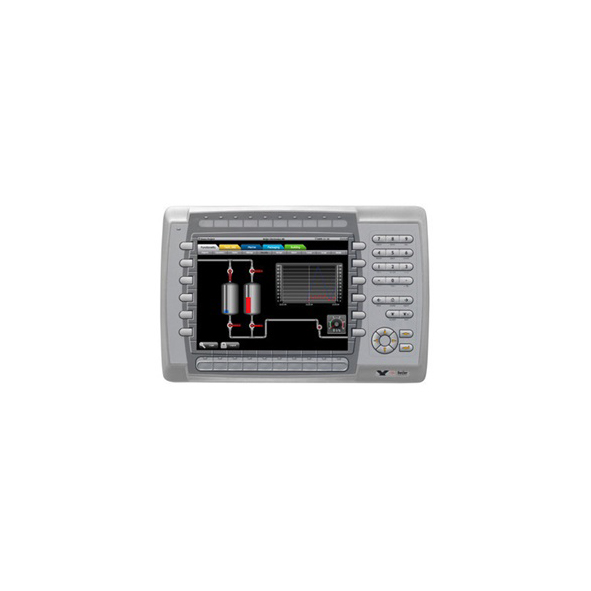

Beijer E1100 is a 10,4'' - 800 x 600 pixel TFT keypad HMI.
Experience the convenient way to
purchase the Beijer E1100 keypad HMI in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman). Our sales experts will provide the most helpful information about the
price and sale conditions for a wonderful buying experience.
| Operator panels : Communication serial | |
| Number of serial ports | 1 Port 9pin DSUB/1 Port 25 pin DSUB |
| Serial port 1 | RS 232 (RTS/CTS) |
| Serial port 2 | RS422 (RTS)/RS485 |
| Operator Panels : Ethernet communication | |
| Number of ethernet ports | 1 |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
| Operator Panels : Power Requirements | |
| Input voltage | 20 - 30 V DC |
| Power consumption (max) | 12 W |
| Input fuse | Internal DC fuse, 3.15 AT |
| Operator Panels : Display | |
| Size diagonal | 10.4 inch |
| Resolution | 800 x 600 pixels |
| Backlight | CCFL with dimming |
| Backlight life time | 50,000 hrs |
| Backlight brightness | 350 cd/m2 |
| Display type | TFT CCFL |
| Operator Panels : Physical Characteristics | |
| Mechanical size | 382 x 252 x 64 mm |
| Cut-out size | 343 x 208 mm |
| Weight | 2.5 kg |
| Housing | Powder-coated aluminum, grey |
