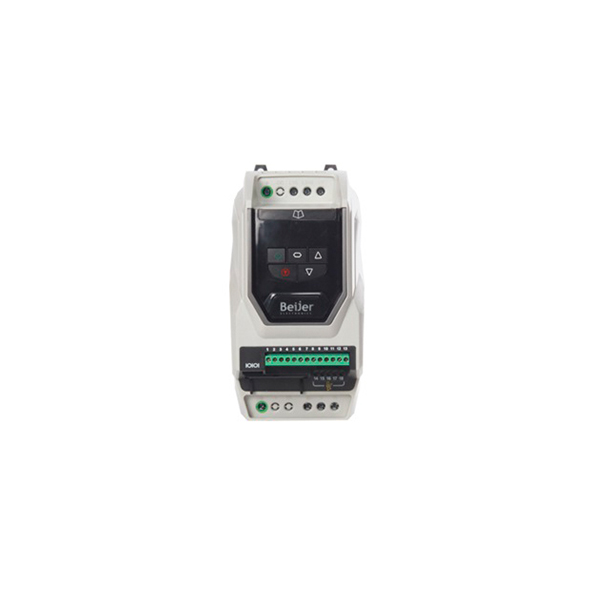

Beijer BFI-H3-24-0095-3F12-SN Frequency Inverter

Beijer BFI-H3-24-0095-3F12-SN Frequency Inverter
Beijer BFI-H3-24-0095-3F12-SN Frequency Inverter

  • Output power 4.0 kW
  • Output 3x400 VAC, 9.5 A
  • Input voltage 3x380-480 VAC
  • IP20

  • Brand: BEIJER
  • Model: BFI-H3-24-0095-3F12-SN
0 reviews • Write a review
  • Operating Temperature (-10 to 50°C)
  • Relative Humidity (max. 95% without condensation)
  • IP protection (IP20)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BFI-H3-22-0043-1F12-SN Frequency Inverter
Quickview
Beijer BFI-H3-22-0043-1F12-SN Frequency Inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BFI-H3-22-0043-3F12-SN Frequency Inverter
Quickview
Beijer BFI-H3-22-0043-3F12-SN Frequency Inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BFI-H3-22-0070-1F12-SN Frequency Inverter
Quickview
Beijer BFI-H3-22-0070-1F12-SN Frequency Inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BFI-H3-22-0070-3F12-SN Frequency Inverter
Quickview
Beijer BFI-H3-22-0070-3F12-SN Frequency Inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BFI-H3-22-0105-1F12-SN Frequency Inverter
Quickview
Beijer BFI-H3-22-0105-1F12-SN Frequency Inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BFI-H3-22-0105-3F12-SN Frequency Inverter
Quickview
Beijer BFI-H3-22-0105-3F12-SN Frequency Inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BFI-H3-24-0022-3F12-SN Frequency Inverter
Quickview
Beijer BFI-H3-24-0022-3F12-SN Frequency Inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BFI-H3-24-0041-3F12-SN Frequency Inverter
Quickview
Beijer BFI-H3-24-0041-3F12-SN Frequency Inverter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

BFI H3 includes IP20, IP55, and IP66 inverters for HVAC, maritime, and other industrial applications, and set a new cost-competitive standard for dedicated fan and pump control. Ease-of-use and innovative design combined with robust performance provide powerful flow control and reliability in a compact drive.


You can Buy the Beijer BFI-H3-24-0095-3F12-SN Frequency Invertervia inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

frequency inverters : Output ratings
Output voltage 3 x 400 VAC
Rated motor current 9.5 A
Overload capacity 110% for 60 seconds, 125% for 3 seconds
Output frequency 0 – 250Hz, 0.1Hz resolution
frequency inverters : Input ratings
Supply voltage 380 – 480VAC ± 10%
Supply frequency 48 – 62Hz
Power cycles 120 per hour maximum, evenly spaced
frequency inverters : Communication
Modbus RTU 9.6 - 115.2 kbps selectable (8N1, 8N2, 8E1, 8O1)
BACnet MS/TP Built-in
Modbus TCP Yes, the external option
Ethernet IP Yes, the external option
EtherCat Yes, the external option
Profinet IO Yes, the external option
Profibus DP(DPV1) Yes, the external option
Device Net Yes, the external option
CC-Link Yes, the external option
CAN open No
frequency inverters : Display
Programmable display No
Multi language OLED display No
External OLED display Yes
LED display Yes
frequency inverters : HVAC
PID-control Yes with sleep/wake up functionality
Spin start Yes
Pump dry protection Yes
Stir function Yes
Motor pre-heat Yes
Broken impeller and broken belt detection Yes
Automatic cleaning for pumps Yes
Bypass control Yes
Fire mode Yes
frequency inverters : Control terminals
Power supply 100 mA @ 24 VDC, 20 mA @ 10 VDC
Inputs 5 in total, 3 Digital, 2 Analog or Digital, selectable
Digital inputs 10-30 V DC, PNP, Response time: < 4 msec, Internal or external supply
Analog inputs Resolution:12 bit, Response time: <4 msec; Accuracy: <± 2% of full scale, Adjustable scaling
Relay outputs Maximum Voltage: 250 VAC, 30 VDC Switching Current Capacity: 6A AC, 5A DC
Analog outputs 0 to 10 Volt, 0 to 20mA, 4 to 20mA
Outputs 4 total, 2 relays, 2 analog or digital
frequency inverters : Standard compliances
Conformance CE, UL
Marine approvals No
Earth leakage current EN 61800-5-1: 2007. Test techniques EN 60990:2000. 1x230 VA < 2,5 mA, 3x400VAC < 4,65 during runing
Dielectric strength 61800-5-1: 2007
Surge EN 61800-3: 2004+A1-2012. Test techniques EN 61000-4-5:2006.
frequency inverters : Physical Characteristics
IP class IP20
Physical size Size 2
Measurements (H x W x D) 221 mm x 110 mm x 185 mm
Weight 1.8 kg
Built in Main switch, control switch and potentiometer No
Conformal coated PCBs Yes
Operation temperature -10 to 50 °C
Humidity 95% max, non-condensing
