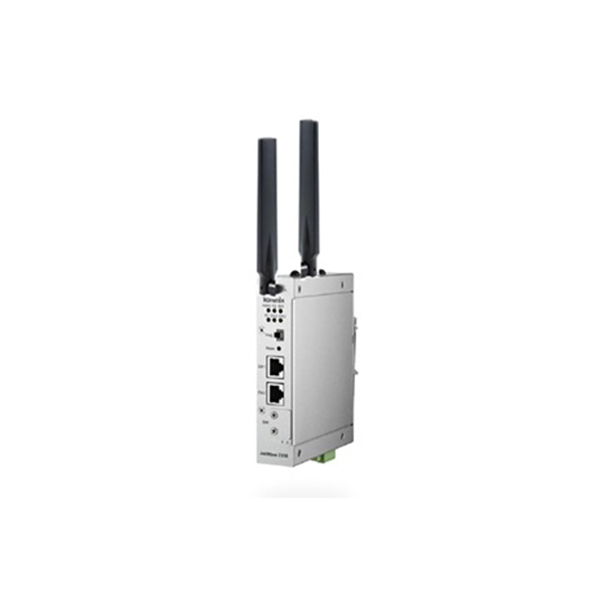

The JetWave 2310/2311 series is a slim size industrial-grade secure Cellular Router/IP Gateway for the Ethernet to cellular machine-to-machine (M2M) communication market. The JetWave 2310/2311 Series is equipped with one embedded 3G or LTE module, dual SIM standby for carrier provider redundant, and 2 Gigabit Ethernet ports for routing or switching. With the next-generation Long Term Evolution (LTE) technology, it supports up to 100Mbps DL and 50Mbps UL high-speed bandwidth for cellular communication.
JetWave 2311 series is equipped with one additional 802.11n 2.4G WIFI as cellular traffic offload and local access solution, it reduces a lot of connecting costs. The cellular router/gateway also supports remote management, secure connectivity, firewall/NAT features. The OPC UA is designed for industrial M2M communication, a popular protocol for industrial automation and M2M application. The industrial-grade design supports dual 24V(12-48V)DC input, Digital Output, wide operating temperature, and heavy industrial-grade environment protection.
Discover industrial automation
solutions appropriate to your needs, and easily inquire about the Beijer JetWave 2310-LTE 3G - 4G Router through
our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman).
| 3g modem : Interface | |
| Memory card slot for storage | No |
| MicroUSB | No |
| SIM card slot | Yes : 2 (Dual SIM Standby) |
| WAN | No |
| Ethernet Ports | 2x 100/1000Base-T(X) RJ-45 |
| USB | No |
| FXO / FXS | No |
| DSL | No |
| Digital Input and Output | 1xDO |
| Serial port | No |
| Alert Output | - |
| 3g modem : Radio specifications | |
| Standards and Wireless Standards | No |
| 2G , 3G , 4G Standards | UMTS, HSPA, HSPA+, LTE |
| WiFi Antenna | No |
| 4G / 3G / 2G Antenna | External SMA Female connector |
| WiFi Gain Antenna | No |
| 4G / 3G / 2G Gain Antenna | - |
| Maximum WiFi data transfer speed | No |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | - |
| Maximum data transfer speed of 4G | 100Mbps DL and 50Mbps UL |
| WiFi Radio Frequency | No |
| 2G network frequency | GSM/GPRS/EDGE: 900/1800 MHz |
| 3G network frequency | UMTS/HSPA+: 900/1800/2100 MHz, FDD-Band (8,3,1) |
| 4G network frequency | LTE: 800/900/1800/2600 MHz, FDD-Band (20,8,3,7) |
| Number of radio channels | No |
| Maximum direct range | - |
| Maximum WiFi Output Power | No |
| Radio Channel Bandwidth | No |
| 3g modem : Software Specifications | |
| VPN | Open VPN Client, 1-1 Open VPN Server |
| Firewall | Firewall Setting, DMZ, Port forwarding |
| WPS | No |
| Cloud computing feature | No |
| Serial performance | No |
| Management | Web GUI, Telnet, SNMP, IP Setup, Management VLAN ID, Configuration Backup/Restore, Firmware Upgrade, Reload Default, Ping, DO Events, DO Alarms, SNTP |
| 3g modem : General | |
| Operating mode | Cellular Router/Gateway |
| 3g modem : Standards and protocols | |
| Protocols | SNMP, SNTP |
| 3g modem : Features and capabilities | |
| 3G phone calls | - |
| Send and receive SMS | - |
| 3g modem : Security | |
| Security and Encryption | Secured Access : HTTPS; SSH; IEEE 802.1X; Radius Server, Firewall : Firewall Setting; DMZ;Port forwarding, VPN : Open VPN Client; 1-1 Open VPN Server |
| Authentication | - |
| Serial security | No |
| SSID | - |
| 3g modem : Power Requirements | |
| Power Consumption (Output Adapter) | Standby Mode: 2.64W (Power on only), Full Load: Max. 6.24 Watts |
| POE Support | - |
| Battery | No |
| Type of power input | - |
| 3g modem : Physical Characteristics | |
| Dimensions | 140 mm(H) x 110 mm(D) x 33 mm(W) |
| Weight | 600g with package |
| Operating Temperature | -25 ~ 70℃ |
| Storage Temperature | -40 ~ 85 ℃ |
| Type of Use | Industrial environment |
| Standards and Certifications | R&TTE : CE EN55022/55024; EN 61000-6-2/4 Industrial Environment; EN 301 489-1/17/24; EN 301 908-1; EN 300 328 V1.8.1; EN50385/EN62311 MPE assessment, Safety EN60950-1, FCC Part 15B (JetWave 2316-LTE-U) |
