These PIANO series units are extraordinarily compact, industrial grade power supplies that focus on the essential features needed in today’s industrial applications. The excellent cost/performance ratio presents many new and exciting opportunities without compromising quality or reliability.
The mechanically robust housing is made of a highgrade, reinforced molded material, which permits the units to be used in surrounding temperatures up to 70°C. Since typical industrial applications do not require multiple mains inputs, the reduction to a regional input voltage range (AC 200-240V) simplifies the circuitry and has significant advantages for reliability, efficiency and cost.
The addition of a DC-OK signal makes the unit suitable for many industry applications such as: process, automation and many other critical applications where preventive function monitoring can help to avoid long downtimes.

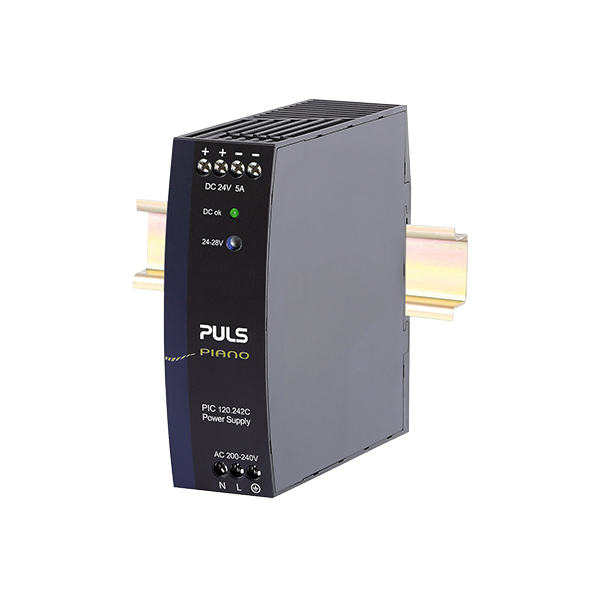

You can place an order for the PULS PIC120.242C DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| DIN-rail Power supply : Input Data | |
| AC-Input Voltage | AC 200-240V (± 10%) |
| DC-Input Voltage | - |
| EN61000-3-2(PFC-Norm) | not fulfilled |
| Power Factor | 0.54 |
| Input Inrush Current Limitation | NTC |
| Peak turn on current | 28A |
| External Input Fuse Recommendation | min. B - 10A / C - 6A |
| DIN-rail Power supply : Output Data | |
| nominal Voltage | 24Vdc |
| Adjustment Range | 24-28V |
| Output Current Range | 5-4.3A |
| Output Current | 4.3A at 28V, 5A at 24V |
| Output Power | 120W |
| max. Ripple and Noise Voltage | 100mVpp |
| DIN-rail Power supply : General | |
| Derating | 3W/° at +55 to +70°C |
| Efficency, typ. | 90.5% |
| Power Losses, typ. | 12.6W |
| Connection method | Screw terminals |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| DIN-rail Power supply : Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 39mm x 124mm x 124mm |
| Weight | 350g |
| Operating Temperature | -10°C ... +70°C |
| MTBF | 1.720.000h |
| DIN-rail Power supply : Package Checklist | |
| Packaging Unit | 1pc |
