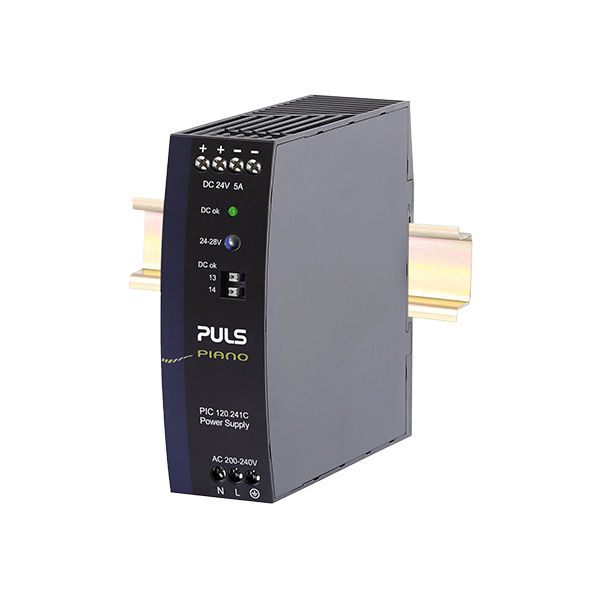

PULS PIC120.241C DIN-rail Power supply

PULS PIC120.241C DIN-rail Power supply
PULS PIC120.241C DIN-rail Power supply

  • Cost-optimized power supply without compromising quality or reliability
  • 200-240V Regional input voltage, efficiency up to 90,5%
  • DC-OK relay contact included
  • Rugged housing made of a high-grade, reinforced molded material
  • Full output power between -10 and +55°C
  • Extraordinarily compact, width only 39mm

  • Brand: PULS
  • Model: PIC120.241C
0 reviews • Write a review
Datasheet
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
PULS CPS20.121 DIN-rail Power supply
Quickview
PULS CPS20.121 DIN-rail Power supply
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
PULS ML15.241 DIN-rail Power supply
Quickview
PULS ML15.241 DIN-rail Power supply
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
PULS ML50.105 DIN-rail Power supply
Quickview
PULS ML50.105 DIN-rail Power supply
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
PULS ML60.121 DIN-rail Power supply
Quickview
PULS ML60.121 DIN-rail Power supply
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA DR-120-24 DIN-rail Power Supply
Quickview
MOXA DR-120-24 DIN-rail Power Supply
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA DR-120-48 DIN-rail Power Supply
Quickview
MOXA DR-120-48 DIN-rail Power Supply
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA DR-4524 DIN-Rail Power Supply
Quickview
MOXA DR-4524 DIN-Rail Power Supply
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA DR-75-24 DIN-rail Power Supply
Quickview
MOXA DR-75-24 DIN-rail Power Supply
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

These PIANO series units are extraordinarily compact, industrial grade power supplies that focus on the essential features needed in today’s industrial applications. The excellent cost/performance ratio presents many new and exciting opportunities without compromising quality or reliability.

The mechanically robust housing is made of a highgrade, reinforced molded material, which permits the units to be used in surrounding temperatures up to 70°C.

Since typical industrial applications do not require multiple mains inputs, the reduction to a regional input voltage range (AC 200-240V) simplifies the circuitry and has significant advantages for reliability, efficiency and cost.

The addition of a DC-OK signal makes the unit suitable for many industry applications such as: process, automation and many other critical applications where preventive function monitoring can help to avoid long downtimes.


You can place an order for the PULS PIC120.241C DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

DIN-rail Power supply : Input Data
AC-Input Voltage AC 200-240V (± 10%)
DC-Input Voltage -
EN61000-3-2(PFC-Norm) not fulfilled
Power Factor 0.54
Input Inrush Current Limitation NTC
Peak turn on current 28A
External Input Fuse Recommendation B - 10A / C - 6A
DIN-rail Power supply : Output Data
nominal Voltage 24Vdc
Adjustment Range 24-28V
Output Current Range 5-4.3A
Output Current 4.3A at 28V, 5A at 24V
Output Power 120W
max. Ripple and Noise Voltage 100mVpp
DIN-rail Power supply : General
Derating 3W/° at +55 to +70°C
Efficency, typ. 90.5%
Power Losses, typ. 12.6W
Connection method Screw terminals
DC-OK Signal yes
E Classification eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082
DIN-rail Power supply : Physical Characteristics
Mounting DIN-Rail
Dimension 39mm x 124mm x 124mm
Weight 350g
Operating Temperature -10°C ... +70°C
MTBF 1.720.000h
DIN-rail Power supply : Package Checklist
Packaging Unit 1pc
