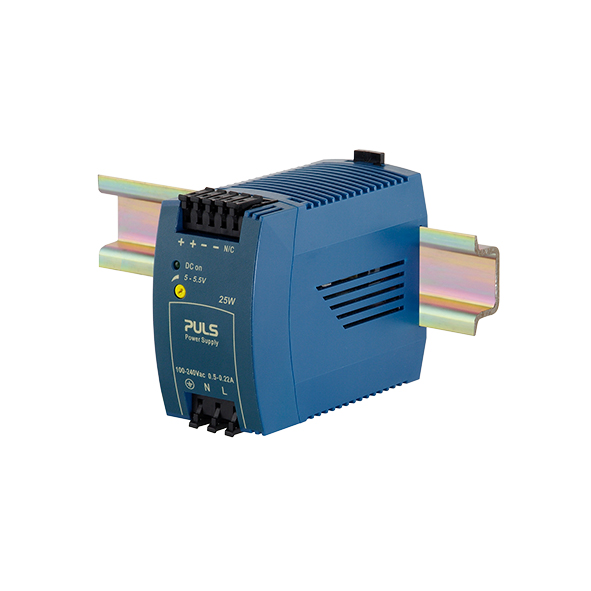

| DIN-rail Power supply : Input Data | |
| AC-Input Voltage | AC 100-240V (-15%/+10%) |
| DC-Input Voltage | DC 110V-300V (-20%/+25%) |
| EN61000-3-2(PFC-Norm) | fulfilled |
| Power Factor | 0.44 |
| Input Inrush Current Limitation | NTC |
| Peak turn on current | 17A/35A |
| External Input Fuse Recommendation | min. B-10A / C-6A |
| DIN-rail Power supply : Output Data | |
| nominal Voltage | 5Vdc |
| Adjustment Range | 5-5.5V |
| Output Current Range | 0A |
| Output Current | - |
| Output Power | 25W |
| max. Ripple and Noise Voltage | 50mVpp |
| DIN-rail Power supply : General | |
| Derating | 0.5W/° at >+60°C |
| Efficency, typ. | 80.0% |
| Power Losses, typ. | 6.3W |
| Connection method | Spring-clamp terminals |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| DIN-rail Power supply : Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 45mm x 75mm x 91mm |
| Weight | 240g |
| Operating Temperature | -10°C ... +70°C |
| MTBF | 1.963.000h |
| DIN-rail Power supply : Package Checklist | |
| Packaging Unit | 1pc |
