The DIMENSION C-Line units are cost optimized power supplies without compromising quality, reliability and performance. The C-Line is part of the DIMENSION power supply family, existing alongside the high featured Q-Line.

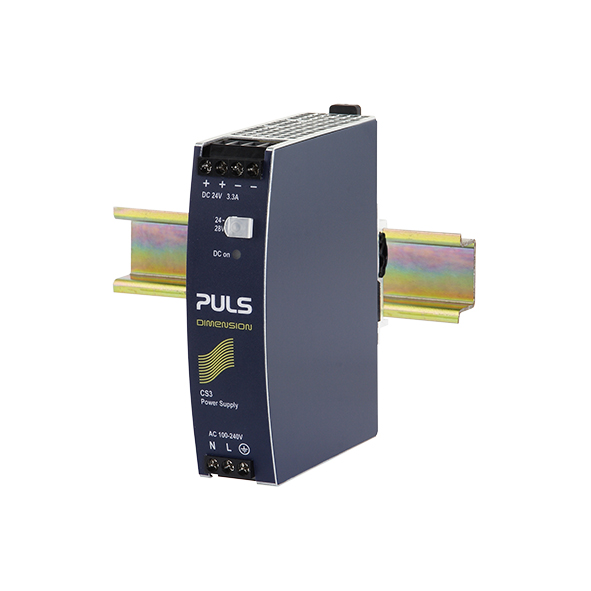

The CS3.241 includes all the essential basic functions but also includes important features of small size, high efficiency, wide temperature range and is NEC Class 2 compliant.
The wide range input makes worldwide installation and usage very simple. Defects or system failures caused by wrongly set switches cannot occur. High immunity to transients and power surges as well as low electromagnetic emission and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
You can place an order for the PULS CS3.241 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| DIN-rail Power supply : Input Data | |
| AC-Input Voltage | AC 100-240V (± 10%) |
| DC-Input Voltage | DC 110V-300V (-20%/+25%) |
| EN61000-3-2(PFC-Norm) | fulfilled |
| Power Factor | 0.56 |
| Input Inrush Current Limitation | NTC |
| Peak turn on current | 23A/45A |
| External Input Fuse Recommendation | min. B-10A / C-6A |
| DIN-rail Power supply : Output Data | |
| nominal Voltage | 24Vdc |
| Adjustment Range | 24-28V |
| Output Current Range | 3.3-2.7A |
| Output Current | 2.7A at 28V, 3.3A at 24V |
| Output Power | 80W |
| max. Ripple and Noise Voltage | 50mVpp |
| DIN-rail Power supply : General | |
| Derating | 1.8W/° at >+60°C |
| Efficency, typ. | 89.8% |
| Power Losses, typ. | 9.1W |
| Connection method | Screw terminals |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| DIN-rail Power supply : Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 32mm x 124mm x 102mm |
| Weight | 430g |
| Operating Temperature | -25°C ... +70°C |
| MTBF | 2.243.000h |
| DIN-rail Power supply : Package Checklist | |
| Packaging Unit | 1pc |
