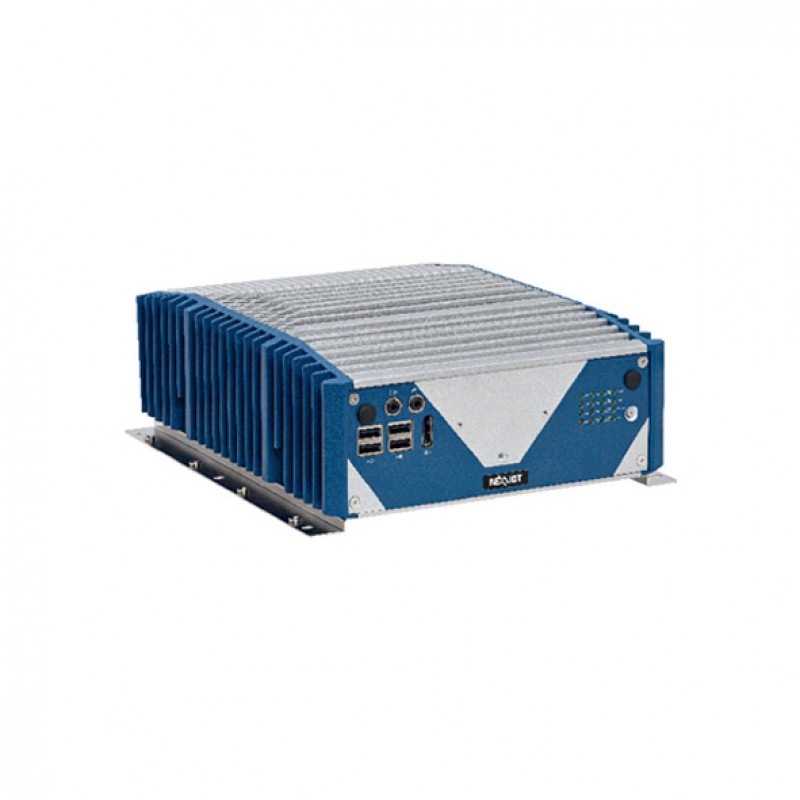

Nexcom NISE 3910R Fanless Computer
- Support 12/13th Gen Intel® Core™ i3/i5/i7/i9 LGA1700 socket type embedded processor
- Intel® Q670E PCH
- Support 2 x DDR5 SO-DIMM socket, up to 64GB
- Four Intel® i226-IT LAN ports, support WoL, teaming, and PXE
- 1 x DP, 1 x HDMI, and 1 x VGA with independent display
- 1 x M.2 3042/3052 Key B support LTE/5G module
- 1 x Outside accessible M.2 2242 Key M with PCIe x4, support NvME
- 6 x USB 3.2 Gen 1, 4 x USB 2.0
- 2 x Isolated RS232/422/485 with auto-flow
- 1 x mini-PCIe slot, support optional Wi-Fi, 3.5G, 4G LTE, mSATA
- 2 x 2.5” SATA HDD/SSD
- TPM 2.0 default onboard
Description
Integrated with 12/13th Gen Intel® Core™ i9/i7/i5/i3
processors, the NISE 3910 series is the fanless PC designed for industrial
automation and edge computing which demand high CPU and graphics performance.
NISE 3910 series supports up to 64G DDR5 memory and has several options on
storage devices like M.2, HDD or SSD, and mSATA. NISE 3910 series supports a wide
range of DC input from +12V to 30V DC input and can be operated in an extended
operating temperature range between -20 to 60°C. For extended module availability, the NISE 3910 series also designed one internal mini-PCIe socket to support IoT
wireless connectivity applications (support optional Wi-Fi, 3.5G, 4G LTE
modules).
You can also find the NISE 3910E model in the Marine Computer.
Inquire about the Nexcom NISE 3910R Fanless Computer, designed for industrial automation
solutions. Feel free to get in touch with our sales team to give you the best
solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al
Khobar, Riyadh), and Oman).
Specification
| General | |
|---|---|
| CPU Support | Support 12/13th Gen. Intel® Core™i3/i5/i7/i9 LGA1700 socket type embedded processors, Intel® Core™ i9-13900TE, 8P+16E, 1.0GHz, 36M Cache, Intel® Core™ i7-13700TE, 8P+8E, 1.1GHz, 30M Cache,Intel ® Core™ i5-13500TE, 6P+8E, 1.3GHz, 24M Cache,Intel ® Core™ i3-13100TE, 4P+4E, 2.4GHz, 12M Cache, Intel® Core™ i9-12900TE, 8P+8E, 1.1GHz, 30M Cache,Inte l® Core™ i7-12700TE, 8P+4E, 1.4GHz, 25M Cache, Intel® Core™ i5-12500TE, 6P+6E, 1.9GHz, 18M Cache,Intel® Core™ i3-12100TE, 4P+4E, 2.1GHz, 12M Cache |
| Main Memory | 2 x DDR5 SO-DIMM socket, up to 64GB |
| Interface | |

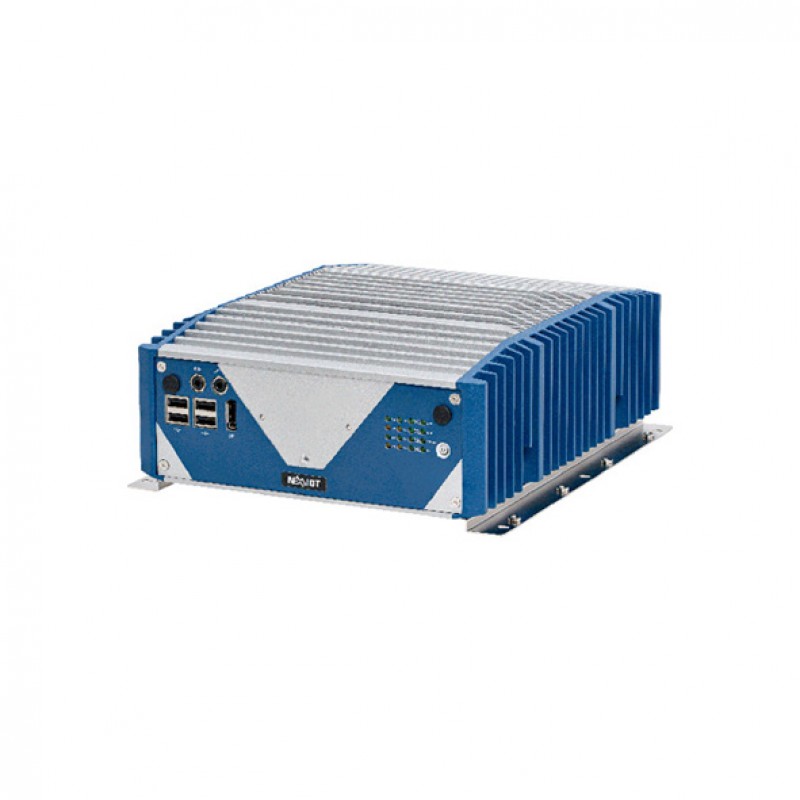

| I/O Interface-Front | 1 x ATX power on/off switch LED indicators: 4 x LAN active, 1 x GPO status,4 x C OM Tx/Rx, 1 x HDD/SSD status,1 x B attery low, 1 x M.2, 1 x DP, 2 x Antenna holes,1 x Outside accessible M.2 2242 Key M ( PCIe x4, SATA),1 x SIM card holder,4 x USB 2.0 Type A (500mA/port),1 x Line out and 1 x mic-in |

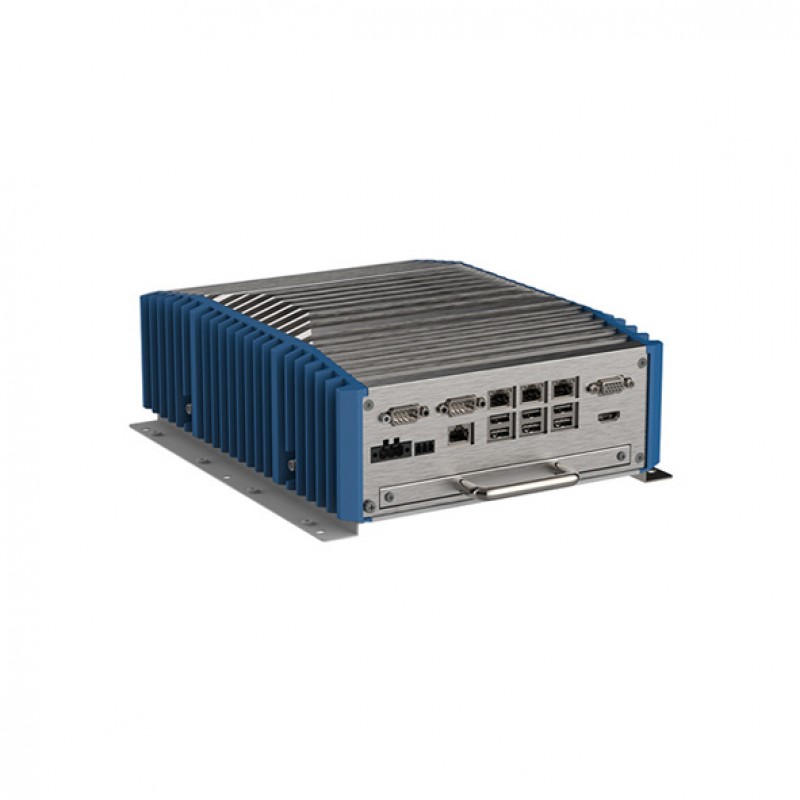

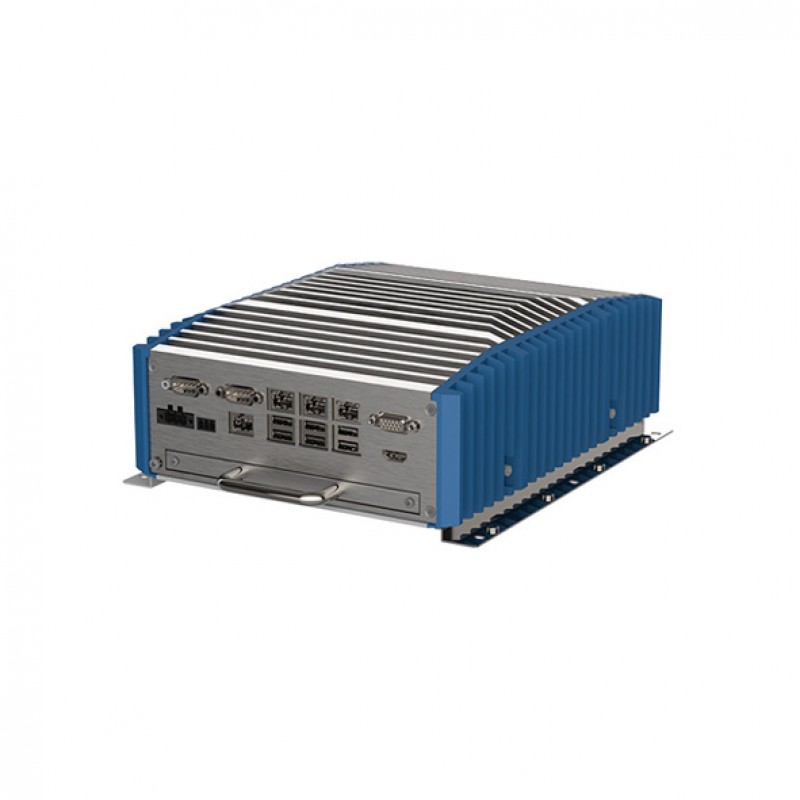

| I/O Interface-Rear | 1 x HDMI, 1 x VGA port,6 x US B 3.2 Gen1 Type A (900mA per each),4 x Intel® I226-IT 2.5GbE LAN ports; support WoL, teaming & PXE,2 x I solated RS232/422/485,1 x 3-pin DC input, support +12 to 30VDC input,1 x 3- pin remote power on/off switch |
| Power Requirements | |
| Power Requirements | AT/ATX power mode (Default ATX mode), Power input: +12 to 30 VDC |
| Physical Characteristics | |
| Dimensions | 215mm (W) x 272mm (D) x 102mm (H) without wall-mount bracket (8.46” x 10.7” x 4.02”) |
| Housing | Aluminum chassis with fanless design |
| Humidity | 10% to 95% (non-condensing) |
| Shock Protection | Shock protection: HDD: 20G@wallmount, half sine, 11ms(operation), IEC600682-27, SSD: 50G@wallmount, half sine, 11ms(operation), IEC600682-27 |
| Vibration Protection | Vibration protection w/ HDD condition: Random: 0.5Grms@5~500Hz, IEC60068-2-64, Sinusoidal: 0.5Grms@5~500Hz, IEC60068-2-6, Vibration protection w/ SSD condition: Random: 2Grms@5~500 Hz, IEC60068-2-64, Sinusoidal: 2Grms@5~500 Hz, IEC60068-2-6 |
| Standards and Certifications | CE, FCC Class A, UL |
| Compatible Operating Systems | |
| OS Support List | Windows 10 IoT Enterprise, 64-bit Windows 11 |
