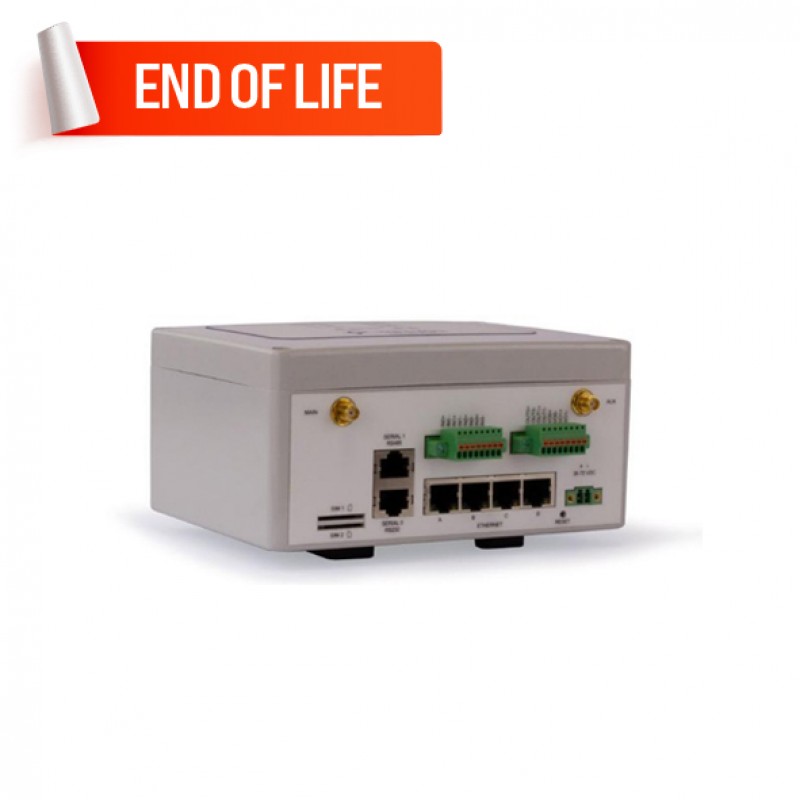

Westermo GW2024PW-4E-GPIO-QFR-DC24 Industrial 4G LTE Router with Mini RTU
- Integrated mini RTU controllable from a SCADA master
- Protocol Gateway IEC 101, IEC 61850, IEC 104, Modbus, DNP3
- Supports 2 x SMA female antenna sockets
- Supports antenna Rx diversity in 2G or 3G modes and MIMO in LTE mode
- Two, four, or eight 10/100 Mbps base-T Ethernet ports (RJ-45 connector)
- 1 x RS-232 and 1 x RS-485 console ports (RJ-45 connector)
- 18- 60V DC isolated input power range (6W maximum)
- DIN-rail mount installation design
- -40 to +70 °C operating temperature range
Description
The Virtual Access GW2024P Series router is an IP-rated, ruggedized router suitable for high isolation scenarios such as electrical transformation centers, substations, and outdoor cabinets. It is a DIN rail or wall mountable. Applications include SCADA, telemetry, transportation, emergency services, and other critical infrastructure. The GW2024P Series router offers up to eight Ethernet ports and supports LTE. State-of-the-art VPN encryption secures all communication, ensuring the highest level of integrity over private APNs or public internet.
Mini RTU
The GW2024P functions as a mini RTU, meaning there are reduced deployment and operational costs as the RTU and router functionality are integrated into one device.
SCADA Protocol Conversion
SCADA protocol conversion allows utilities to consolidate SCADA protocols to a single protocol at the master without the need to upgrade RTUs remotely.
Connection Monitoring & Dual SIM
The connection monitor ensures the GW2024P Series router delivers maximum availability so long as the cellular network is available. For critical applications, a dual SIM architecture ensures that a backup LTE network can take over should the primary network fail.
End of Life Product - No Replacement
Please note that the GW2024P Series has been phased out. You can explore the GW1042M-X-QFR-DCn0936, GW2304-PE4-2DI2O-QFR, GW1042M-QFR-DCn0936, and GW1042W-X-QFR-DCi0936 in the Wireless Routers.
Inquire about the Westermo GW2024PW-4E-GPIO-QFR-DC24 Industrial 4G LTE Router with Mini RTU, designed for
industrial automation solutions. Feel free to get in touch with our sales team
to give you the best solutions at the best global price in the Middle East (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| SIM card slot | : 2 x micro SIM card sockets |
| Ethernet Ports | : Two, four, or eight 10/100 Mbps base-T Ethernet ports (RJ-45 connector) |
| USB | |
| Digital Input and Output | : 4 x dedicated inputs, 2 x dedicated outputs, 2 x configurable as input or output |
| Serial port | : 1 x RS-232 and 1 x RS-485 console ports (RJ-45 connector) |
| Alert Output | |
| Band Options | LTE FDD Bands: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B26/B28; LTE TDD Bands: B38/B39/B40/B41; WCDMA Bands: B1/B2/B4/B5/B8/B6/B19; GSM Bands: B2/B3/B5/B8 |
| Cellular Standards | 4G LTE, HSPA+, EDGE/GPRS |
| Cellular Antenna Connectors | 2 x SMA female antenna sockets, antenna Rx diversity in 2G or 3G modes and MIMO in LTE mode |
| WLAN Standards | - |
| WLAN Antenna Connector | |
| GPS Antenna Connector | |
| Radio specifications | |
| Radio Connection type | - |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | - |
| Maximum data transfer speed of 4G | Download up to 21 Mbps, Upload up to 5.76 Mbps |
| WiFi Radio Frequency | |
| Software Specifications | |
| Routing Redundancy | VRRP |
| VPN | IPSec VPN Options : IKE version 2, X.509 certificates, Elliptic Curve Cryptography (ECC), SHA2_512 support, PFS, SCEP, DH_8192 |
| Firewall | NAT, Port Forwarding, Packet filtering |
| Time Management | |
| Management | Automatic configuration using Activator server, HTTP/HTTPS, Command Line Interface via Telnet or SSH, TFTP client download/upload, SNMP agent, SMS management support |
| General | |
| LED Indicators | Booting, Power, Config, SIM, Signal, Ethernet |
| MTBF | - |
| Operating mode | Cellular LTE Router |
| Standards and protocols | |
| Protocols | HTTP, HTTPS, DHCP server & client, DynDNS, NAT, NAT Traversal, NTP Client, VLAN, BGPv4, OSPF, RIP, IPSec, L2TPv2, L2TPv3, GRE, DMVPN, SNMP v1/v2/v3, TLS 1.2, QoS, VRRP, VRF, Open VPN; Modbus RTU, Modbus TCP, DNP3, SCADA |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | IPSec and SSL |
| Authentication | 802.1x authentication |
| Power Requirements | |
| Power Connector | - |
| Power Consumption (Output Adapter) | max 6W |
| Input Voltage | isolated 18-60V DC |
| POE Support | |
| Input Current | - |
| Reverse Polarity Protection | |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | DIN-rail mounting |
| Dimensions | 160W 75D 120H |
| Housing | - |
| Weight | 1200g |
| Operating Temperature | -40°C to +70°C |
| Storage Humidity | - |
| Storage Temperature | - |
| Type of Use | Industrial environments |
| Standards and Certifications | EN 60950 safety approval; EN 55022 and EN 55024 EMC; IEC 61000-4-2 severity level 3 Table 13 IEC 60870-2-1, 6 kV discharge; IEC 61000-4-3 severity level 3, Table 15 of IEC 60870-2-1, 10 V/m; IEC 61000-4-4 class 4 fast transients Immunity; IEC 61000-4-5 class 4 electrical surges Immunity; IEC 61000-4-6 class 3 conducted immunity; IEC 61000-4-8 severity level 3 Table 14 of IEC 60870-2, 30/300 A/m; IEC 61000-4-12 class 4 ring wave immunity Table 14 of IEC 60870-2, 30/300 A/m; IEC 61000-4-12 class 4 ring wave immunity; IP33; IEC 60870-5-104; IEC 60870-5-101; IEC 61850 |
