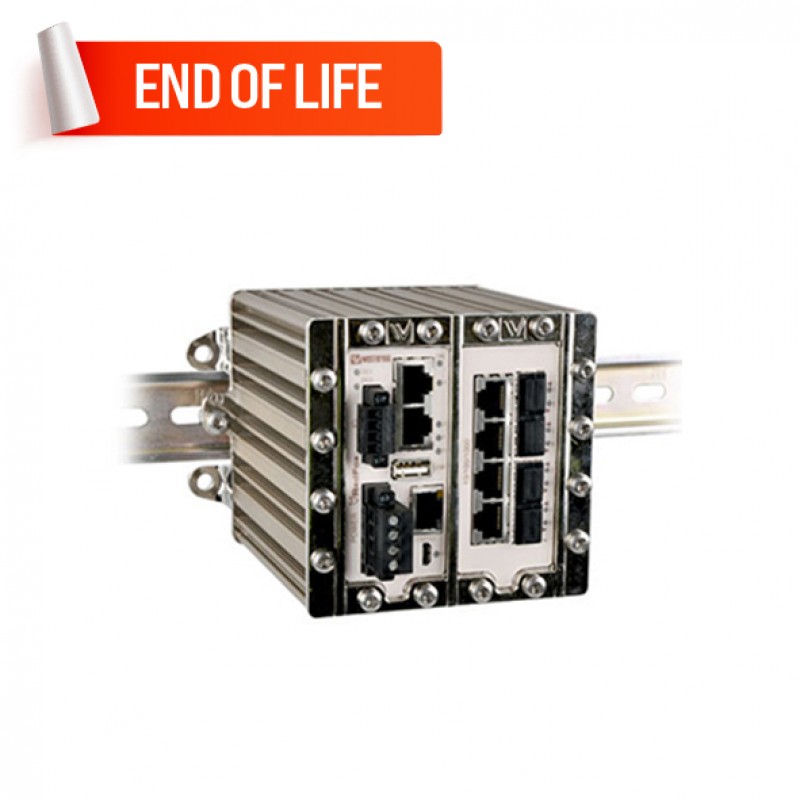

Westermo RFI-111-F4G-T7G Managed Ethernet Switch
- Layer 2 functionality switching
- 7 x 10/100/1000 Mbit/s TX Ports (RJ45)
- 4 x 100/1000 Mbit/s Ethernet FX or TX SFP ports
- 16 to 60 VDC operating voltage range
- Ultra-robust IP40 aluminum housing
- -40 to +70°C operating temperature range
.png)
Description
RedFox is a high-performance layer 2 industrial Ethernet switch designed for high network traffic applications. It is powered by WeOS, the Westermo operating system. Various port configurations are available that can be further customized with SFP transceivers. The RedFox is designed for use in heavy-duty industrial applications in its robust aluminium housing. Its wide
power range and I/O fault contact make it ideal for easy installation and
monitoring in industrial applications.
Only industrial-grade components are used, which gives RedFox an MTBF of 336,000 hours and ensures a long service life. With no moving parts or cooling holes in the case, a wide operating temperature range –40 to +70°C (–40 to +158°F) can be achieved. RedFox has been tested both by
Westermo and external test houses to meet many EMC, isolation, vibration, and
shock standards, all to the highest levels suitable for heavy industrial
environments and rail trackside applications.
End of Life Product - Replacement Available
Please note that the RFI-111-F4G-T7G has been phased out and replaced by the Lynx 5512-E-F4G-T8G-LV.
Experience the convenient way to
purchase the Westermo RFI-111-F4G-T7G Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman). Our sales experts will provide the most helpful information about the
price and sale conditions for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| Number of ports | 11 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 7 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 4 x 100/1000 Mbit/s Ethernet FX or TX SFP Ports (pluggable connections transceivers supported), 1 x Console Port (USB Micro-B connector), 1 x USB Port (USB 2.0 host interface), 1 x 4-ports Digital I/O ( detachable screw terminal) |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.87 (1.06) A @ 20 VDC, 0.35 (0.43) A @ 48 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | - |
| Operating Voltage | 16 to 60 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 336,000 hours |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 134 x 100 x 122 mm (5.25 x 3.93 x 4.80 in) |
| Housing | Aluminium |
| Installation | - |
| Operating Temperature | –40 to +70°C (–40 to +158°F), Maximum surface temperature: 135ºC (275ºF) (temperature class T4) |
| Operation Humidity | - |
| Standards and Certifications | MIL-HDBK-217K; IP40; EMC: EN 50121-4, Railway applications – Electromagnetic compatibility – Emission and immunity of the signalling and telecommunications apparatus, EN 61000-6-1, Electromagnetic compatibility – Immunity for residential, commercial and light-industrial environments, EN 61000-6-2, Electromagnetic compatibility – Immunity for industrial environments, EN 61000-6-3, Electromagnetic compatibility – Emission standards for residential, commercial and light industrial environments, EN 61000-6-4, Electromagnetic compatibility – Emission standard for industrial environments; Safety: UL/IEC/EN 60950-1, IT equipment; Marine: DNV GL rules for classification – Ships and offshore units |
| Storage Temperature | –50 to +85°C (–58 to +185°F) |
| Weight | 1.5 kg |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | - |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
