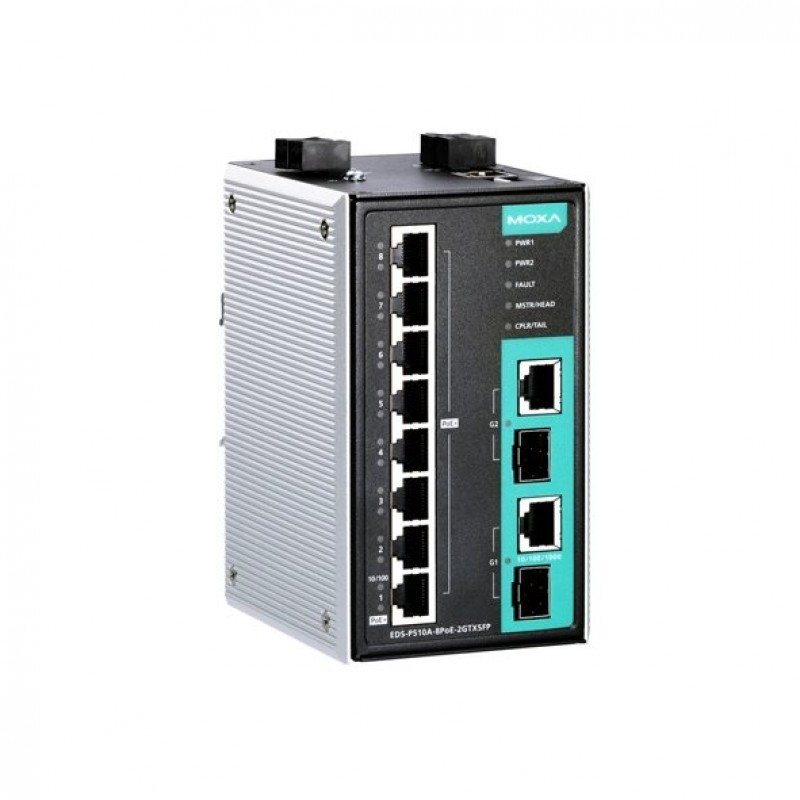

MOXA EDS-P510A-8PoE-2GTXSFP-T Managed Ethernet Switches
- 8 x PoE Ports (10/100BaseT(X), RJ45 connector)
- 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
- DIN-rail and wall mounting
- 48 VDC Redundant dual power inputs
- IP30-rated Metal body design
-40 to 75°C operating temperature
- Brand: MOXA
- Product Code: EDS-P510A-8PoE-2GTXSFP-T
.png)
Description
Moxa’s EDS-P510A Series has 8 10/100BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet ports, and 2 combo Gigabit Ethernet ports. The EDS-P510A-8PoE Ethernet switches provide up to 30 watts of power per PoE+ port in standard mode and allow the high-power output of up to 36 watts for industrial heavy-duty PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and IP phones. The EDS-P510A Ethernet Series is highly versatile, and the SFP fiber ports can transmit data up to 120 km from the device to the control center with high EMI immunity. The Ethernet switches support a variety of management functions, as well as STP/RSTP, Turbo Ring, Turbo Chain, PoE power management, PoE device auto-checking, PoE power scheduling, PoE diagnostic, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring. The EDSP510A Series is designed with 3 kV surge protection for harsh outdoor applications to increase the reliability of PoE systems
You can also find the EDS-P510A-8PoE-2GTXSFP model in the DIN-Rail Ethernet Switches.
Discover industrial automation
solutions appropriate to your needs, and easily
inquire about the MOXA EDS-P510A-8PoE-2GTXSFP-T Managed Ethernet Switches through our user-friendly website via one of our Middle
East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | : 8 Ports (RJ45 connector) |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+), 1 x RS-232 Console Port (10-pin RJ45 connector), 1 x Alarm Contact Channel, 1 x Digital Input Channel (Max. input current: 8 mA, +13 to +30 V for state 1, -30 to +3 V for state 0) |
| Features and capabilities | |
| Backup | : ABC-02 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 5.36 A @ 48 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 48 VDC |
| Operating Voltage | 44 to 57 VDC |
| Power Consumption | Max. 17.28 W full loading without PDs’ consumption |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 708,972 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 79.2 x 135 x 105 mm (3.12 x 5.31 x 4.13 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5% to %95 non-condensing |
| Standards and Certifications | Safety: UL 508; EMC: EN 55032/24; EMI CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: Class I Division 2; Railway: EN 50121-4; Traffic Control: NEMA TS2; Freefall: IEC 60068-2-31; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 1030 g (2.28 lb) |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, LACP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Protocols and management standards | Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP,SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
