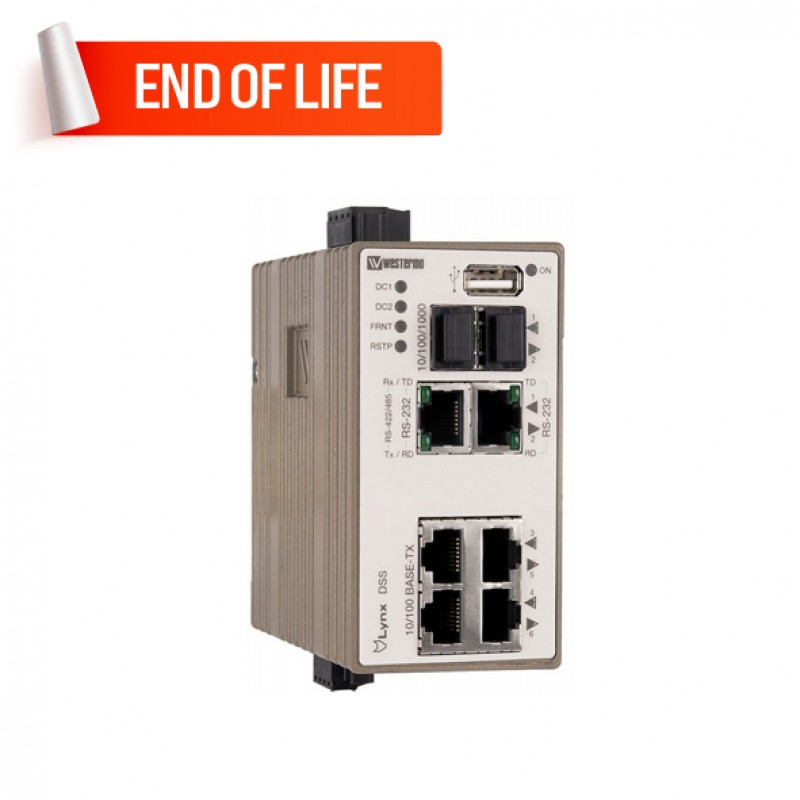

Westermo L108-F2G-S2-EX Managed Ethernet Switch

  • EX Approved Managed Device Server Switch
  • Layer 2 functionality switching
  • 4 x 10 Mbit/s, 100 Mbit/s Copper ports (RJ-45 connector)
  • 2 x 100/1000 Mbit/s SFP Ports, Ethernet FX (LC) or TX SFP (RJ-45)
  • 1 x RS-232 Port (50 bit/s – 115.2 kbit/s, RJ-45 connector)
  • 1 x RS-232/422/485 Port (50 bit/s – 2 Mbit/s, RJ-45 connector)
  • IP40-rated Zinc body material design
  • DIN rail mount installation
  • 24 to 48 VDC Redundant dual inputs (Wide Range 19 to 60 VDC)
  • -40 to +70°C operating temperature range

Description

The Lynx 108-EX is a layer 2 managed industrial Ethernet switch, powered by the Westermo WeOS network operating system.Independently tested for IECEX and ATEX by Baseefa, Lynx is the perfect solution for hazardous area applications in any part of the world.

Lynx is the most compact and has the lowest power requirements in this switch class. Lynx has 8 10/100 Mbit/s ports in addition to 2 ports which can be fitted with Gbit or 100 Mbit SFP transceivers. Only industrial-grade components are used, which gives the Lynx an MTBF of 517,000 hours and ensures a long service life.

A wide operating temperature range –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. Lynx has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.



End of Life Product - No Replacement

Please note that the L108-F2G-S2-EX has been phased out. You can explore the L108-F2G-S2, L108-F2G-S2-12VDC, L106-F2G, L206-F2G, and L208-F2G-S2-12VDC models in the Managed Ethernet Switches.


Easy World Automation offers the easiest way to buy the Westermo L108-F2G-S2-EX Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interface
Number of ports 8 Ports
10/100Mb RJ45 (Megabit) Ports : 4 Ports (or 10 Mbit/s)
10/100/1000Mb RJ45 (Gigabit) Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
100Mb SFP Fiber optic (Megabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports : 2 Ports, Ethernet FX (LC) or TX SFP (RJ-45)
10/100Mb (Megabit) POE Ports
10/100/1000Mb (Gigabit) POE Ports
Other ports : 1 x RS-232 Port (50 bit/s – 115.2 kbit/s, RJ-45 connector), 1 x RS-232/422/485 Port (50 bit/s – 2 Mbit/s, RJ-45 connector), 1 x USB 2.0 Port, 1 x Digital I/O cahnnel (4-position detachable screw terminal), 1 x Console Port (2.5 mm jack)
Features and capabilities
Backup
LED Indicators
LED Per Port
Power Requirements
Input Current 250 mA (380 mA) @ 24 VDC (with 500 mA USB load), 120 mA (188 mA) @ 48 VDC (with 500 mA USB load)
Power Input Plugin ( Redundant )
Input Voltage 24 to 48 VDC (with Galvanic isolation to all ports)
Operating Voltage 19 to 60 VDC
Power Consumption -
General
Fan / Fanless Fanless
MTBF MIL-HDBK-217K: 517,000 hours
Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation
Physical Characteristics
Dimensions 52 x 100 x 101 mm (2.04 x 3.93 x 3.97 in)
Housing Metal
Installation Din-rail mounting
Operating Temperature -40 to +70°C (-40 to +158°F)
Operation Humidity 5-95% relative humidity
Standards and Certifications MIL-HDBK-217K; Ingress protection: IP40; EMC: EN 61000-6-1, Immunity residential environments, EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments, EN 55022 +A1, Emission IT equipment, EN 55024, Immunity IT equipment, FCC part 15 Class A, EN 50121-4, Railway signalling and telecommunications apparatus, IEC 62236-4, Railway signalling and telecommunications apparatus; Safety: UL/IEC/EN 60950-1, IT equipment; Marine: DNV Standard for Certification no. 2.4; IECEx: Explosive atmosphere, IEC 60079-0, General requirements, IEC 60079-15, Equipment protected by type of protection “n”, IEC 60079-28, Protection of equipment and transmission systems using optical radiation; ATEX: Explosive atmosphere, EN 60079-0, General requirements, EN 60079-15, Equipment protected by type of protection “n”, EN 60079-28, Protection of equipment and transmission systems using optical radiation; Class1 Div 2: FM Approval; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64
Storage Temperature -50 to +85°C (-58 to +185°F)
Weight 0.7Kg
Standards and protocols
Protocols and work standards -
Protocols and management standards IGMPv2/v3 snooping, HTTP, HTTPS or CLI (SSHv2 or Telnet), SNMPv1/v2c/v3, SNTP (NTP client), PPPoE client, DHCP client, DDNS, DHCP client, DHCP server including option 82, DHCP relay agent including option 82
Package Checklist
Hardware installation guide
Power adapter
Power cable
