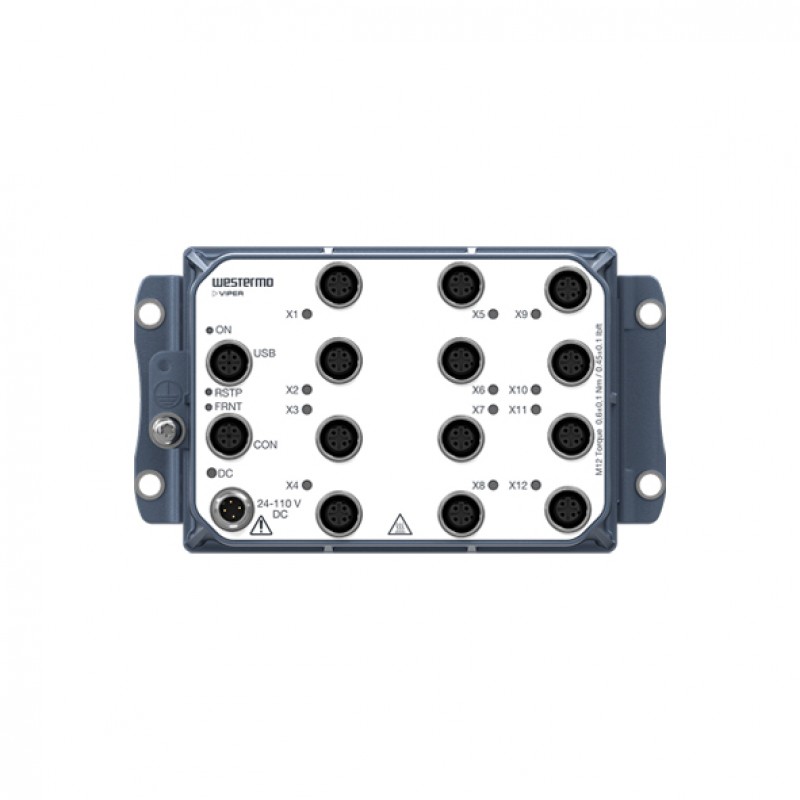

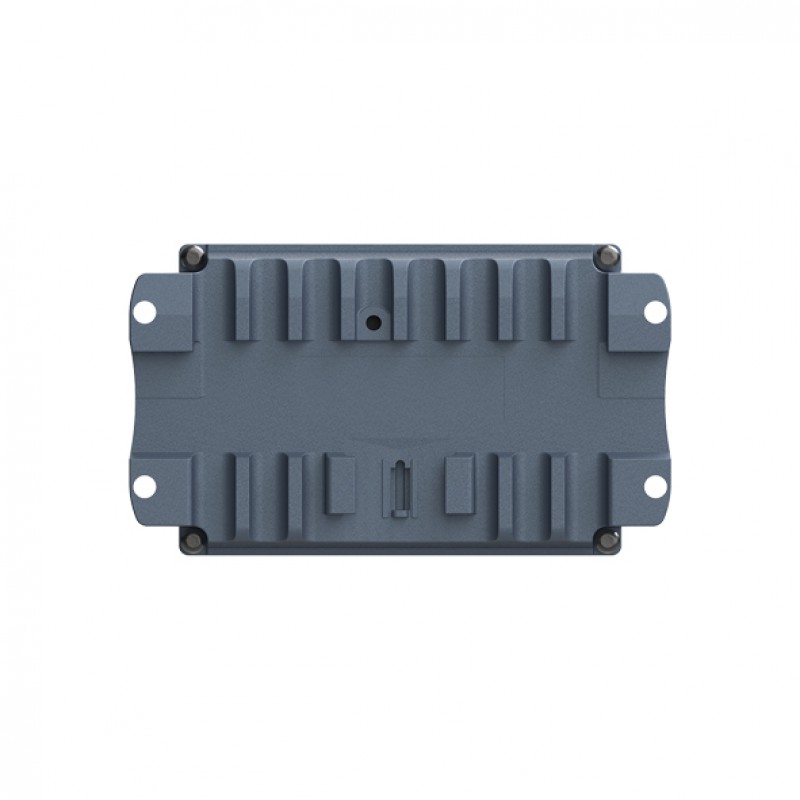

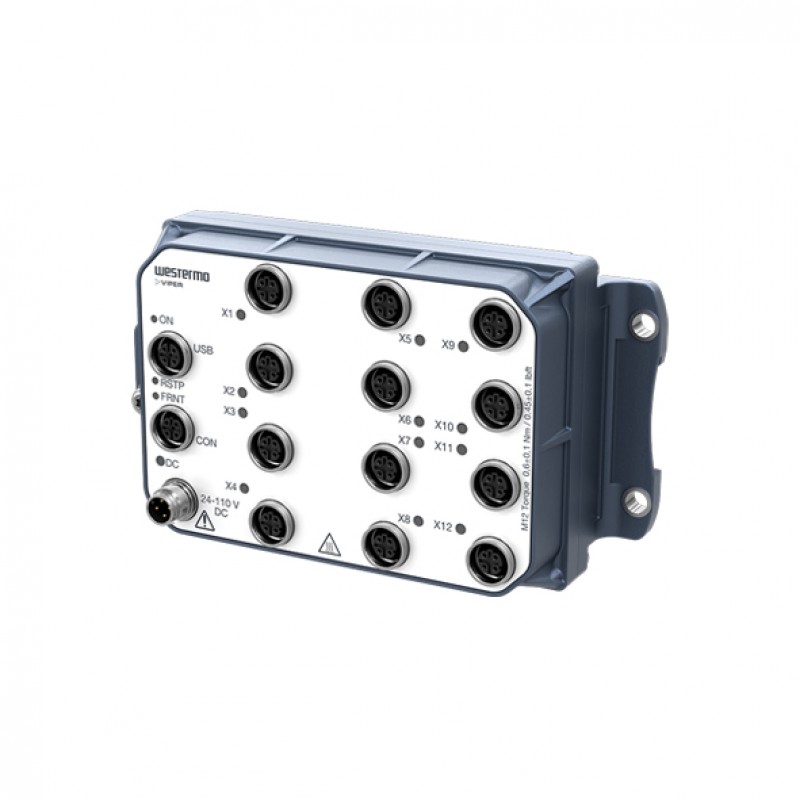

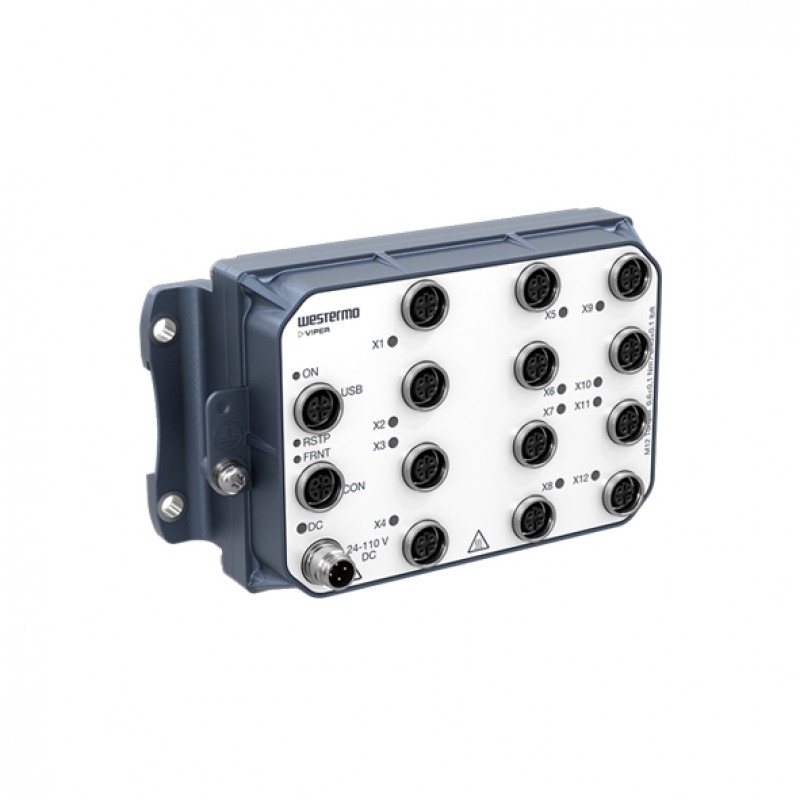

Westermo Viper-3512-T12-PPC Managed Ethernet Switch
- Layer 2 functionality switching
- 12 x 100 Mbps Ethernet Ports (M12 D-coded connector)
- Push-Pull Connectors for Ethernet Ports
- 1 x RS-232 Console Port (M12 B-coded connector)
- IP67-rated Metal body design
- Redundant 24 to 110 VDC power input
- Wallmount installation design
- -40 to +70°C operating temperature
.png)
Description
The IEC 62443-4-2 SL2 certified Viper 3512-PPC series
consists of managed 12-port routing switches optimised for the needs of the
railway rolling stock market. The Viper 3512-PPC series is designed to
withstand the tough environment on-board trains, exposing the switch to
constant vibration, extreme temperatures, humidity, and a demanding electrical
environment.
Push-pull connectors that comply with the IEC 61076-2-010
standard offer the advantage of faster installation without requiring tools,
while also remaining compatible with M12 threaded connectors.
A GORE-TEX® membrane prevents internal condensation.
Threading and push-pull locking integrated in the chassis provide for additional
vibration resistance. High-level isolation between all interfaces enables
direct connectivity to vehicle auxiliary power and protects against overvoltage
and flashover. IP67 protection prevents ingress of water and dust. An overall
optimised design results in an extremely compact package in combination with
very high MTBF for easy integration and low lifecycle cost.
Thorough type testing at independent ISO/IEC 17025 and ILAC
MRA certified labs, accredited to a wide range of standards, shows that the
Viper series fulfills EN 50155 and other requirements. The state-of-the-art
Westermo production facility ensures the quality of each individual unit, e.g., through temperature cycling burn-in testing.
The WeOS operating system offers an extensive suite of IP
networking features for resilient and flexible networks, e.g., the FRNT ring
protocol with very fast failover. The backup device accessory matches the Viper
in robustness and offers easy configuration updates and backup.
Meeting the requirements of the railcar market, the Viper
3512-PPC is very well suited for deployment in any other application with
severe operating conditions and tough environments, for instance, in the mining
industry.
You can also find the Viper-3512-E-T12-PPC, Viper-3512-T3G-T9-PPC,
and Viper-3512-T5G-T7-PPC models in the Managed Ethernet Switches.
Enjoy the ease of online inquiries for the Westermo Viper-3512-T12-PPC Managed Ethernet Switch. You can
submit your inquiry on our website and get the most friendly communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 12 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 12 x 100 Mbps Ethernet Ports (M12 D-coded connector), 1 x RS-232 Console Port (M12 B-coded connector) |
| Features and capabilities | |
| Backup | : M12 USB |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | Max 580 mA at 24 VDC, max 140 mA at 110 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 24 to 110 VDC |
| Operating Voltage | 16.8 to 143 VDC (14.4 VDC for 100 ms and 154 VDC for 1 s) |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | MIL-HDBK-217F2: 557,000 h; IEC 62380: 519,000 h |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 175 x 100 x 65 mm (6.89 x 3.94 x 2.56 inches) |
| Housing | Full metal |
| Installation | Wall mounting |
| Operating Temperature | -40 to +70°C (-40 to +158°F) (+85°C for a limited time) |
| Operation Humidity | 5-95% relative humidity, operational, storage and transport |
| Standards and Certifications | Power interruption: Class S2 (10 ms hold-up); Ingress protection: IP67; MIL-HDBK-217F2; IEC 62380; Connectors: IEC 61076-2-010, Connectors for electrical and electronic equipment - Product requirements - Circular connectors (push-pull); Climate: EN 50155 class OT4/IEC 60571 class TX, Railway applications - Electronic equipment used on rolling stock, IEEE 1478 class 1, condition E4 (incl Salt Mist), Environmental conditions for transit rail car electronic equipment; EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments, EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus, EN 50121-3-2/IEC 62236-3-2 Railway applications – Rolling stock – apparatus, Tested and verified for Class S1, DB EMC Regulation 06, Commodity team Radio compatibility in VDB Rev 1.0 (Shunting Radio), Tested and verified for FCC part 15b class A (CFR 47; Mechanical (Shock and vibration): EN 61373 category 1, class A and B; Insulation (Coordination and test): EN 50124-1, Railway applications – Insulation coordination, EN 50155/IEC 60571, Railway applications - Electronic equipment used on rolling stock; Fire protection: EN 45545-2, Fire protection on railway vehicles, NFPA 130, Fire protection for fixed guideway transit and passenger rail system; Cybersecurity: IEC 62443-4-2 SL2, Security for industrial automation and control systems; Software: EN 50657:2017 Software Onboard Rolling Stock (Basic Integrity); Safety: EN/IEC/UL 61010-1, -2-201, Safety requirements for electrical equipment for measurement, control, and laboratory use; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64 |
| Storage Temperature | -55 to +85°C (-67 to +185°F) |
| Weight | 1.4 kg |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | Westermo configuration tool WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, SSHv2 and Telnet, Local and Central Authentication (RADIUS/TACACS+), Role Based Access Control (RBAC), Password Compliance Policy, SNMPv1/v2c/v3, Secure Copy (SCP) for remote file upload and download, Local file management (via HTTP, FTP, TFTP and SCP), Tech support button, Flexible alarm and event handling system, RFC5424/RFC3164 Syslog (log files and remote syslog server), Port monitoring |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
