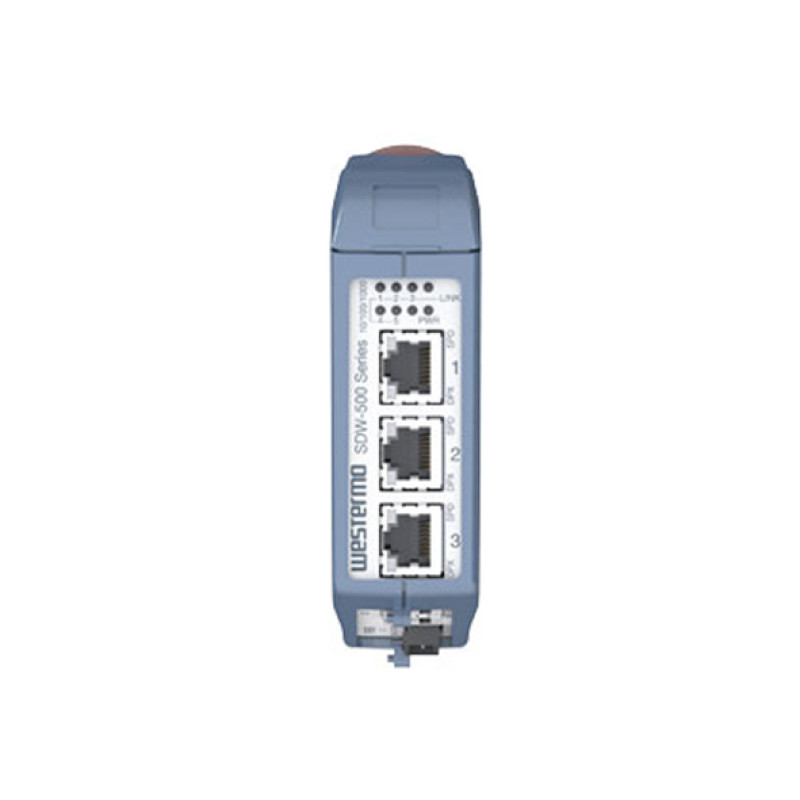

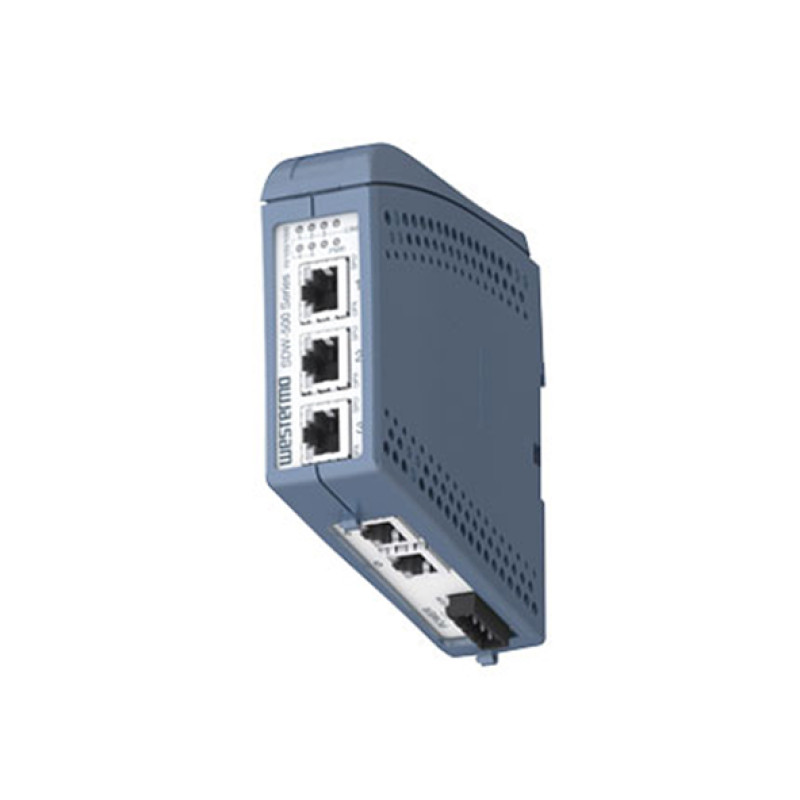

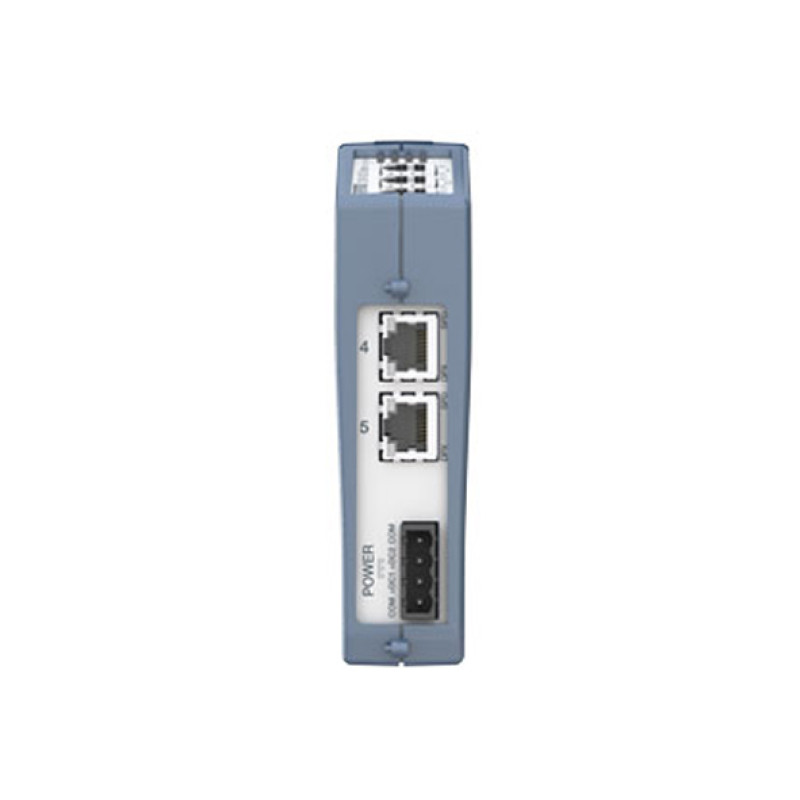

Westermo SDW-550-T5G Unmanaged Ethernet Switch
- 5 x 10 Mbit/s, 100 Mbit/s or 1 Gbit/s Base TX Ports (RJ45 connector)
- IP21-rated Plastic body material
- Redundant Dual 9.6 - 57.6 VDC power inputs
- DIN-rail mount installation design
- -40 to +74 °C operating temperature range
- Brand: WESTERMO
- Product Code: 3644-2001
.png)
Description
The SDW-550-T5G is an unmanaged 5-port switch with five copper ports, all supporting 10 Mbit/s, 100 Mbit/s, or Gbit Ethernet. It is designed for easy use in heavy-duty industrial, maritime, and rail trackside applications. The unit supports 802.1Q long packets, which allow all standard industrial Ethernet protocols to be used.
The SDW-550-T5G is designed for use in industrial applications with dual 10 to 57 VDC power input. The unique “trigalvanic” isolation provides isolation between all ports, power supply, and between each chassis screen, avoiding ground loop currents. The IP21 rating ensures that the unit can be installed in locations where condensed water may occur.
Only industrial-grade components are used, which gives the SDW-550-T5G an MTBF of 1.121.000 hours and ensures a long service life. A wide operating temperature range of –40 to +74 °C (–40 to +165 °F) can be achieved with no moving parts.
The SDW-550-T5G has been tested both by Westermo and external test houses to meet EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial, trackside, and maritime environments.
Network diagnostics are simplified with the inclusion of port mirroring on one or, allowing data flow through the switch to be monitored using a network analyzer. All five ports can have data rate and flow control locked by the DIP switch, which can eliminate problems with old legacy Ethernet equipment that is unable to support auto negotiation.
You can also find the SDW-541-F1G-T4G, SDI-862-MM-SC2, and SandCat-2305-T5-LV models in the Unmanaged Ethernet Switches.
Enjoy the ease of online inquiries for the Westermo SDW-550-T5G Unmanaged Ethernet Switch. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 5 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 5 Ports (or 10 Mb / 1 Gb) |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 5 Ports (or 10 Mb / 100 Mb) |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 12 - 48 VDC; 260 - 65 mA |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | - |
| Operating Voltage | 9.6 - 57.6 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 1,121,000 hour |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 1 |
| Switch type | UnManaged |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 34 x 123 x 121 mm (1.33 x 4.84 x 4.76 in) |
| Housing | Metal |
| Installation | DIN-rail mounting |
| Operating Temperature | -40 to 74 ° -40 ºC to +74 ºC (-40 to +165 ºF) |
| Operation Humidity | 5 to 95 % (non-condensing) |
| Standards and Certifications | EMC EN 50121-4, Railway applications - Electromagnetic compatibility - Emission and immunity of the signalling and telecommunications apparatus, EN 61000-6-1, Immunity residential environments, EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments; Safety: UL 60950-1, IT-equipment; Marine: DNV rules for classification - Ships and offshore units; Environmental: NEMA TS 2-2003; IP21; MIL-HDBK-217F-N2; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6 |
| Storage Temperature | -50 ºC to +85 ºC (-58 to +158 ºF) |
| Weight | 0.25Kg |
| Standards and protocols | |
| Protocols and work standards | 802.1Q |
| Protocols and management standards | |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
