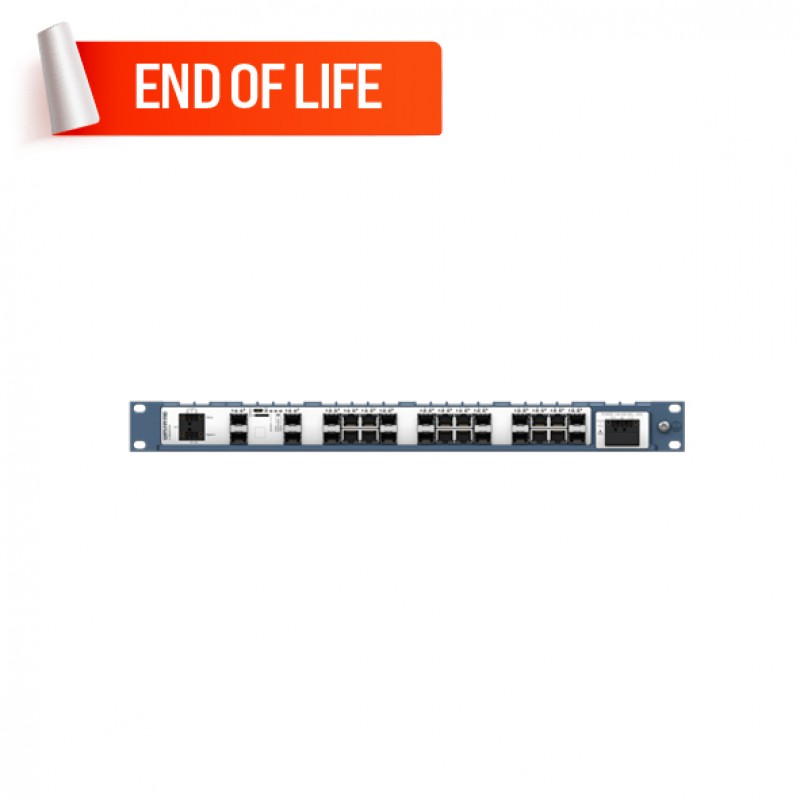

Westermo RedFox-5528-E-F16G-T12G-MV Managed Ethernet Switch
- Layer 3 functionality switching and routing
- 12 x 100/1000 Mbps Copper ports (RJ45 connector)
- 16 x 10/100/1000 Mbps SFP Fiber ports
- IEEE 1588v2 Precision Time Protocol (PTP)
- 48 to 110 VDC input power range
- Ultra-robust IP40 metal housing
- Rack and Wallmount installation design
- -40 to +74°C operating temperature range
.png)
Description
The RedFox 5528 series is designed for the core of large, high-performance industrial networks and has been developed to cater to the
needs of current and future industrial data networks, combining outstanding
performance, durability, and reliability. These switches are ideal for handling
the big data and high bandwidth requirements typically found within
transportation, manufacturing, energy, smart cities, and other applications.
Integrating hardware, software, and network design support
tools, this next-generation switch platform offers advanced capabilities, the
lowest total cost of ownership, and will create the most reliable and resilient
networks on the market.
The switch is engineered to maintain uninterrupted data
communication, even in exceptionally harsh environments. The RedFox 5528 series
is tested and certified to withstand extreme temperatures, vibrations, and
shocks. The switches only use industrial-grade components, which contributes
towards a market-leading mean time between failure (MTBF), maximized service
life, and reduced operational and life cycle costs.
Various port configurations are available, all with full
gigabit speed, that can be further customized with SFP transceivers. The RedFox
5528 series is available in either a DC or AC power supply as well as a
configurable I/O fault contact, making the switch ideal for monitoring in
industrial applications.
The RedFox 5528 series is powered by the next-generation
WeOS operating system, which ensures robust operation and support for an
expanding range of protocols and features. In addition, recognizing the growing
sophistication of cyberattacks, an extensive suite of cybersecurity tools is
available.
The switches are also prepared for routing acceleration,
extended cybersecurity, and time synchronization IEEE 1588v2 applications,
making them an ideal solution to meet future security and bandwidth
requirements.
End of Life Product - Replacement Available
Please note that the RedFox-5528-E-F16G-T12G-MV has been phased out and
replaced by the RedFox-5528-E-F16G-T12G-HV.
Easy World Automation offers the
easiest way to buy the Westermo RedFox-5528-E-F16G-T12G-MV Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 28 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 12 Copper Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 16 Ports |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x Console micro USB, 1 x Micro SD, 1 x Digital I/O |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.65 A at 48 VDC, 0.28 A at 110 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 48 to 110 VDC (with Galvanic isolation to all ports) |
| Operating Voltage | 36 to 154 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | Telcordia: 735.000 hours |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 482,4 x 43 x 258 mm (18.99 x 1.69 x 10.16 inches) |
| Housing | Full metal |
| Installation | Rack mounting, Wall mounting |
| Operating Temperature | -40 to +74°C (-40 to +165°F) |
| Operation Humidity | 5-95% relative humidity |
| Standards and Certifications | Ingress protection: IP40; Telcordia; Corrosive gases: IEC 60068-2-60; Approvals EMC: EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4; Approvals EMI: FCC Part 15.105 class B; Approvals Marine: DNV GL rules for classification - Ships and offshore units; Approvals Safety: EN/IEC/UL 62368-1; Approvals Trackside: EN 50121-4, IEC 62236-4; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64 |
| Storage Temperature | -50 to +85°C (-58 to +185°F) |
| Weight | 3.8 kg |
| Standards and protocols | |
| Protocols and work standards | IEEE 1588v2 Precision Time Protocol (PTP) |
| Protocols and management standards | Westermo configuration tool WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, SSHv2 and Telnet, Local and Central Authentication (RADIUS/TACACS+), Role Based Access Control (RBAC), Password Compliance Policy, SNMPv1/v2c/v3, Secure Copy (SCP) for remote file upload and download, Local file management (via HTTP, FTP, TFTP and SCP), Load/save files from/to external memory, Configuration and Deployment using external memory, Tech support button, Flexible alarm and event handling system, RFC5424/RFC3164 Syslog (log files and remote syslog server), Port monitoring |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
