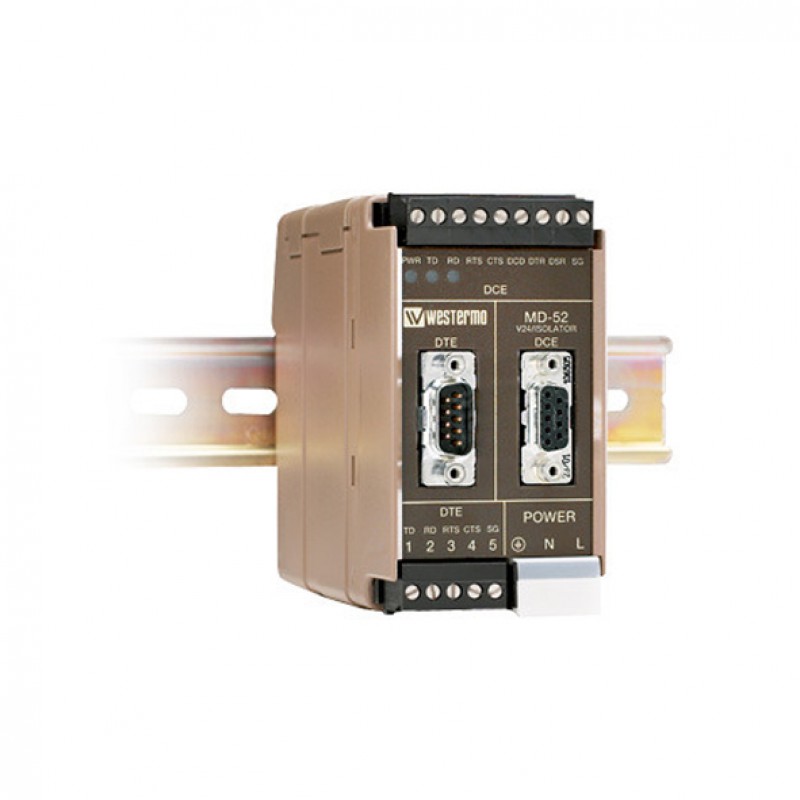

Westermo MD-52 DC Industrial RS-232 Repeater/Isolator
- Industrial RS-232 Repeater/Isolator
- 1 x RS-232 female port (up to 115.2 kbit/s)
- 1 x RS-232 male port (up to 115.2 kbit/s)
- 2 x RS-232 detachable screw terminals (up to 115.2 kbit/s)
- Purpose-built DIN rail casing with integral clip
- 12–36 VDC input power range (with Galvanic isolation)
- –25°C to 70°C operating temperature range
- Brand: WESTERMO
- Product Code: 3601-0001
Description
The MD-52 is an RS-232
isolator allowing RS-232 systems to be connected where there is a need to
isolate interfaces from each other. The serial interfaces are standard RS-232
configured as DCE and DT, creating a simple installation.
The RS-232 serial
interface is connected through a standard 9-pin D-sub or terminal block with
screw connectors. MD-52 is a plug-and-play unit, and the communication is
totally transparent.
The MD-52 is designed for
use in heavy-duty industrial applications. The different power options,
galvanic isolation, guarantee communication in the worst environments. The
MD-52 has been tested to meet many EMC, isolation, vibration, and shock
standards, all to the highest levels suitable for heavy industrial
environments.
The design of the
isolator makes MD-52 suitable for applications where there is a risk for ground
loop currents or other electrical disturbances.
You can also find the EDW-100, EDW-120, and MDW-45 HV models in the Serial Converters and Repeaters.
You can explore our wide range of
products and enquire about the Westermo MD-52 DC Industrial RS-232 Repeater/Isolator for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | |
| 100BaseFX Ports | |
| Digital Input Channels | |
| Digital Output Channels | |
| Alarm Contact Channels | |
| Magnetic Isolation Protection | |
| Protocols | |
| Serial Interface | |
| Number of Ports | 2 Ports |
| Serial Standards | RS-232 |
| Connector | 9-pin D-sub female, 9-pin screw block, 9-pin D-sub male, 5-pin screw block |
| Console Port | |
| Serial Communication Parameters | |
| Baudrate | Up to 115 200 bit/s (asynchronous) |
| Data Bits | - |
| Stop Bits | - |
| Parity | - |
| Isolation | : 1500 V rms |
| Serial port specifications | |
| Flow Control | - |
| Serial Signals | |
| RS-232 | - |
| RS-422 | - |
| RS-485-4w | - |
| RS-485-2w | - |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | - |
| Compatible operating systems | - |
| Fixed TTY Drivers | - |
| Linux Real TTY Drivers | - |
| MTBF | - |
| Automatic Reboot Trigger | - |
| Power Requirements | |
| Connection | Detachable screw terminal |
| Input Voltage | 12–36 V DC |
| Input Current | 130 mA @ 12 VDC |
| Security | |
| Security | - |
| Encryption | - |
| Authentication | - |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | 55 x 100 x 132 mm (2.16 x 3.93 x 5.19 in) |
| Installation | DIN-rail mounting |
| Standards and Certifications | EMC: SS-EN 50081-1/SS-EN 55022 (1992): Class B, SS-EN 50082-2/SS-EN 61000-4-2 (1995): 4 kV CD, 8 kV AD, SS-EN 50082-2/SS-EN 61000-4-4 (1995): 4 kV power, 2 kV signals, SS-EN 50082-1/SS-EN 61000-4-3 (1996): 3 V/m, SS-EN 50082-1/SS-ENV 50204 (1995): 3 V/m, SS-EN 50082-1/SS-EN 61000-4-6 (1996) 3 V/m; Safety: EN 60950:1992/A1,1993; A2,1993; A3,1995 |
| Housing | - |
| Operating Temperature | –25°C to 70°C (–13 to 158°F) |
| Storage Temperature | - |
| Operation Humidity | 0 – 95% RH, without condensation |
| Weight | 0.4 kg |
