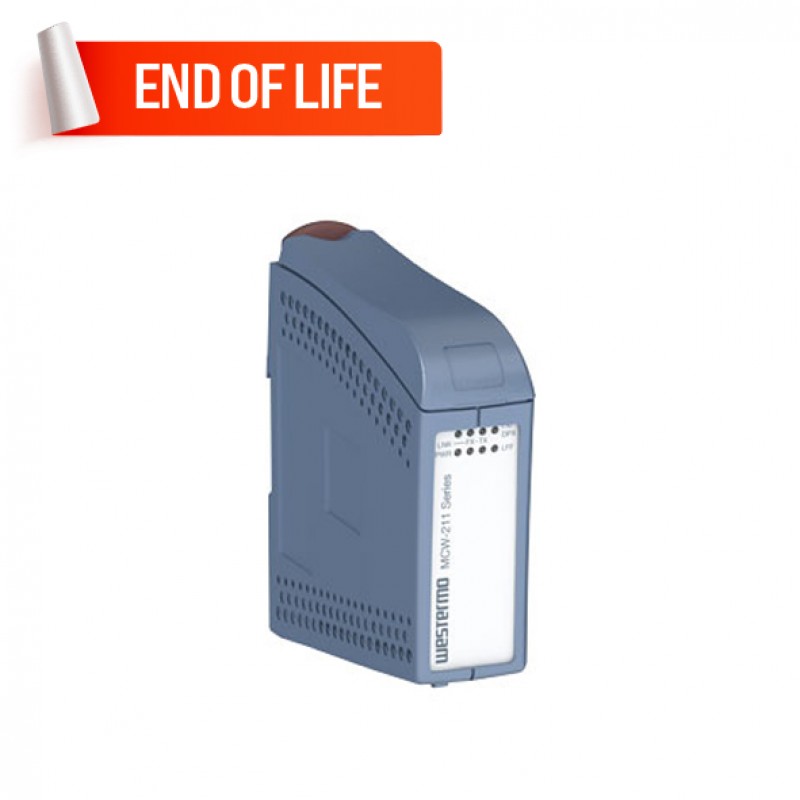

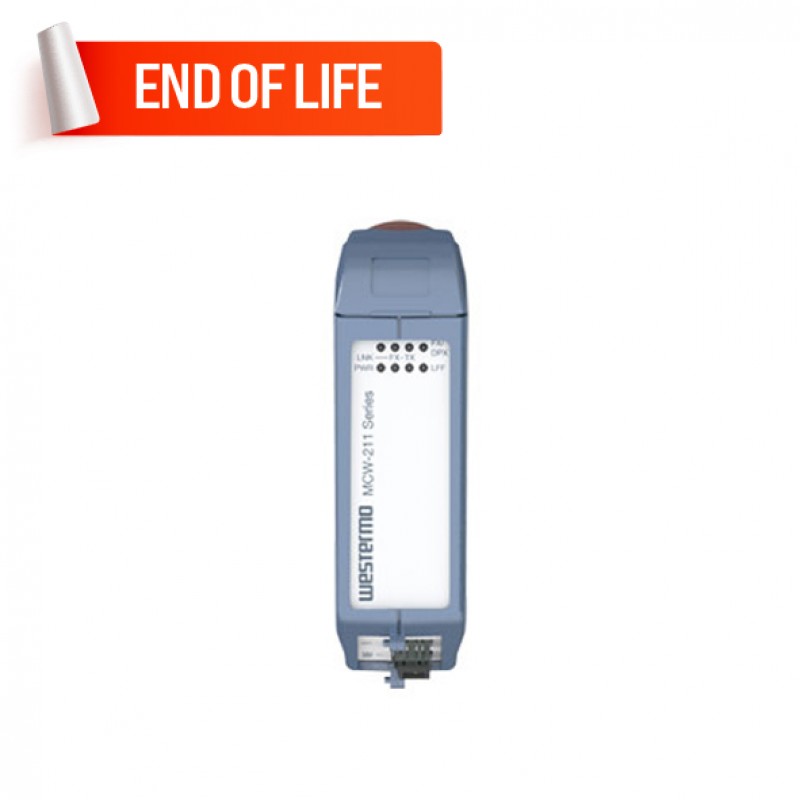

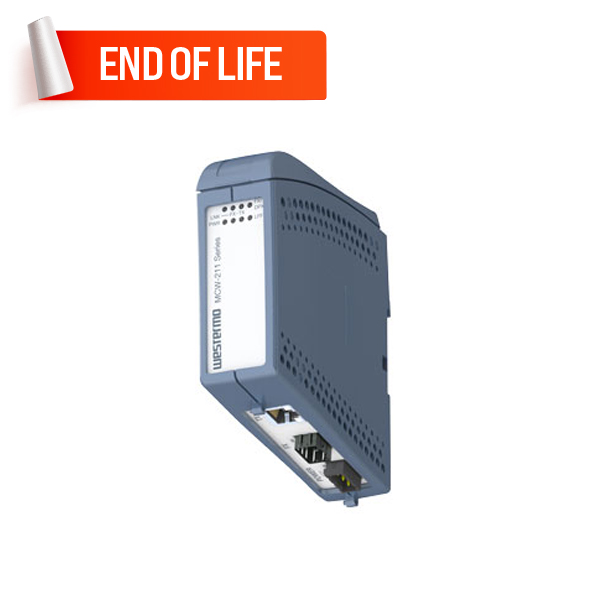

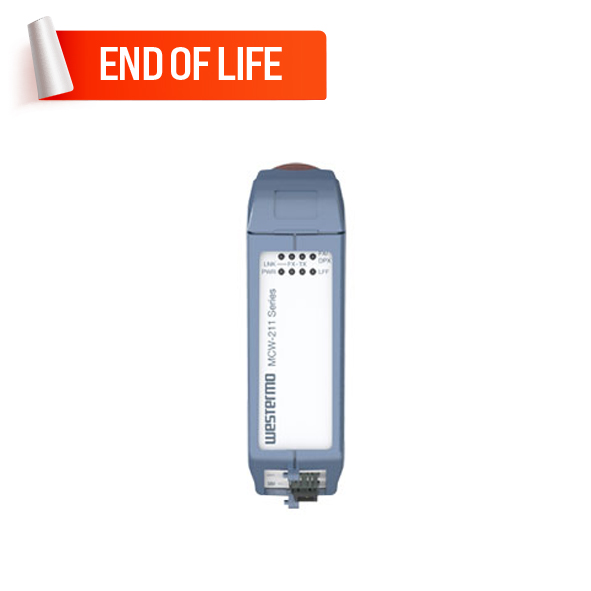

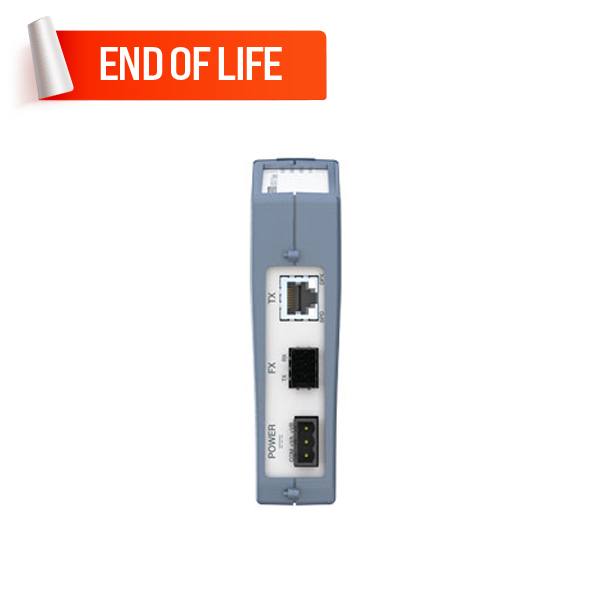

Westermo MCW-211-SM-LC40 Industrial Ethernet to Fiber Media Converter

Industrial Unmanaged Ethernet Media Converter
1 x 10 Mbit/s or 100 Mbit/s Port (RJ-45 connector)
1 × 100 Mbit/s Fibre port (Singlemode LC connector)
40 KM Typical data transmission distance on fiber
IP21-rated PC / ABS body material design
Purpose-built DIN rail casing with integral clip
Dual 10 to 60 VDC power supply with galvanic isolation
-25 to +70°C operating temperature range

Brand: WESTERMO
Product Code: 3645-0040

Description

The MCW-211 is an unmanaged media converter designed for easy use in heavy-duty industrial applications. The MCW-211 transparently converts between 10/100Base-TX and 100Base-FX. Some standard fibre optic connection types are supported, including LC, SC, and ST. The unit supports 802.1Q long packets, which allows all standard industrial Ethernet protocols to be used.

The MCW-211 is designed for use in industrial applications and so has dual power inputs for 10 to 57 VDC operation. Total galvanic isolation between the power supply and TX port helps to avoid ground loop currents and hence provides ultra-reliable connections. The IP21 rating ensures that the unit can be installed in locations where condensed water may occur.

Only industrial-grade components are used, which gives the MCW-211 an MTBF of 540,000 hours and ensures a long service life. A wide operating temperature range of –25 to +70°C (–13 to +158°F) can be achieved with no moving parts. The MCW-211 has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments.

Easy-to-understand LED indicators provide simple diagnostics if network problems arise. The link fault forward function helps to transfer the indication of media failure onto connected ports to ensure that the MCW-211 can be used in resilient network structures. Data rate and flow control can be locked by a DIP switch, which can eliminate problems with old legacy Ethernet equipment that is unable to support auto-negotiation.

End of Life Product - Replacement Available

Please note that the MCW-211 has been phased out and replaced by the MCW-211-F1G-T1G.

Easy World Automation offers the easiest way to buy the Westermo MCW-211-SM-LC40 Industrial Ethernet to Fiber Media Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interface
10/100Mb RJ45 (Megabit) Ports	: 1 Port
10/100/1000Mb RJ45 (Gigabit) Ports
10/100Mb (Megabit) POE Ports
10/100/1000Mb (Gigabit) POE Ports
100Mb Fiber optic multi mode (Megabit) Ports
1000Mb Fiber optic multi mode (Gigabit) Ports
100Mb Fiber optic single mode (Megabit) Ports	: 1 LC Port
1000Mb Fiber optic single mode (Gigabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports
M12 port
Alert Output
Magnetic Isolation Protection
Standards and protocols
Protocols and work standards	IEEE std 802.3
General
Maximum cable length for data transfer	40 Km
MTBF	MIL-HDBK-217F-N2: 1,347,000 hours
Power Requirements
Input Voltage	12 to 48 VDC (Wide Range 10 to 60 VDC)
Input Current	200 mA @ 12 VDC, 100 mA @ 24 VDC, 50 mA @ 48 VDC
Overload Current Protection
Type of power input	Detachable screw terminal
Power Consumption	-
Physical Characteristics
Standards and Certifications	MIL-HDBK-217F-N2; Ingress protection: IP21; ; Vibration: IEC 60068-2-6 ; Shock: IEC 60068-2-27; EMC: EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments; Marine: DNV GL rules for classification – Ships and offshore units
Housing	PC / ABS
Dimensions	34 x 123 x 121 mm (1.33 x 4.84 x 4.76 in)
Weight	0.25Kg
Operating Temperature	–25 to +70ºC (–13 to +158ºF)
Storage Temperature	–40 to +70ºC (–40 to +158ºF)
Operation Humidity	5 to 95% relative humidity
Installation	Din-rail mounting
