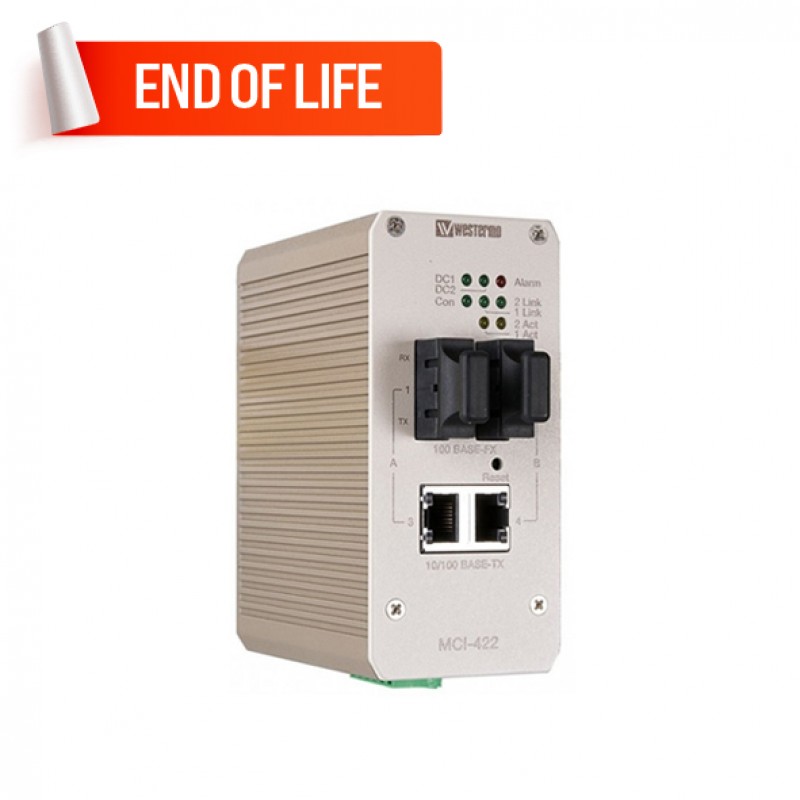

Westermo MCI-422-MM-SC2 Industrial Ethernet to Fiber Media Converter
- 2-Channel Ethernet to Fibre Media Converter
- 2 × 10/100 Ethernet TX ports (RJ-45 connector)
- 1 × 100 Mbit/s Fibre port (Multimode SC connector)
- 2 KM Typical data transmission distance on fiber
- IP30-rated Rugged aluminum housing

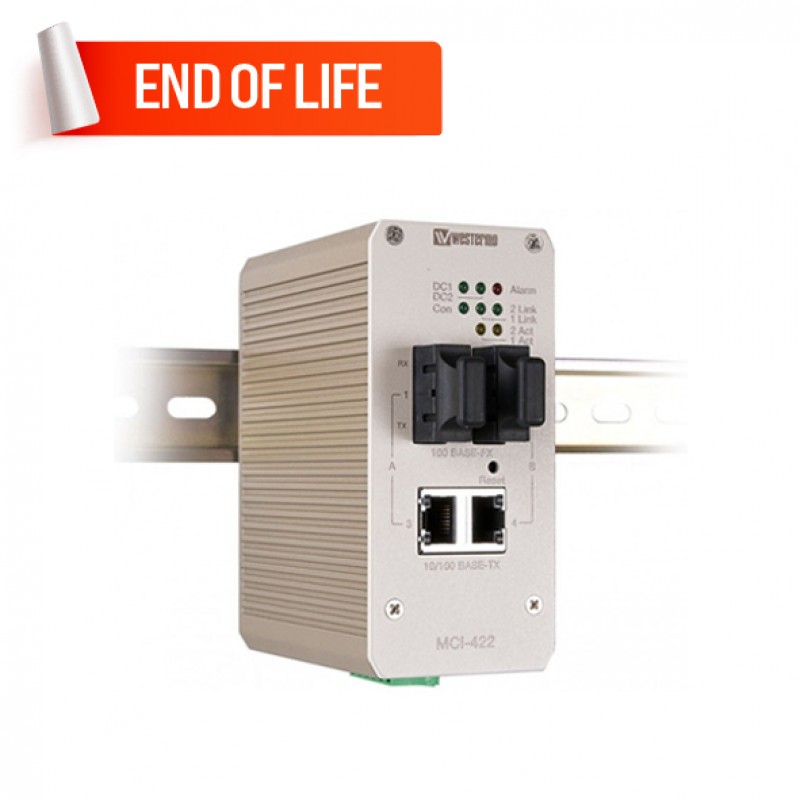

- DIN-Rail mount installation design
- Dual 10 to 60 VDC power supply
- -25 to +75°C operating temperature range
- Brand: WESTERMO
- Product Code: 3624-0100
.png)
Description
The Westermo MCI-422 is not only a compact 4-port switch but also a 2-channel RJ45 to fibre media converter. As a switch, the MCI-422 is an industrial 4-port 10/100 Mbit/s Fast Ethernet Fibre Switch, incorporating a 3.2 Gbit/s switching fabric with non-blocking store and forward technology. In converter mode, it is a 2-channel 10/100 TX to 100 FX media converter, featuring remote Link Loss Forwarding technology. The unit is simply configured as either device using a DIP switch. The LFF is also set up in this way.
The MCI-422 has dual redundant power inputs with a wide DC range of 10~60V. It also has an alarm relay to trigger an alarm signal for port or power events. Two versions are available for either single-mode or multimode fibres. The MM version is for multimode fibres up to 2KM and the SM version is for single-mode fibre to 30km.
End of Life Product - Replacement Available
Please note that the MCI-422 has been phased out and replaced by the MCW-211-F1G-T1G.
Easy World Automation offers the
easiest way to buy the Westermo MCI-422-MM-SC2 Industrial Ethernet to Fiber Media Converter in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 2 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 2 SC Ports |
| 1000Mb Fiber optic multi mode (Gigabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb Fiber optic single mode (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| M12 port | |
| Alert Output | |
| Magnetic Isolation Protection | |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3x Flow Control and Back Pressure |
| General | |
| Maximum cable length for data transfer | 2 Km |
| MTBF | - |
| Power Requirements | |
| Input Voltage | DC 24V (12~48V) |
| Input Current | Maximum 1A current at DC 24 |
| Overload Current Protection | Supported |
| Type of power input | Terminal block |
| Power Consumption | 6 W @ 24 VDC |
| Physical Characteristics | |
| Standards and Certifications | Ingress protection: IP30; ; Vibration: IEC 60068-2-6 ; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; EMC: EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments |
| Housing | Aluminium |
| Dimensions | 55 mm x 120 mm x 99 mm |
| Weight | 550 g |
| Operating Temperature | -25 to +75°C (-13 to +167°F) |
| Storage Temperature | -40 to +75°C (-40 to +167°F) |
| Operation Humidity | 0% ~ 95%, (non-condensing) |
| Installation | Din-rail mounting |
