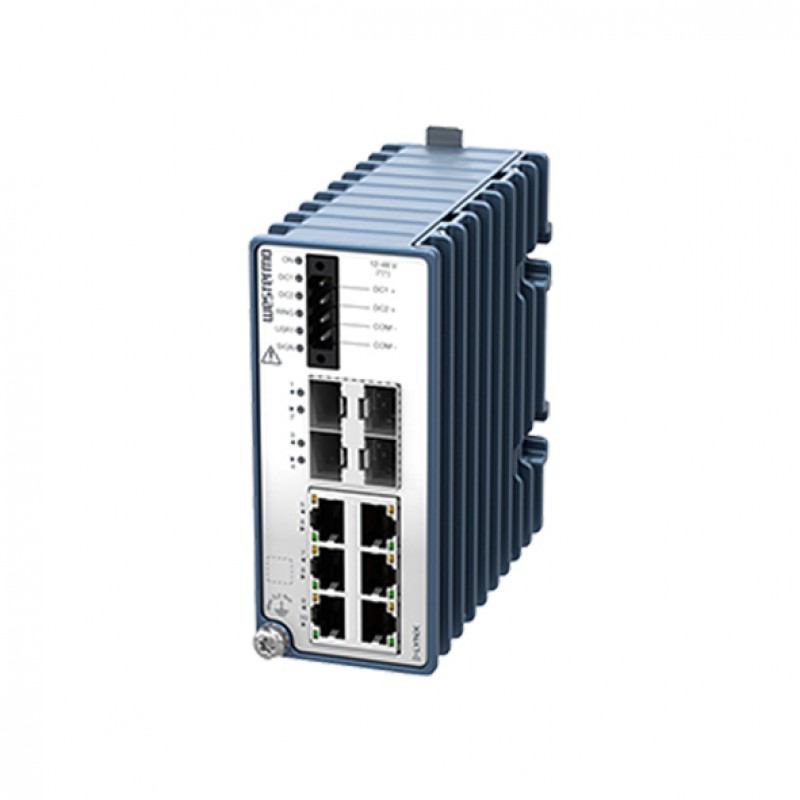

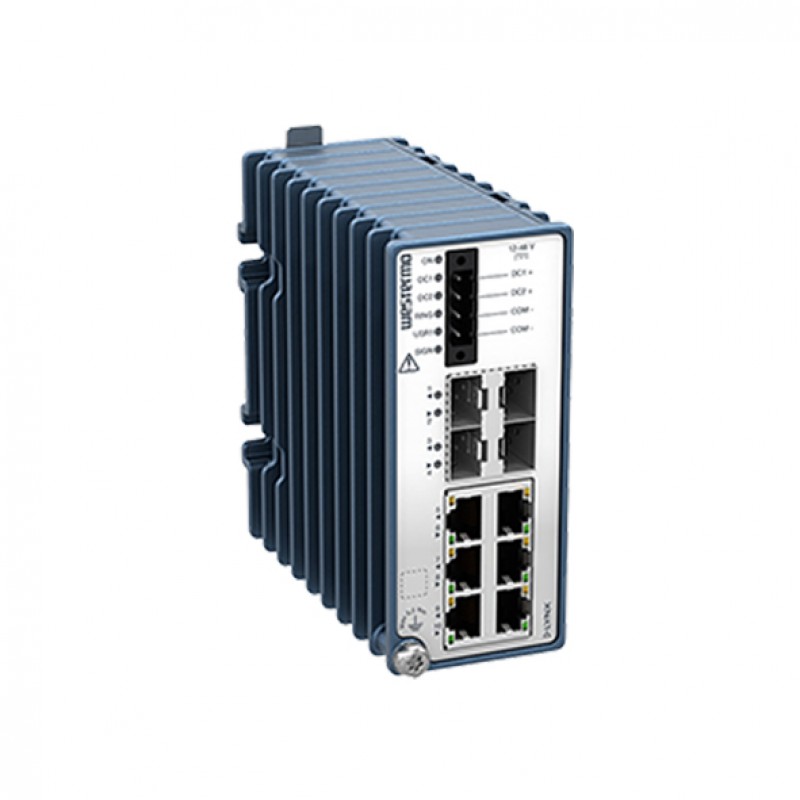

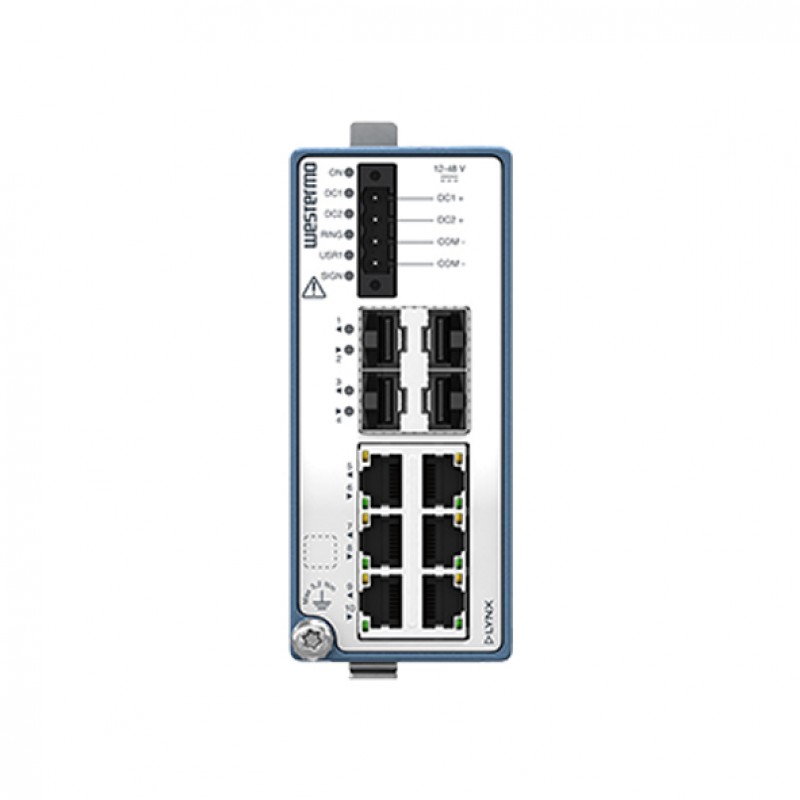

Westermo Lynx 3510-F4G-T6G-LV Managed Ethernet Switch
- Layer 2 functionality switching
- 6 x 1 Gbit/s Copper ports (RJ45 connector)
- 4 x 1 Gbit/s SFP fiber ports
- Supports 802.3at/af (PoE+/PoE)
- Ultra-robust IP40 metal housing
- 12 to 48 VDC input power range
- -40 to +70°C operating temperature
.png)
Description
The Lynx 3510-F4G-T6G-LV is a compact, high-performance
industrial layer 2 managed switch developed with the needs of current and
future industrial data networks in mind. The switches are designed for the
harshest industrial environments and can withstand extreme temperatures,
vibrations, humidity, and electrical environments. The use of only industrial-grade components ensures market-leading mean time between failure (MTBF),
maximized service life, and reduced operational and life cycle costs.
The series provides layer 2 and layer 3 functionality,
enabling complex ring networks and routing solutions. It features a rich
assortment of variants for various use cases, including applications requiring
true high performance. With models supporting up to 2.5 gigabit speeds, as well
as entry-level models optimized for Fast Ethernet applications, the series is ideal
for handling big data, high bandwidth, and mission-critical applications.
Power over Ethernet (PoE) versions provide up to 30 W output
per port and a total budget of 240 W. The possibility of lean, simple
installations is ideal, as both connectivity and power can be provided by a
single cable. These switches have advanced PoE management features for
connecting HD IP CCTV cameras in industrial settings, as well as other
power-hungry applications.
The series is powered by the next-generation WeOS operating
system, which ensures robust operation and support for an expanding range of
protocols and features. In addition, recognizing the growing sophistication of
cyberattacks, an extensive suite of cybersecurity tools is available. These
tools can be used to build networks in compliance with the IEC 62443 standard,
which defines technical security requirements for data communication network
components. The Lynx 3000 switches are ideal for mission-critical applications
within transportation, manufacturing, energy, smart cities, and other
applications.
You can also find the Lynx 3510-E-F4G-T6G-LV, Lynx 3510-F2G2.5-F2G-T6G-LV, and Lynx 3510-E-F2G2.5-F2G-T6G-LV models in the Managed Ethernet Switches.
Enjoy the ease of online inquiries for the Westermo Lynx 3510-F4G-T6G-LV Managed Ethernet Switch. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 4 Ports |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 6 x 1 Gbit/s Copper ports (RJ45 connector), 1 x Console Port (USB-C, emulate serial port, 115200 bps), 1 x Micro SD slot (Secure Digital 2.0), 1 x Digital input channel and 1 x Digital output channel (screw terminal connector) |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | Max 1.1 A at 12 VDC, max 0.27 A at 48 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12 to 48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | Telcordia: 1,022,000 hours, MIL-HBDK-217F : 662,000 hours |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 52 x 134 x 130 mm (2.05 x 5.28 x 5.19 inches) |
| Housing | Full metal |

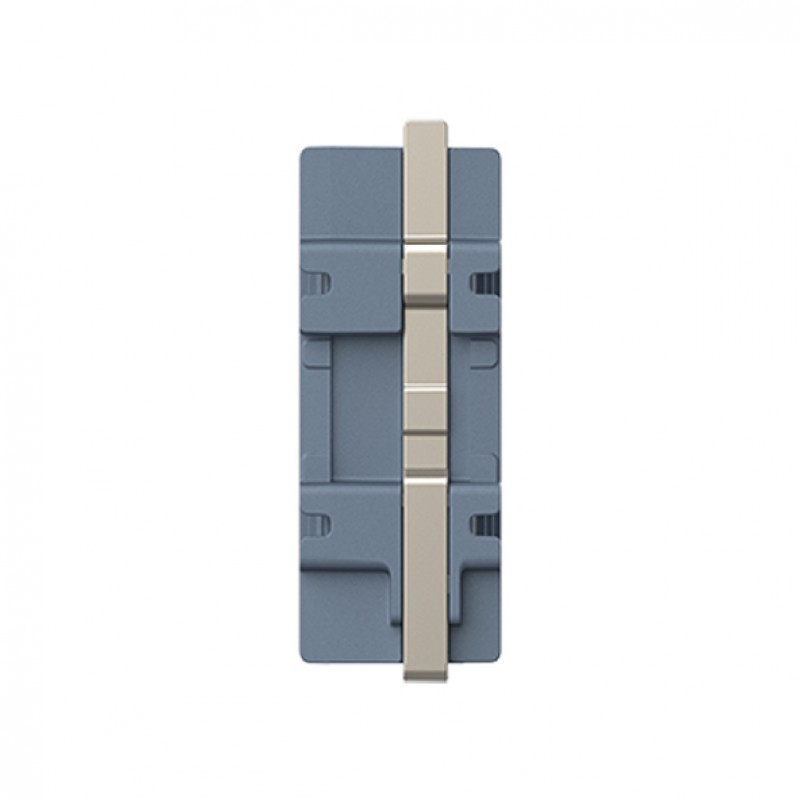

| Installation | DIN-rail Mounting |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Operation Humidity | 5-95% relative humidity |
| Standards and Certifications | EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments; Trackside: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus; Environmental: NEMA TS2, Traffic Controller Assemblies with NTCIP Requirements; AREMA; Communications and Signals manual; Marine: DNV rules for classification - Ships and offshore units; Safety: EN/IEC/UL 61010-1, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements, EN/IEC/UL 61010-2-201, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-201: Particular requirements; Ingress protection: IP40; Corrosive gases: IEC 60068-2-60; Telcordia; MIL-HBDK-217F |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Weight | 1100 gr |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | Westermo configuration tool WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, SSHv2 and Telnet, Local and Central Authentication (RADIUS/TACACS+), Role Based Access Control (RBAC), Password Compliance Policy, SNMPv1/v2c/v3, Secure Copy (SCP) for remote file upload and download, Local file management (via HTTP, FTP, TFTP and SCP), Load/save files from/to external memory., Configuration and Deployment using external memory, Tech support button, Flexible alarm and event handling system, RFC5424/RFC3164 Syslog (log files and remote Syslog server), Port monitoring |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
